Front Bumper Bracket: Service and Repair

51 11 701 Replacing Left Or Right Bracket For Front Bumper

Necessary preliminary tasks: Bumper trim removed.
- If necessary, remove front bumper trim







Version up to 10/2003:

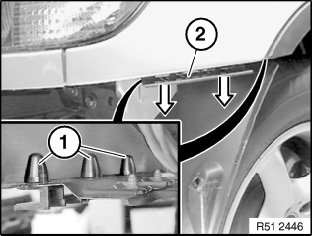

Compress catches (1) and detach bracket (2) towards bottom.







Installation:

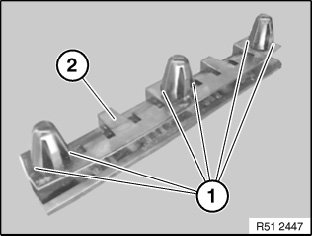

Catches (1) on bracket (2) must not be damaged.







Version from 10/2003:

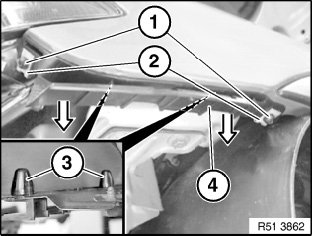

Release screws (1) and detach metal nuts (2).
Compress catches (3) and detach bracket (4) towards bottom.







Installation:

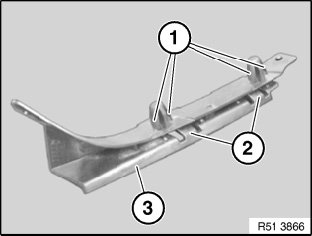

Catches (1 and 2) on bracket (3) must not be damaged.
