Replacing Panel For On-Board Monitor

Replacing Panel For On-board Monitor (control Panel, Widescreen)

Special tools required:
- 12 7 192

Remove complete on-board monitor (widescreen).

CAUTION:
Risk of damage.
Place on-board monitor (widescreen) on special tool 12 7 192 (antistatic mat) and earth/ground.

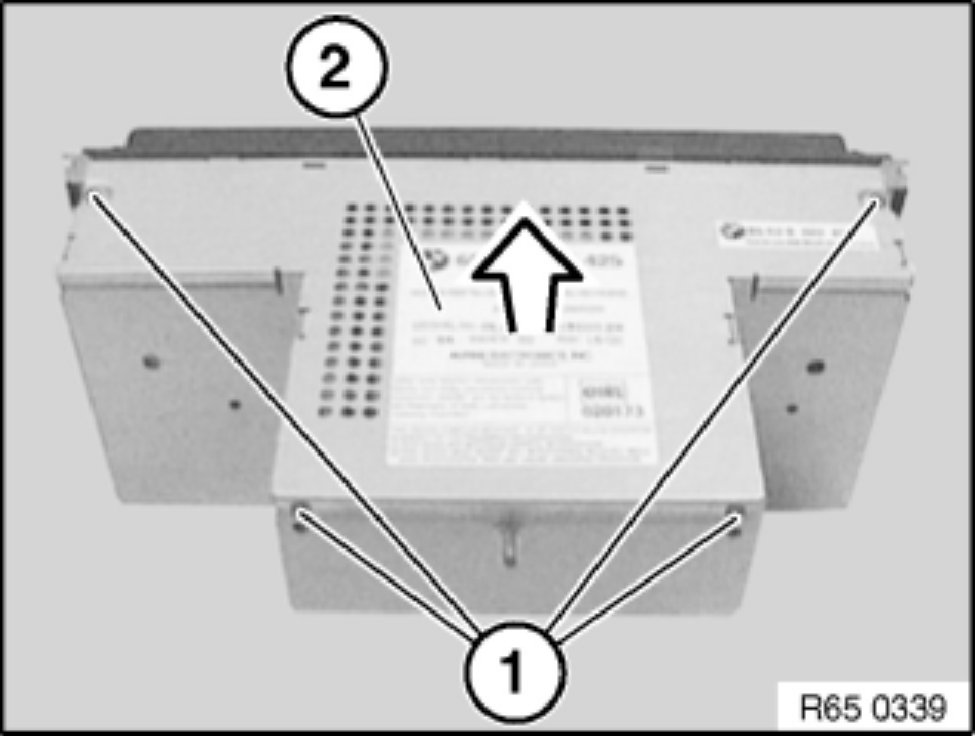

Release screws (1).
Remove upper housing section (2) in direction of arrow.

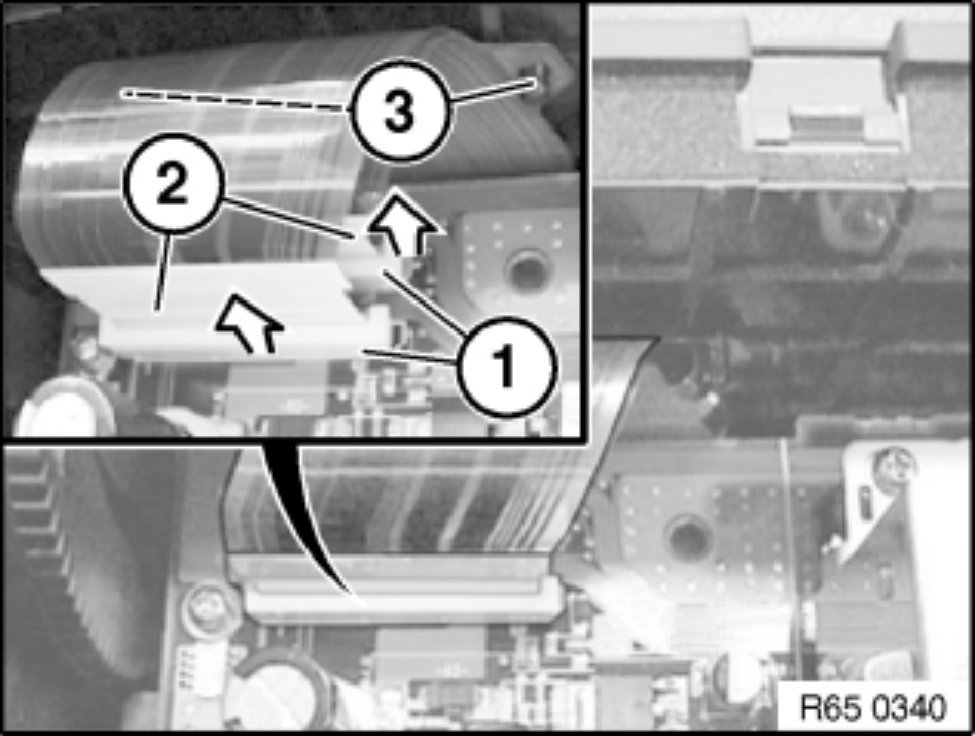

Raise locks (1) in direction of arrow.
Detach ribbon cables (2) and feed out at catches (3).

Installation:
Make sure ribbon cables are correctly seated.







NOTE: Carefully feed out ribbon cables when removing panel for on-board monitor (control panel).

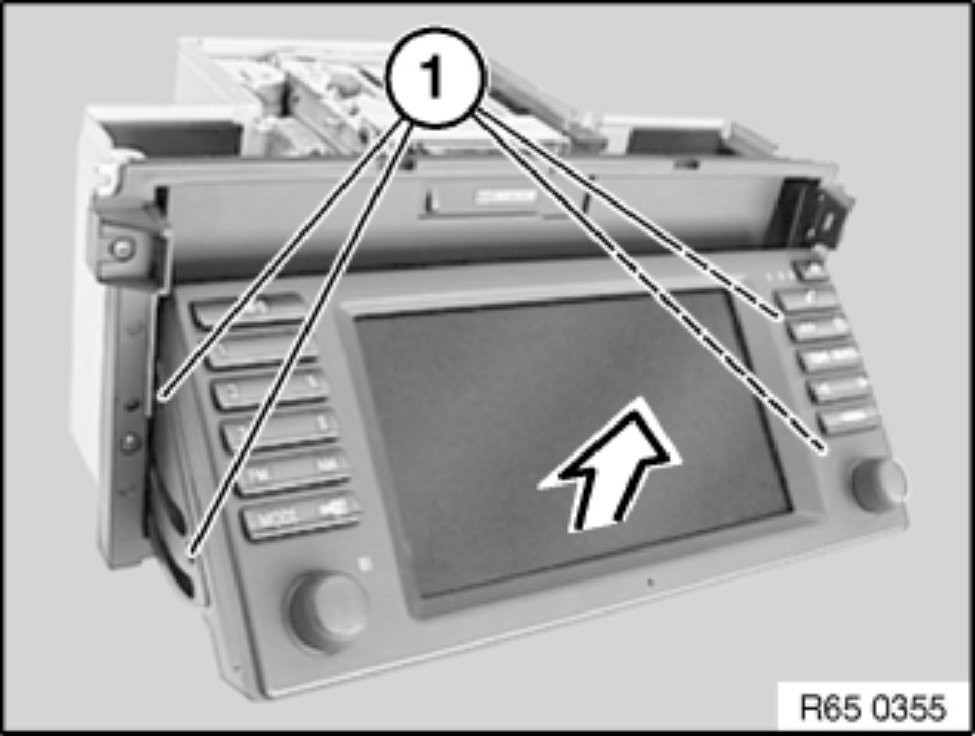

Release screws (1).
Remove panel for on-board monitor (control panel) in direction of arrow.
