Replacing Complete On-Board Monitor (Wide screen)

Removing And Installing Complete On-board Monitor (Widescreen)

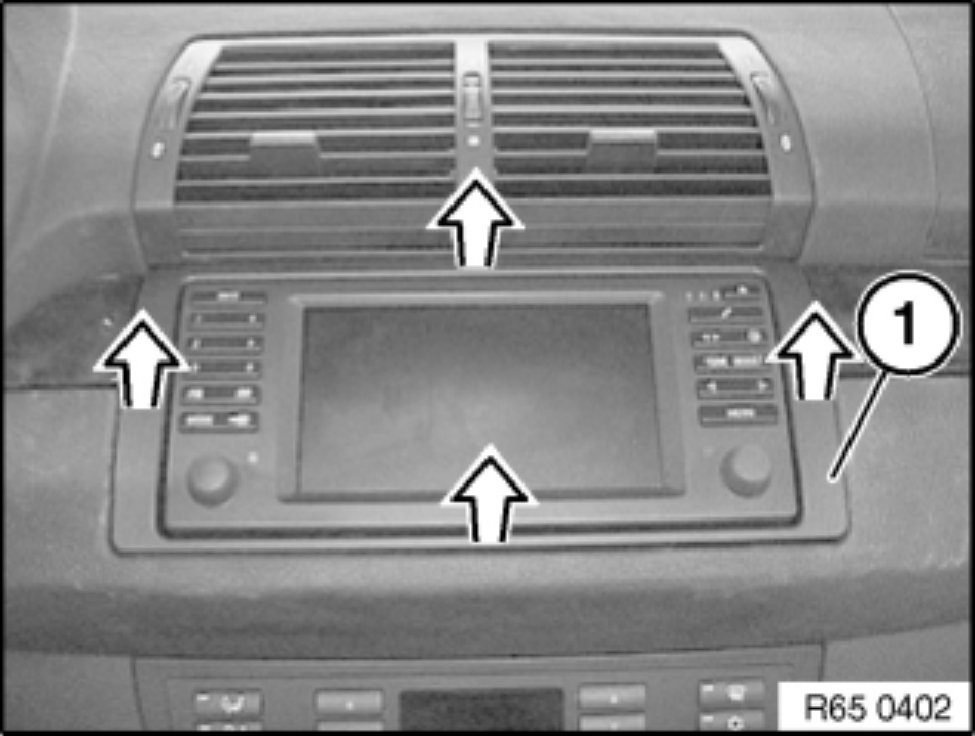

Unclip frame of on-board monitor (1) in direction of arrow and remove.

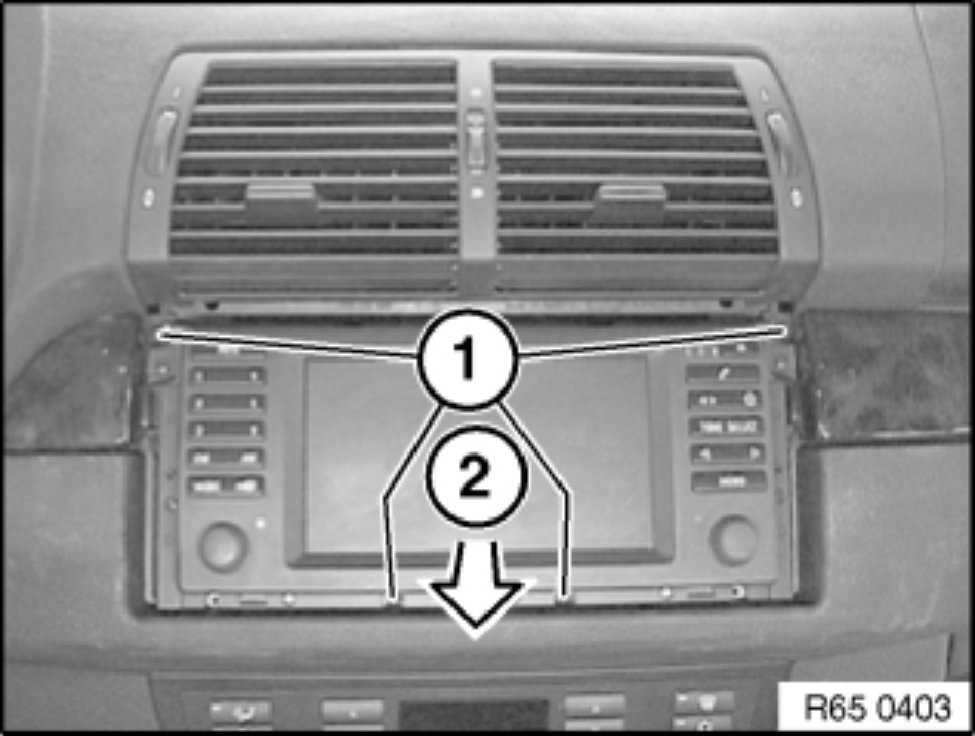

Loosen screws (1).
Pull out complete on-board monitor (2) in direction of arrow.

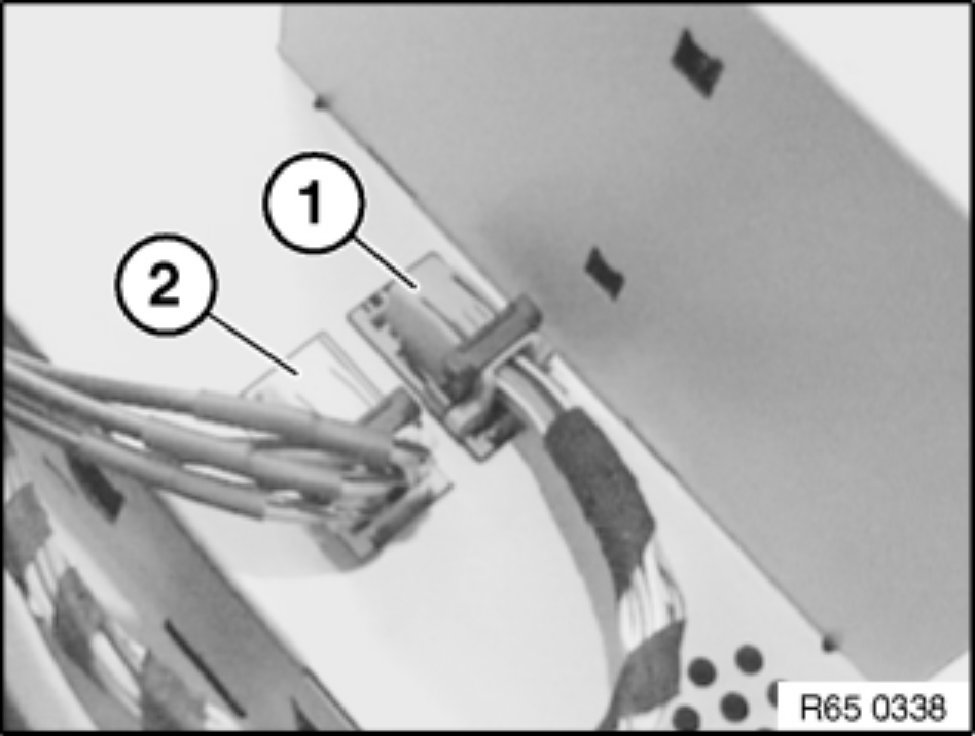

Unlock plug connections (1) and (2) and disconnect.
Remove complete on-board monitor.
