Replacing Speaker (Rear Both Door)



Removing And Installing/Replacing Speaker (rear Left Or Right Door)

Remove rear left or right door trim panel.

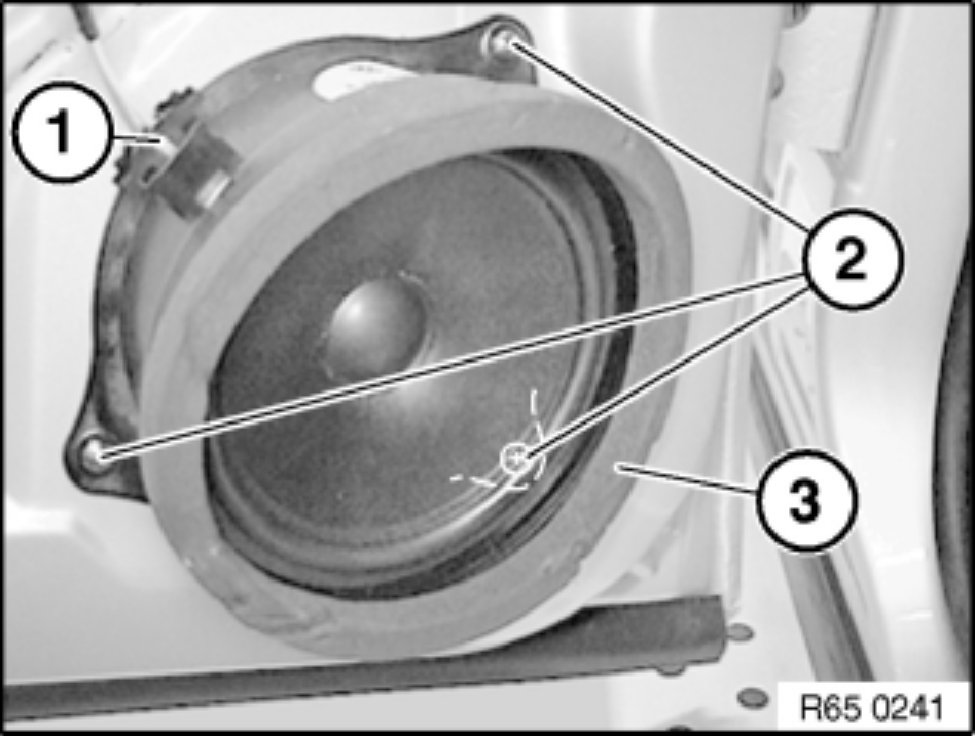

Unfasten plug connection (1).
Release screws (2) and remove speaker (3).
