Replacing Speaker (Mid-Range Speaker)



Removing And Installing/Replacing Speaker (Mid-Range Speaker)

Remove rear left or right door trim panel.

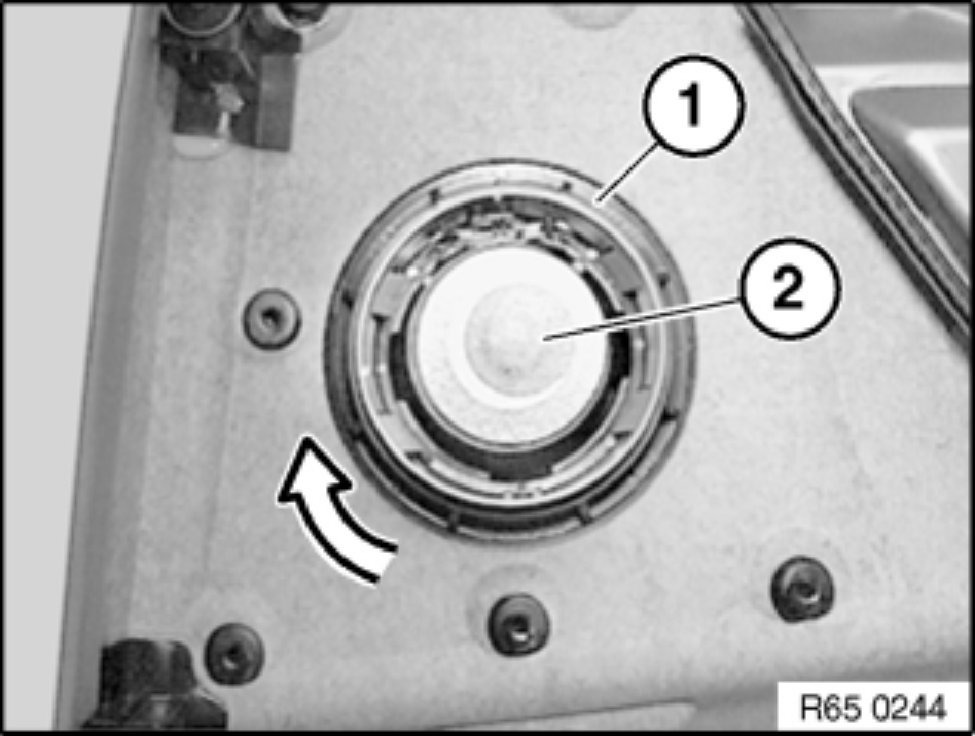

Release screwed ring (1) in direction of arrow and remove mid-range speaker (2).
