Removing and Installing / Replacing Radio Receiver (with Board Monitor)

Removing And Installing/Replacing Radio Receiver (With Board Monitor)

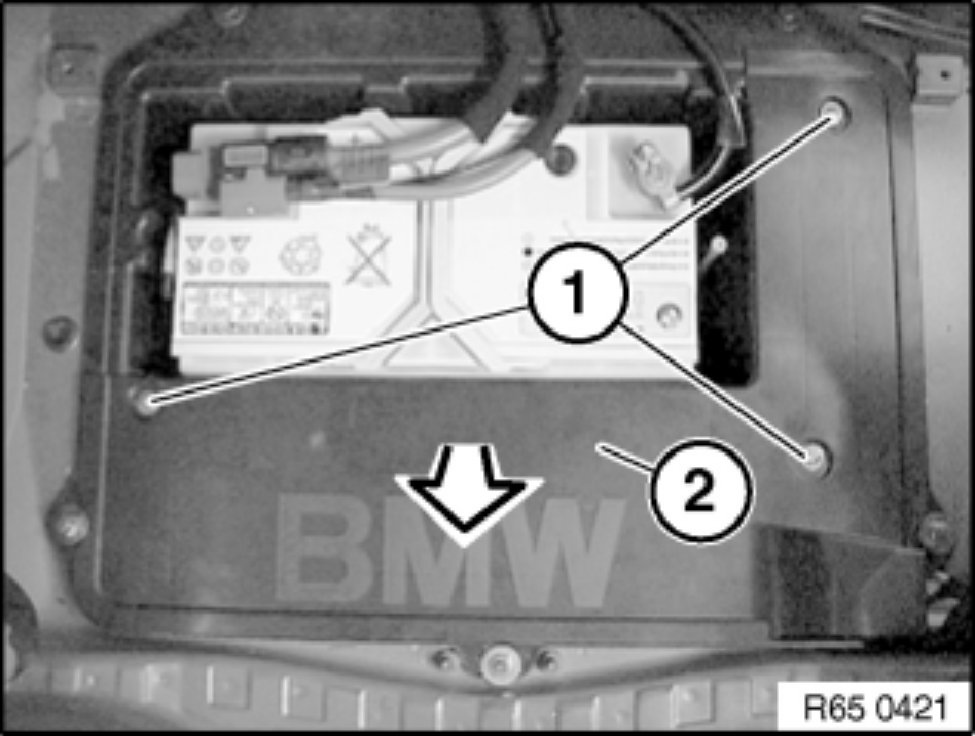

Loosen screws (1).
Remove multifunction tray (2) towards top.

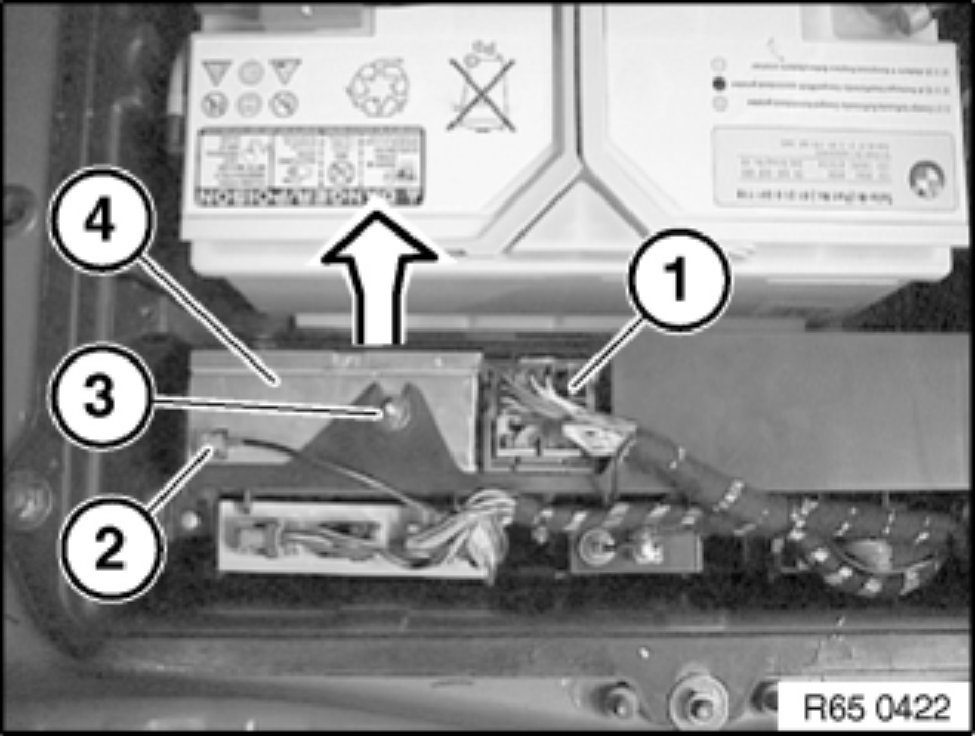

Unlock plug connections (1) and (2) and disconnect.
Loosen nut (3).
Feed out radio receiver (4) in direction of arrow and remove.




Installation:

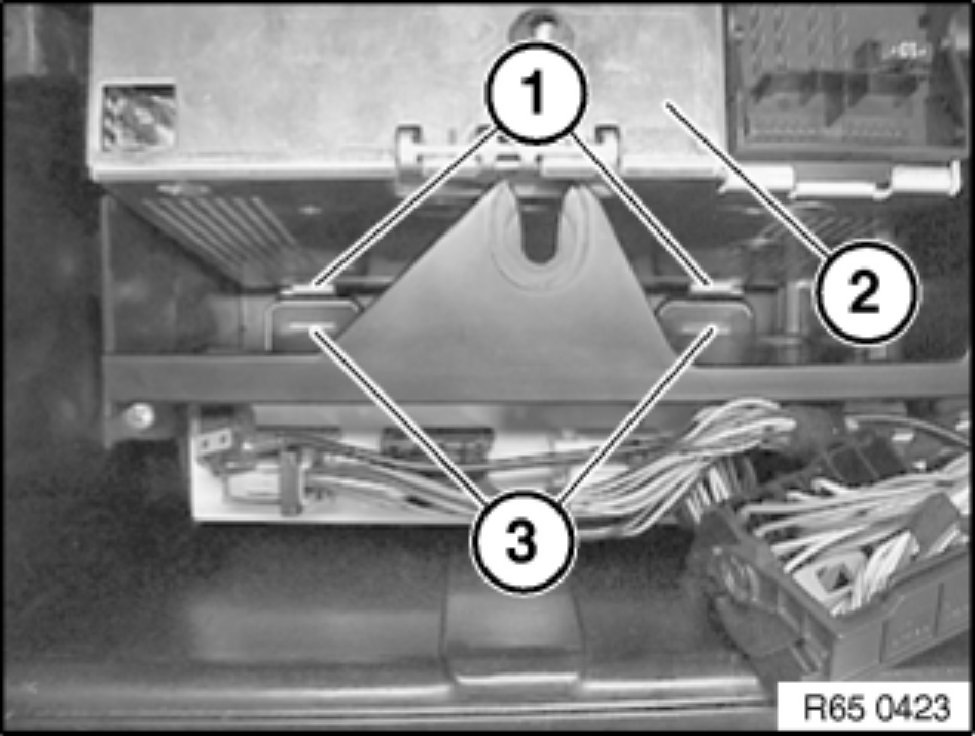

Metal tabs (1) of radio receiver (2) must be seated in mountings (3).
