Amplifier: Service and Repair

Removing And Installing/Replacing Amplifier

Necessary preliminary tasks:
- Remove luggage compartment floor trim panel.
- Remove flap in luggage compartment trim panel on left
- Detach left cover
- If necessary, remove transmit-receive unit
- If necessary, remove navigation computer with CD drive
- If necessary, remove CD changer
- If necessary, remove warning triangle
- If necessary, remove storage tray for emergency wheel

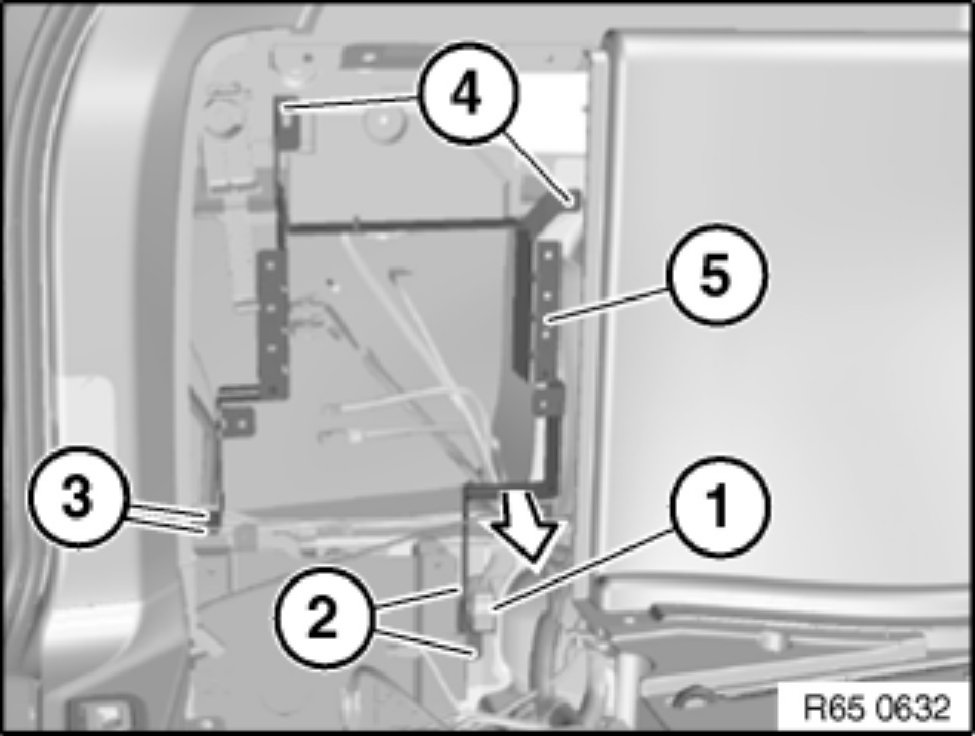

Turn plug connection block (1) approx. 45 degrees and unclip from equipment carrier (5).
Unscrew nuts (2).
Remove screws (3) and (4).
If necessary, unlock associated plug connections, disconnect and remove equipment carrier (5) in direction of arrow.

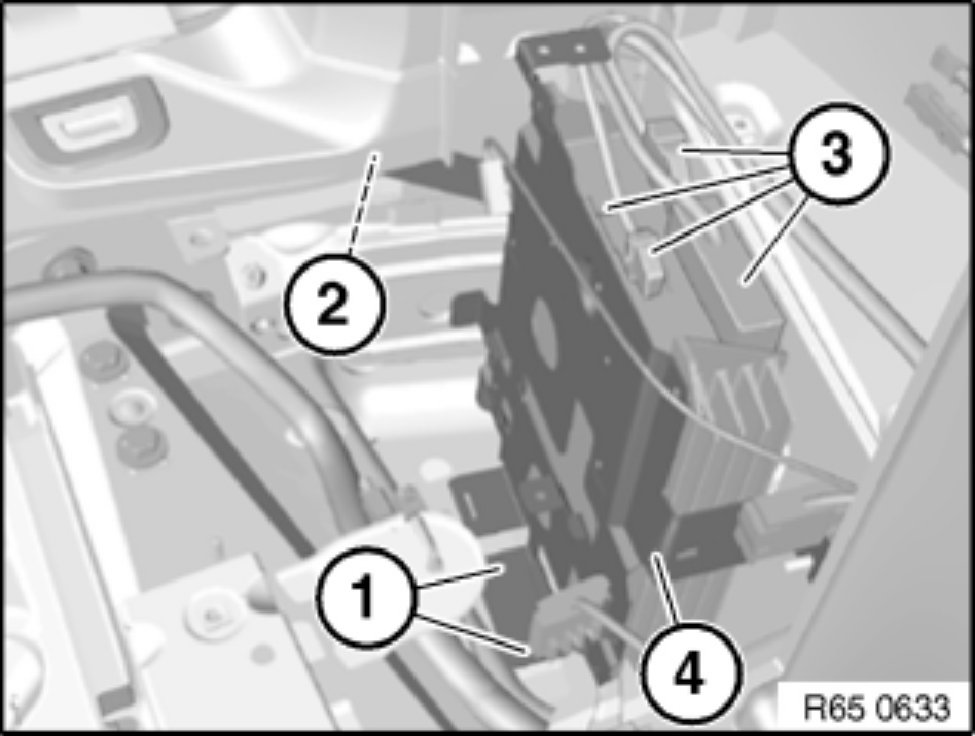

Unlock plug connections (3) and disconnect.
Release nuts (1) and screw (2).
Remove complete amplifier holder (4) and set down.

Replacement:

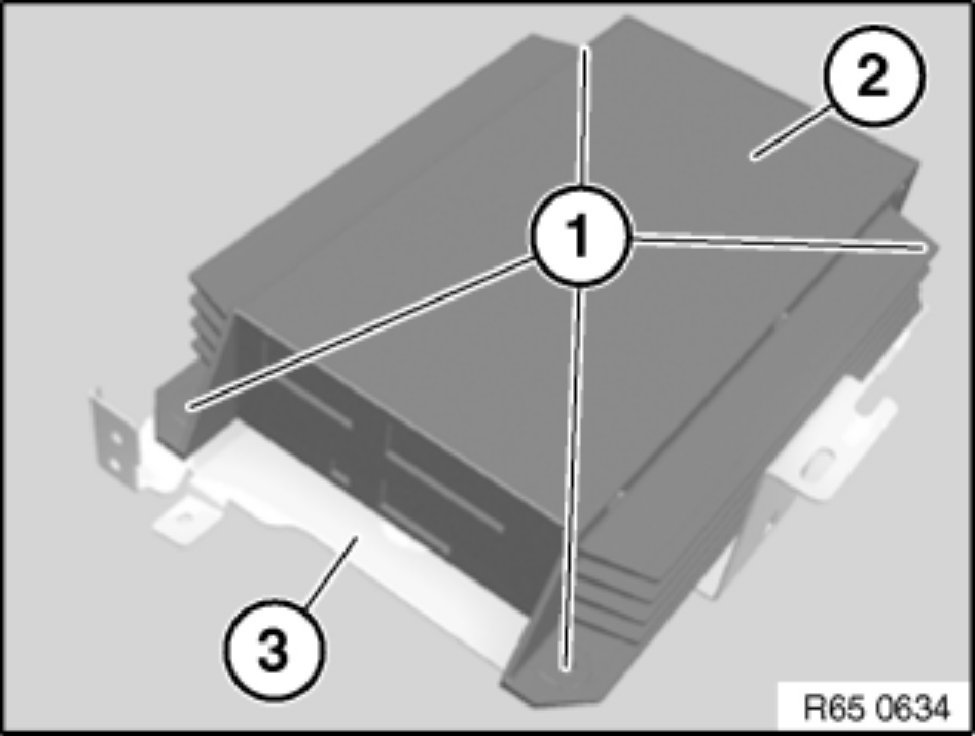

Release screws (1) and remove amplifier (2) from amplifier holder (3).

When replacing amplifier for Top hi-fi system:
Carry out programming/coding.
