Global Positioning System Antenna: Service and Repair

Removing And Installing/Replacing Antenna Of Global Positioning System (GPS)

Remove rear spoiler lower section.

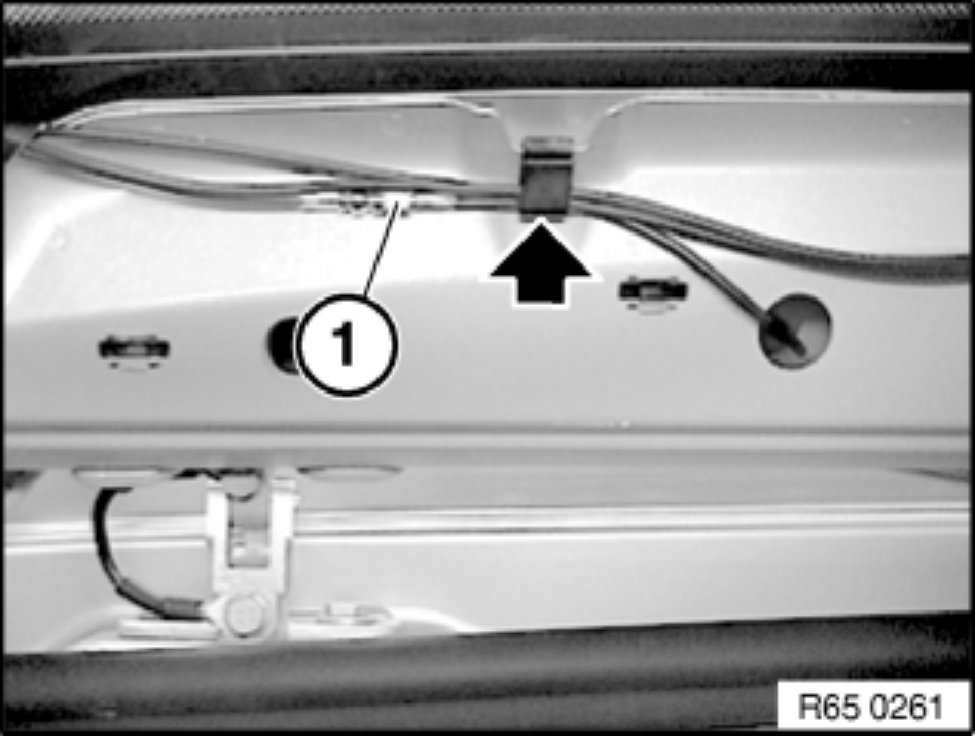

Disconnect antenna plug (1) and unclip antenna cable.







Pull out rubber grommet (1).

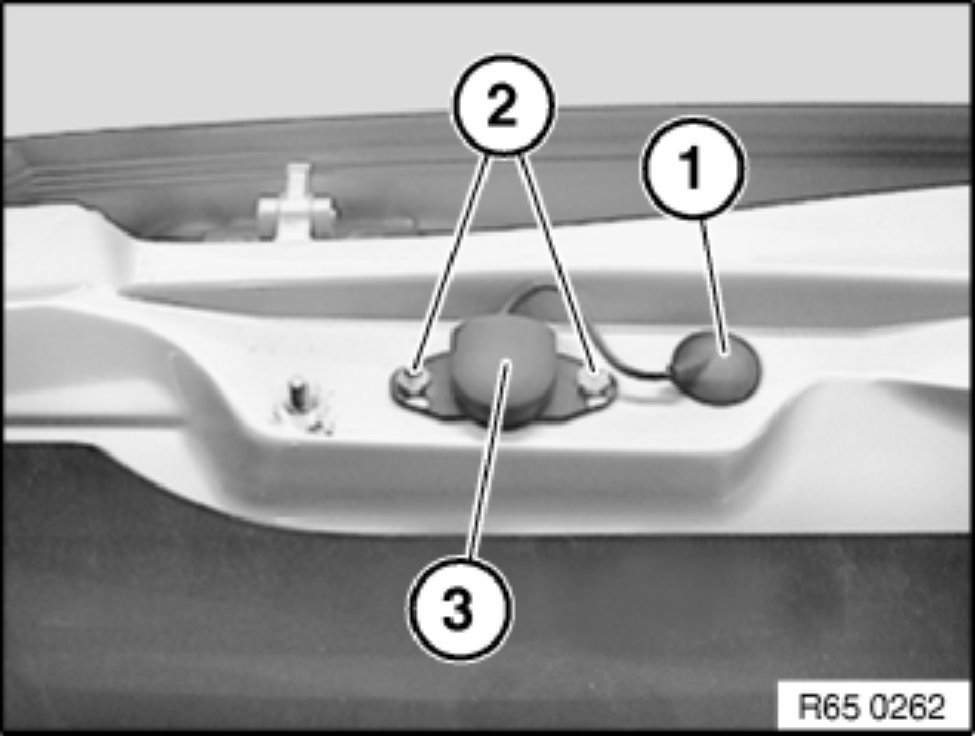

Release nuts (2) and remove antenna of Global Positioning System (3).
