Replacing A Front Ultrasonic Transducer

Removing And Installing/Replacing A Front Ultrasonic Transducer

Version up to 10/2003:

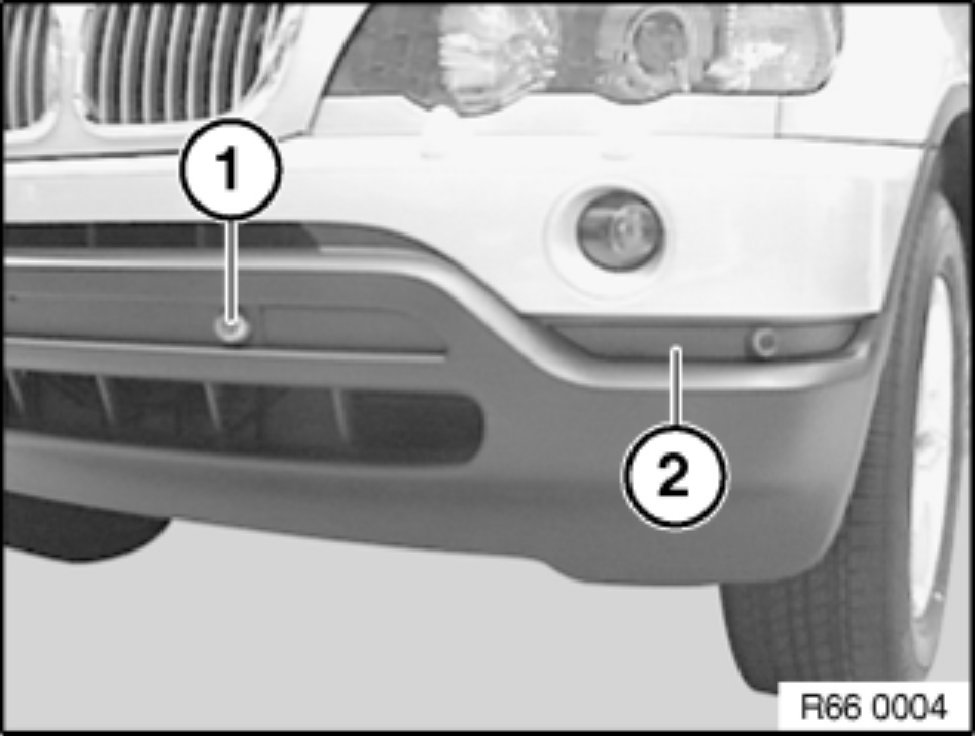

In bumper, center:
Lever out ultrasonic transducer (1) including holder.

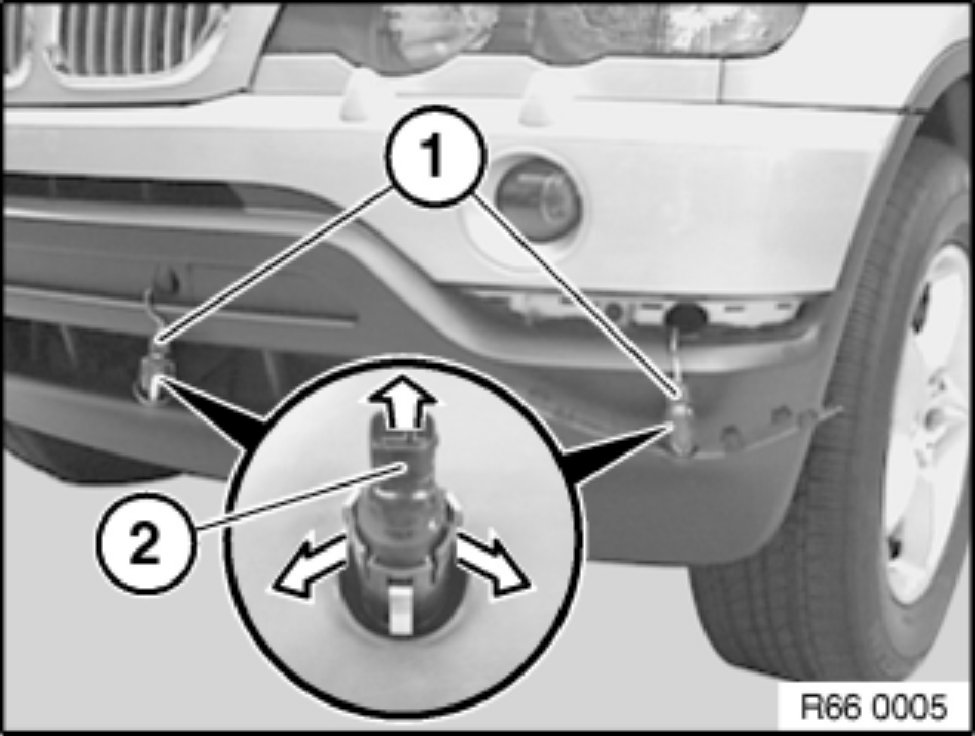

In bumper, side:
Unclip side cover (2).







Unfasten plug connection (1) and disconnect.
Unclip ultrasonic transducer (2) and pull out of holder.

Build date from 10/2003:

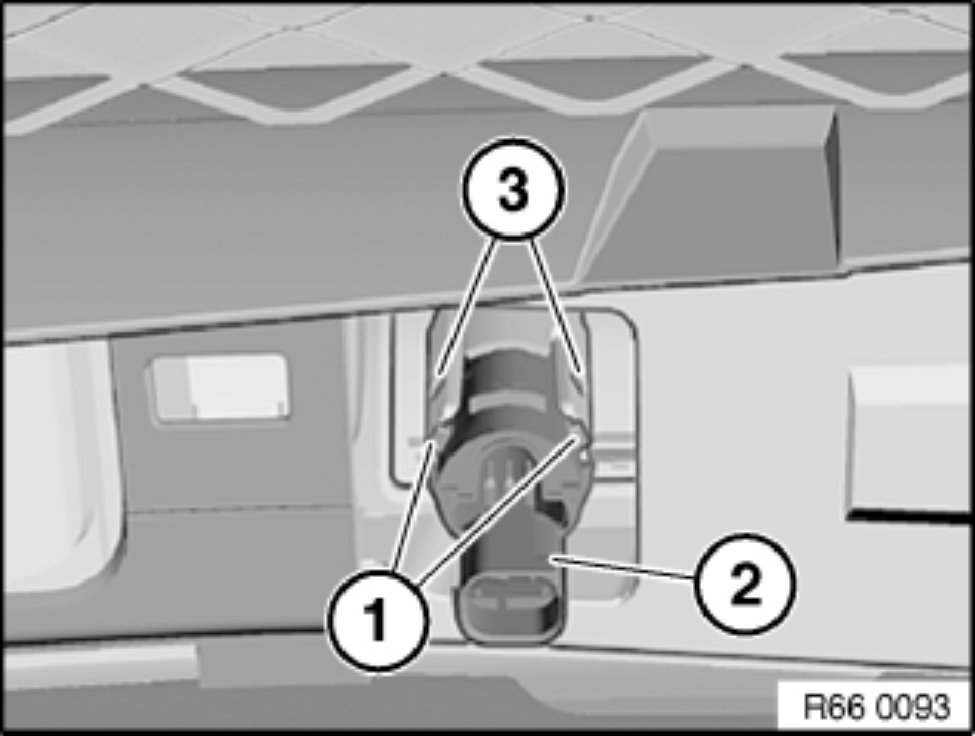

Necessary preliminary tasks:
- Remove front bumper trim.







Unlock catches (1) in direction of arrow and pull ultrasonic transducer (2) out of holder (3).

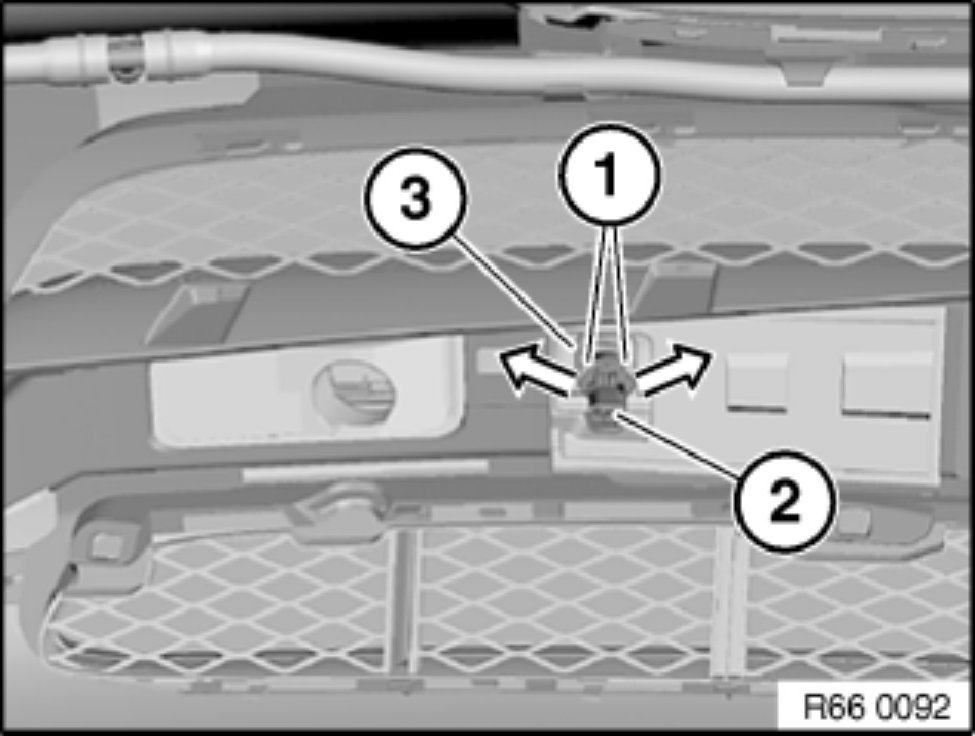

Installation:







Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
