Alarm Horn: Service and Repair
Replacing Horn (Anti-Theft System)

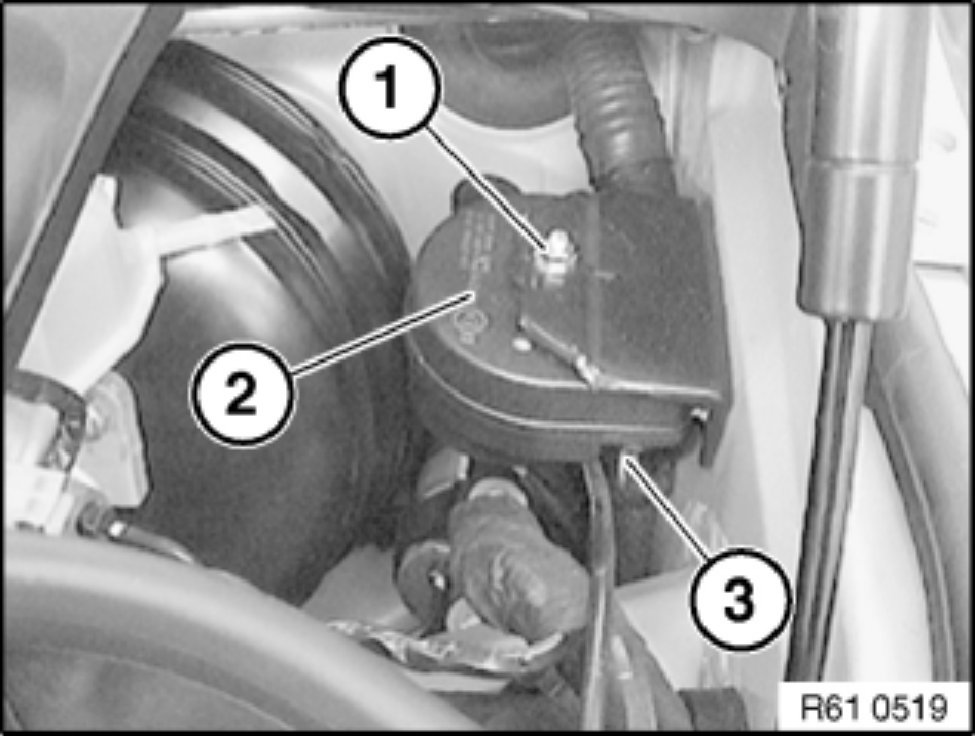

Unscrew nut (1).
Remove horn (2) from fixture and disconnect plug connection (3).
Remove horn (2).
