Replacing Antenna Amplifier (Side Window)

Removing And Installing/Replacing Antenna Amplifier (Side Window)

Remove window cavity cover strip, inside, for door window, rear left.

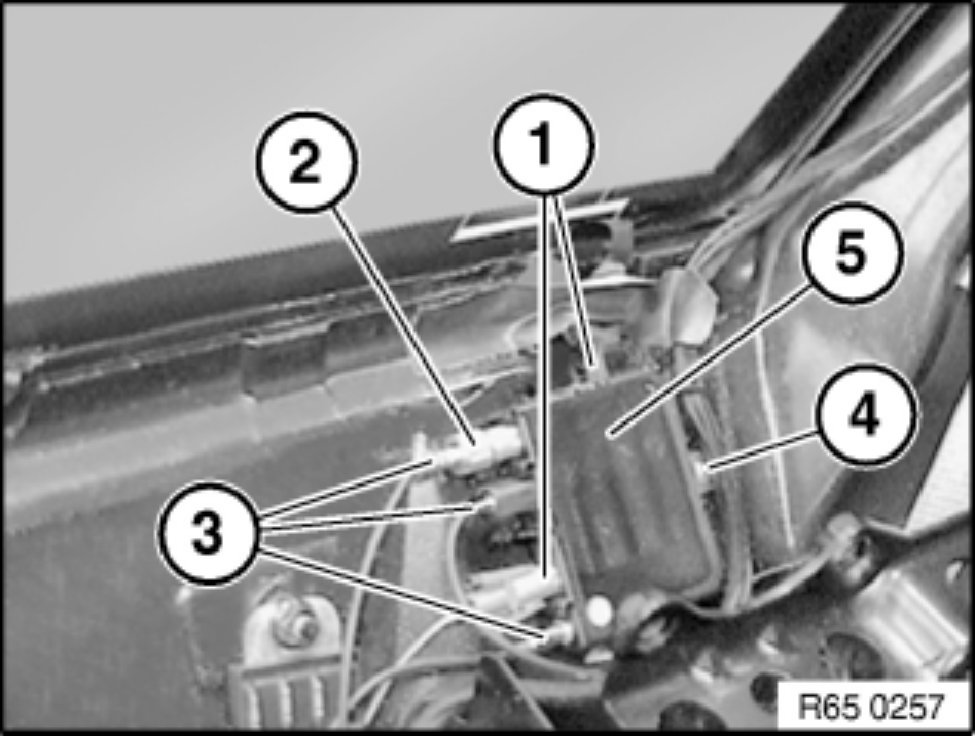

Disconnect plug connection (1).
Release knurled nut (2) and disconnect antenna plug (3).
Release screw (4) and remove antenna amplifier (5).
