Replacing Antenna Amplifier (Rear Lid Upper Section)

Removing And Installing/Replacing Antenna Amplifier (Rear Lid Upper Section)

Remove top trim for rear lid upper section.

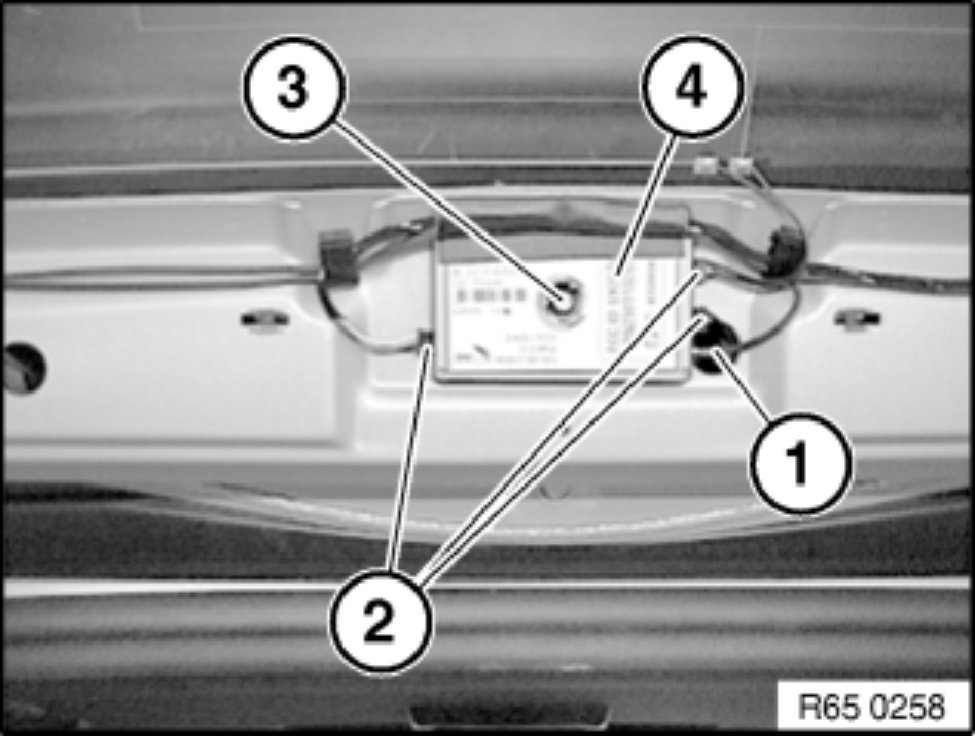

Disconnect antenna connector (1).
Disconnect plug connections (2).
Release screw (3) and remove antenna amplifier (4).
