Home >> BMW >> 2006 >> M6 Coupe (E63) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Signal and Warning Functions >> Horn >> Horn (M6_S85_Coupe Up to 09/05)

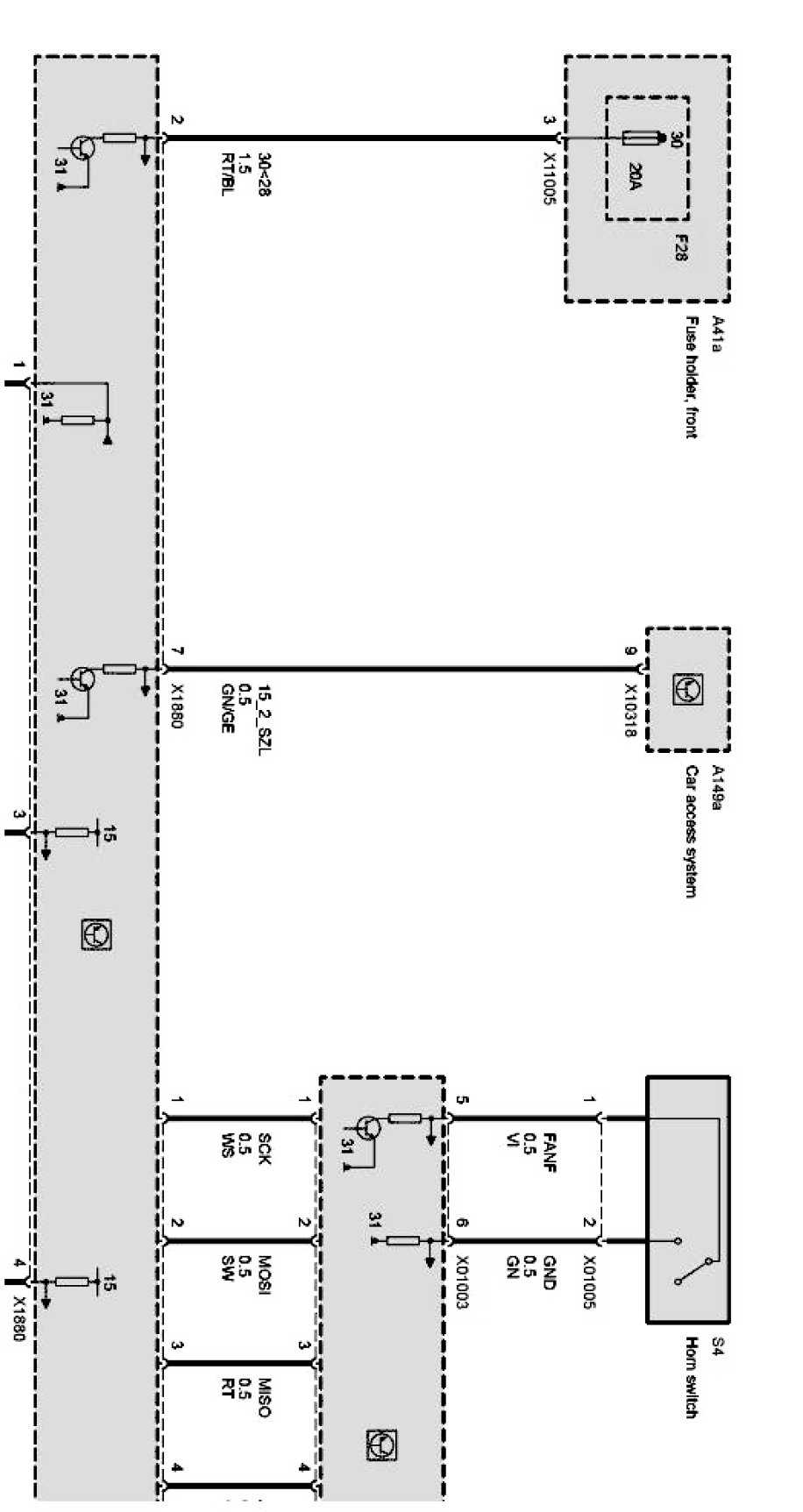

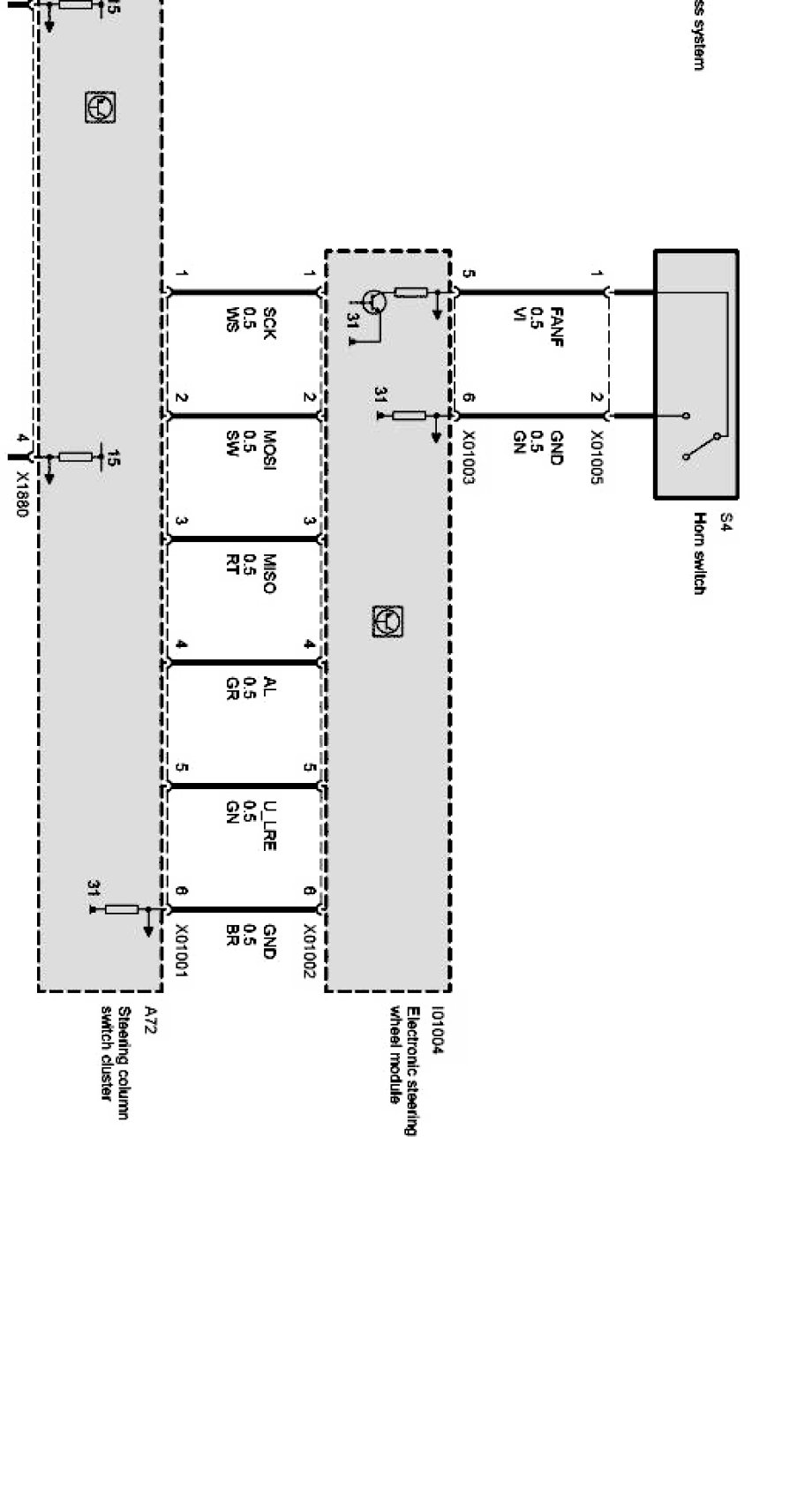

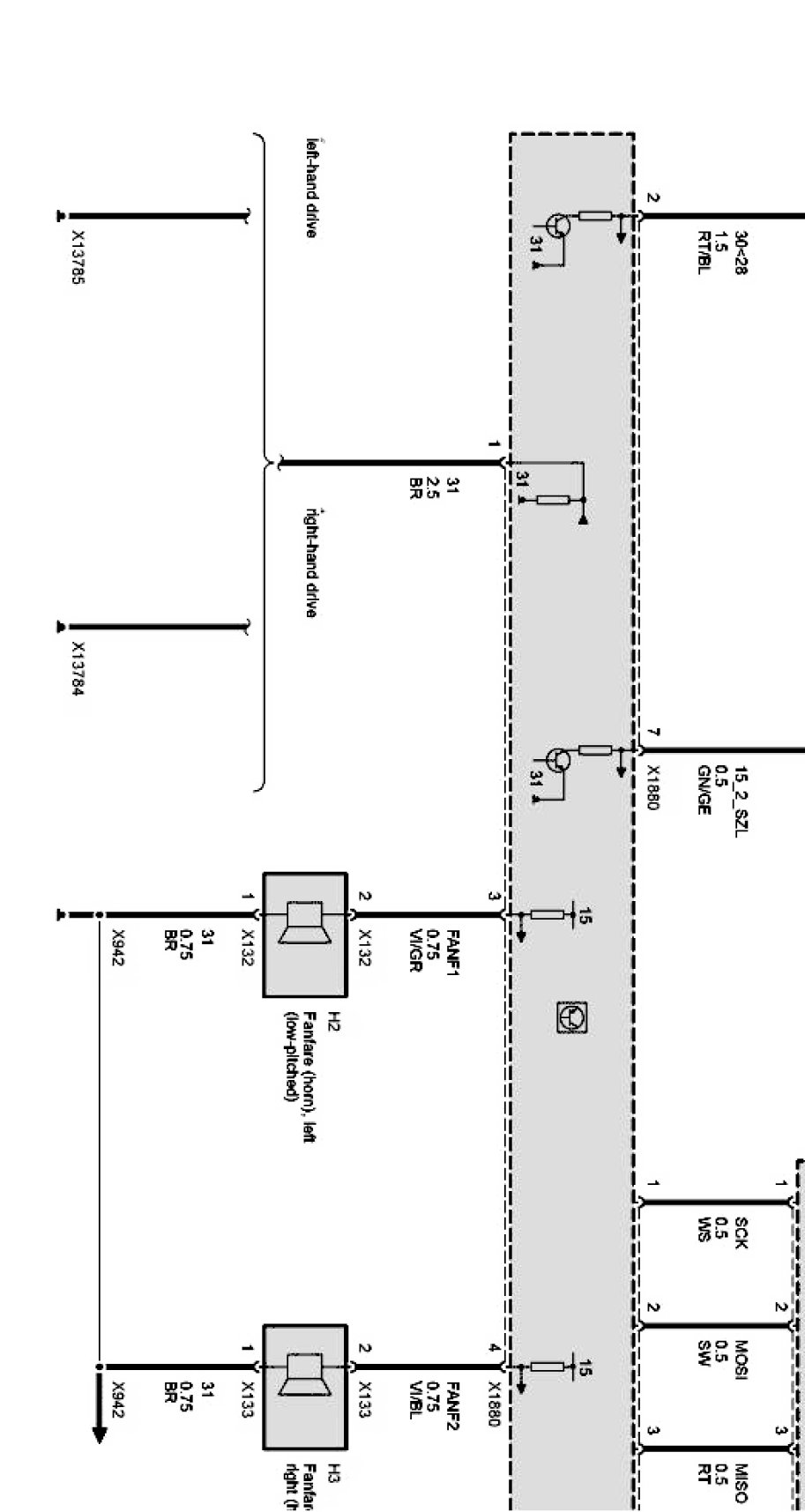

Horn (M6_S85_Coupe Up to 09/05)
