Removing and Installing/Replacing Drive With Gear (Rear) For Slide/Tilt Sunroof

67 61 007 - Removing and installing/replacing drive with gear (rear) for slide/tilt sunroof





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Detach cover for auxiliary brake light (1) on both sides in direction of arrow and unclip at points (2).
Feed cover for auxiliary brake light (1) in direction of arrow out of roofliner (3) and remove.





Installation Note:
Retaining bar (1), clips (2) and guides (3) must not be damaged.
Make sure cover for auxiliary brake light (4) is correctly seated.





Note:

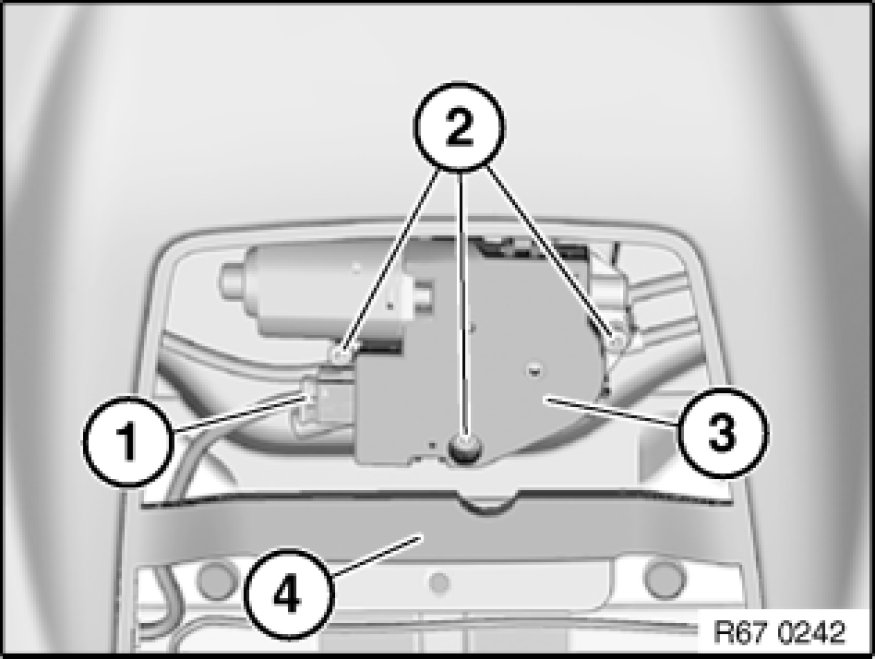

Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect.
Release screws (2), tightening torque 54 13 1AZ 54 13 Electric Components (of Sun Roof).

Note:
Screws (1) are microencapsulated.

Feed drive with gear for actuating slide/tilt sunroof (3) out of roofliner (4) and remove.





Installation Note:
Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).





Installation Note:
- Initialize slide/tilt sunroof Testing and Inspection
