Removing and Installing/Replacing Drive With Gear (Front) For Actuating Slide/Tilt Sunroof

67 61 005 - Removing and installing/replacing drive with gear (front) for actuating slide/tilt sunroof





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove front roofliner trim 51 44 ... - Removing and installing front roofliner trim





Note:

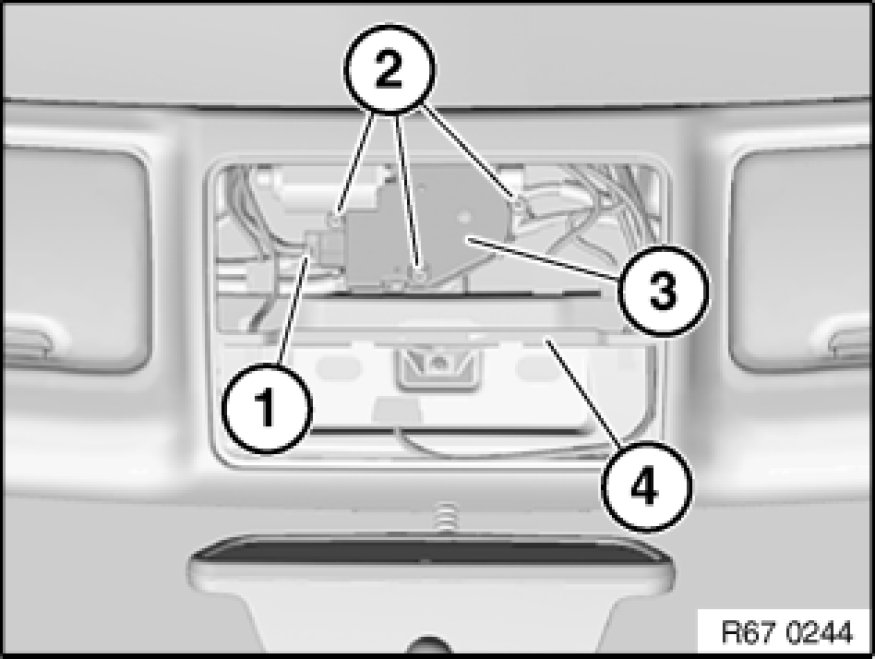

Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Unfasten plug connection (1) and disconnect.

Release screws (2), tightening torque 54 13 1AZ 54 13 Electric Components (of Sun Roof).

Note:
Screws (1) are microencapsulated.

Feed drive with gear for actuating slide/tilt sunroof (3) out of roofliner (4) and remove.





Installation Note:
Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).





Installation Note:
- Initialise slide/tilt sunroof Testing and Inspection.
