Wiper Arm: Service and Repair

61 61 100 Removing And Installing/Replacing Both Windshield Wiper Arms

Special tools required:
- 61 6 060

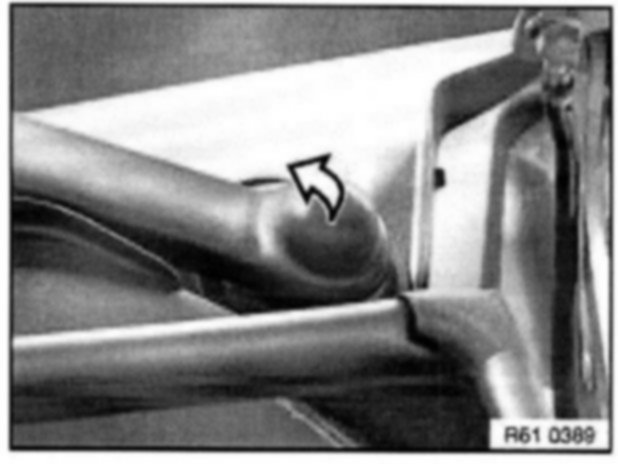

Take off cap.

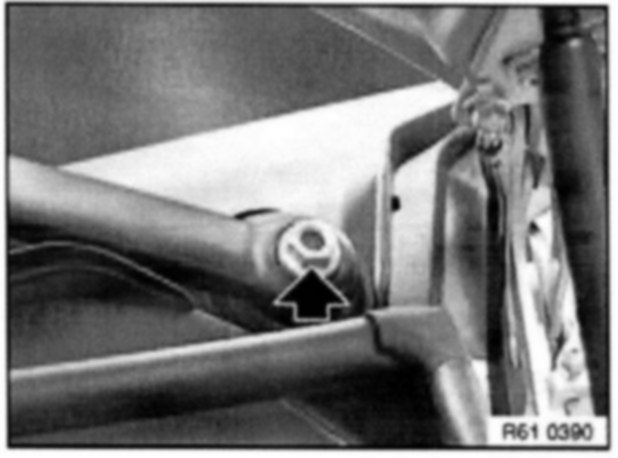

Unfasten nut.







CAUTION: Do not bend windshield wiper arm during removal (risk of breakage).

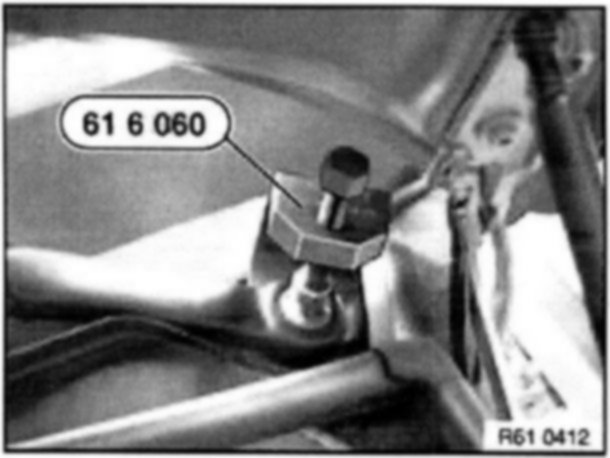

Detach windshield wiper arm with special tool 61 6 060







Installation:

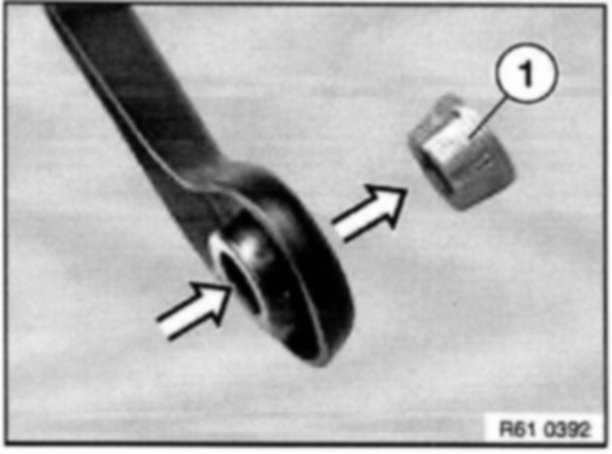

Check that sleeve (1) is firmly seated.
If sleeve (1) is loose, it must be replaced.

A sleeve (1) firmly seated in the windshield wiper arm can be reused.







Windshield wiper arm with firmly seated sleeve (1):

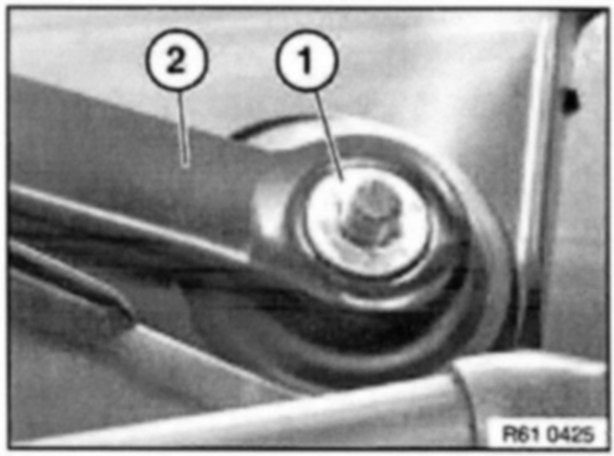

Return windshield wiper system to rest position. Push wiper arm (2) with firmly seated sleeve (1) onto shaft and tighten down.

Check setting of wiper arm (2).
To correct setting, replace sleeve (1).







Windshield wiper arm with new sleeve (2):
Return windshield wiper system to rest position.

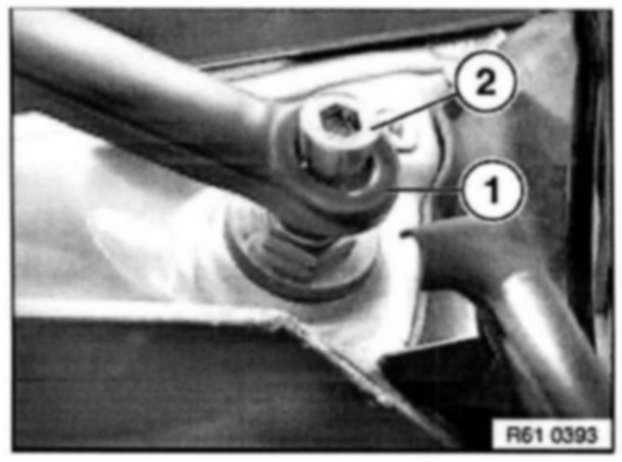

Push wiper arm (2) with sleeve (1) onto shaft and tighten until hand-tight.







Set position of relevant wiper arm to rest position and then tighten down wiper arm.

Adjustment measurements:
Measurement 1[mm] Measurement 2 [mm]
24 44
