Replacing Water Reservoir For Windshield Washer System (M3)

Replacing Water Reservoir For Windshield Washer System (M3)

Drain fluid tank for windshield washer system
Remove front bumper.
Remove right fog lamp.

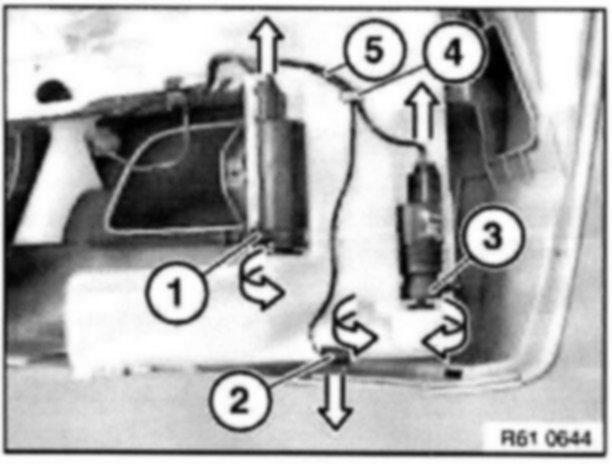

Unhook wiring harness (5) from mounting (4).
Turn windshield washer pump (3) in direction of arrow, lift out of water reservoir for windshield washer system and place to one side.
Turn level switch for windshield washer system (2) in direction of arrow, remove downwards from water reservoir for windshield washer system and place to one side.

Version with headlight cleaning system:
Turn washer pump of headlight cleaning system (1) in direction of arrow, lift out of water reservoir for windshield washer system and place to one side.

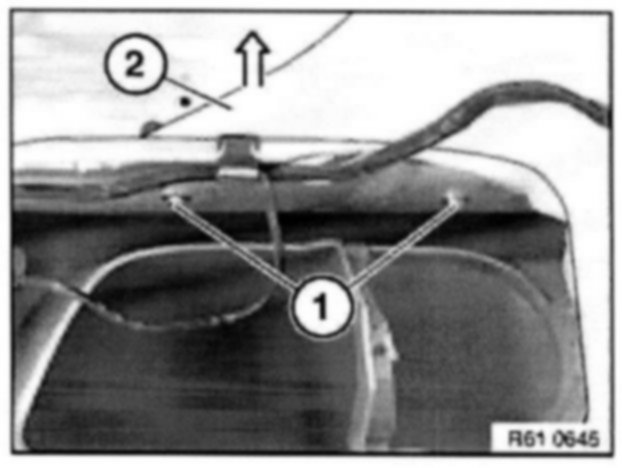

Release screws (1) and remove water reservoir for windshield washer system (2) in direction of arrow.
Remove cover and strainer from water reservoir for windshield washer system.

Installation:
Replace sealing rings/strainers on washer pumps.
Coat sealing rings of washer pump with anti-friction agent.
Make sure hoses are laid without kinks.
Fill fluid tank for windshield washer system.
