Windshield Washer Pump: Service and Repair

Removing And Installing/Replacing Windshield Washer Pump (M3)


NOTE:
Drain fluid tank for windshield washer system
Remove cover on right.

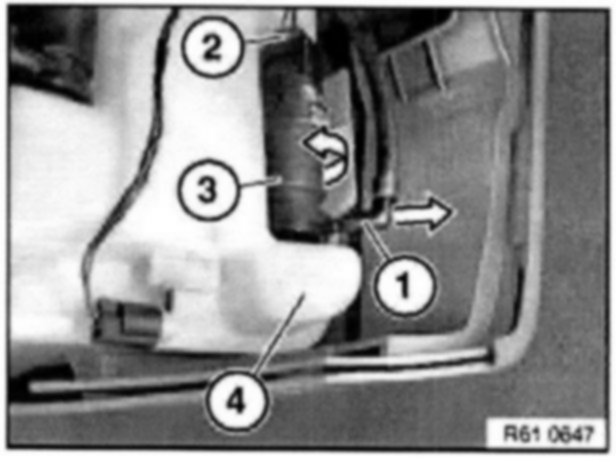

Detach hose (1) in direction of arrow from windshield washer pump (3).
Disconnect plug connection (2).
Turn windshield washer pump (3) in direction of arrow, lift out of water reservoir for windshield washer system (4).

Installation:
Replace sealing ring/strainer of washer pump.
Coat sealing ring of washer pump with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windshield washer system.
