Removing and Installing/Replacing Window Cavity Cover Strip on Inside Rear Door

51 22 330 Removing And Installing/Replacing Window Cavity Cover Strip On Inside Rear Door

Remove rear door trim.







NOTE: Do not damage cover (2) when removing window cavity cover strip (1).

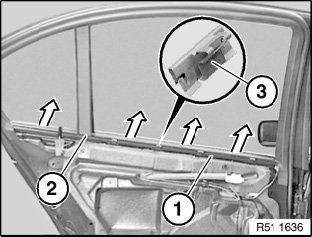

Remove window cavity cover strip (1) towards top.

Installation:
If necessary, remove faulty clips (3) from inner door panel and replace.







Installation:

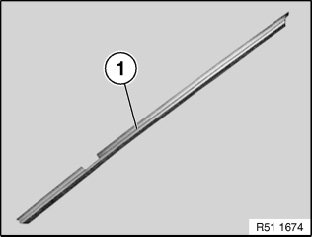

Prior to installation, coat window cavity cover strip (1) with soapy solution (washing-up liquid).







Installation:

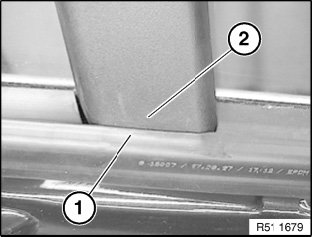

Window cavity cover strip (1) must (as shown in illustration) be above cover (2) for door window frame.
