Replacing Electric Window Lift At Rear (Convertible) Left or Right

51 37 003 Replacing Electric Window Lift At Rear (Convertible) Left Or Right

Remove flat motor for rear window lift.







Release screws (1) and (2) and remove window (3) from window lift (4).







Installation:
Initial adjustment of pretension:

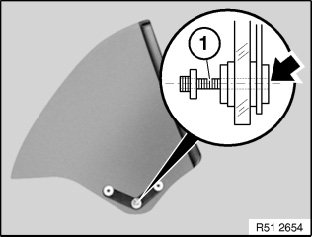

Preset outer adjusting screw (1) until flush.
Function test.
Adjust rear side window.
