Centering Mount For Propeller Shaft

Remove/Replacing Centering Mount For Propeller Shaft
Remove propeller shaft.





Fill centering bore (1) completely with viscous grease.

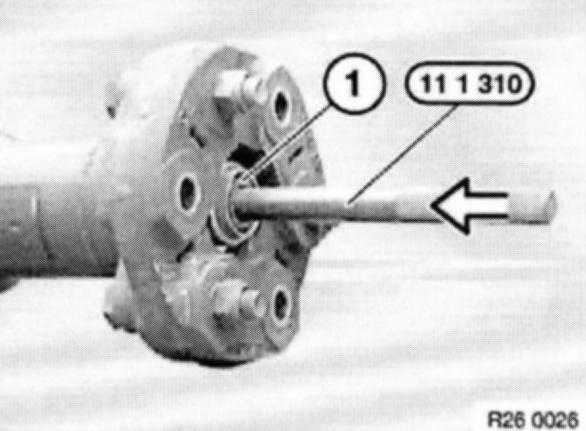

Drive special tool 11 1 310 with a plastic hammer into centering bore.
The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

Note: To drive out the mount, you can also fill the centering bore with water instead of grease.





Remove grease/water from mount bore.

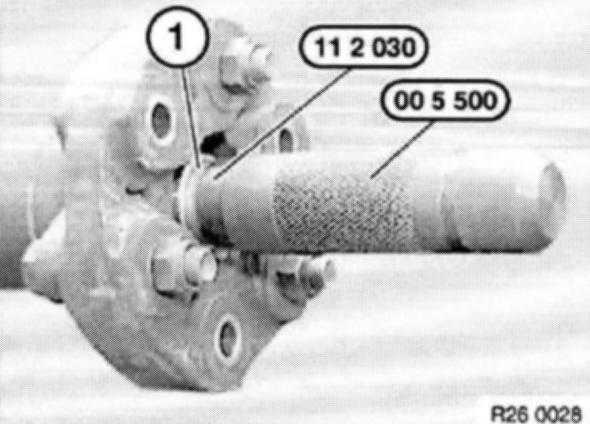

Drive centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft.

Grease centering mount.





Installation:
Observe protrusion A = 4 +2 mm of centering mount (1).
