Clutch Pedal Assembly: Service and Repair

Removing and Installing or Replacing Clutch Pedal

Remove trim panel for pedal assembly. For more info regarding this procedure please refer to: Body and Frame/ Interior Moulding/Trim/ Dashboard/Instrument Panel/ Service and Repair/ Removing and Installing/Replacing Trim. Service and Repair

If applicable, remove clutch switch.

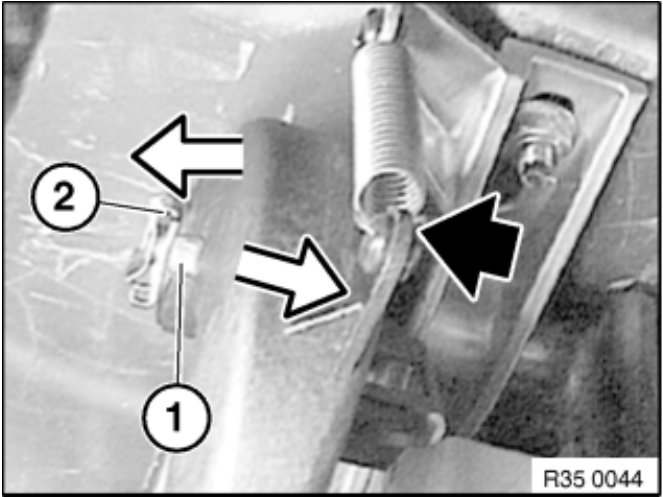

Disconnect return spring.

Press bolt ends (1) together and remove bolt.

Remove retainer (2) and detach clutch pedal from bearing pedestal.






Installtion:

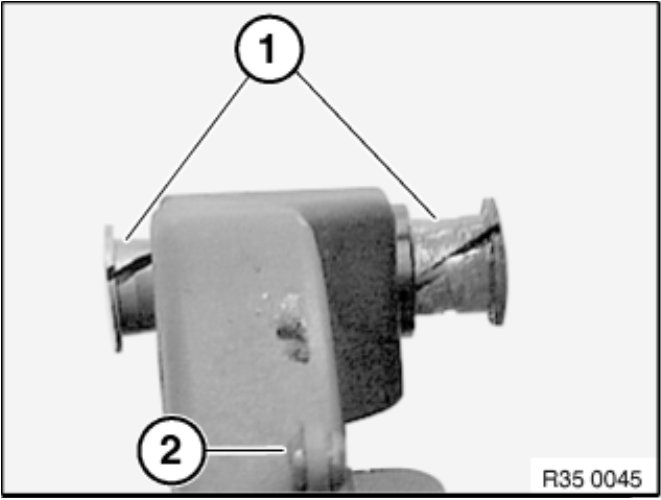

Check bearing brushes (1) and replace if necessary.

Lightly grease bearing bushes (1),

Replace rubber grommet (2) if necessary.
