Campaign SMG Control Unit Reprogramming
SI B23 05 04Manual Transmission
October 2005
Technical Service
This Service Information bulletin supersedes S.I. B23 05 04 dated September 2004.
PERFORM THE PROCEDURE OUTLINED IN THIS SERVICE INFORMATION ON ALL
AFFECTED VEHICLES BEFORE CUSTOMER DELIVERY OR THE NEXT TIME THEY
ARE IN THE SHOP FOR MAINTENANCE OR REPAIRS.
[NEW] designates changes to this revision
SUBJECT
Service Action: Reprogram the SMG Control Unit
MODEL
E46 M3 with the S54 Engine from start of production through August 3, 2004.
SITUATION
Simultaneous operation of the starter motor and the pump for the SMG hydraulic control unit may cause the switch contacts within the SMG relay to wear prematurely. If the relay fails as a result of this wear,
no hydraulic pressure will be available to the SMG transmission.
Subsequently, the unit will not be capable of shifting. The vehicle will operate in emergency mode and the fault lamp will be illuminated
in the instrument cluster.
AFFECTED VEHICLES
This Service Action involves E46 M3 vehicles with the S54 engine which were produced from start of production through August 3, 2004.
In order to determine if a specific vehicle is affected by this Service Action, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the
system, either proceed with the corrective action or take no further action.
The Chassis Number Ranges listed are only for informational purposes and are not to be considered as the only deciding factor.
CORRECTION
Using the DISplus or GT1, reprogram the SMG control unit with CD 39 or higher. Additionally, perform the Teach In and transmission adaptation procedures.
PROCEDURE
To reprogram the SMG control module:
^ Connect vehicle to the BMW approved battery charger.
^ Connect a DISplus or GT1 loaded with CD 39.0 or higher
^ Select: BMW Coding/Programming
^ Select: 5 Programming, then arrow right
^ Select: SMG Programming, then arrow right
^ Select: Exchange Control Unit, then arrow right
^ Display appears: First determine and then program basic control unit, then arrow right
^ Select: 1 Determine basic control unit, then arrow right. Automatic determination will be performed.
^ SMG, is the faulty control module still installed in the car? Select Yes
^ Start automatic determination? Select Yes.
^ Display appears: Compare chassis number displayed with number in the car. Chassis number ....... Do numbers correspond? Select Yes.
^ Part number basic control unit ......./....... are displayed. Scroll down.
^ Display appears: Following part numbers (basis control unit) can likewise be used. A new program version is also programmed for these part numbers. Scroll down.
^ At this point, data is stored in the tester for automatic determination. Arrow left.
^ Select: 2 Program basic control module
^ Display appears: Chassis number: Enter last 7 characters (2 letters, 5 numbers) Arrow right.
^ Enter the chassis number using the on screen keypad. Is the number correct? Select Yes
^ Disregard the next instruction: Install new basic control module. Arrow right.
^ Display will appear: There is a new program version and new data version for this control unit. Depending on the control unit, programming may last between 4-16 minutes. First programming and then data are programmed. The adaptation values must be cleared after programming. Arrow right.
^ The next screen appears: The control module can be programmed X times. Arrow right
^ Follow the command: Please enter kilometers/mileage.....Entry correct? Select Yes
^ Start automatic programming? Select Yes
^ Programming begins. Progress is indicated in the bar graph.
^ After successful programming, a message is displayed, Programming terminated. New control unit label required.
^ After programming, switch off ignition for at least 10 seconds.
To perform SMG Teach-In Transmission procedure:
^ From the DIS/GT1 diagnostics, select Function Selection
^ Select Service Functions
^ Select Drive, Transmission management SMG
^ Select: After replacing SMG 2 control module
Perform the 4 functions listed. After selecting each individual function, select Test Plan, then arrow right. Follow the on-screen prompts.
1. Teach In clutch valve characteristic values
2. Adapt compete transmission
3. Teach In clutch slip point
4. Offset, sensor longitudinal acceleration.
CAN faults will have been set as a result of the programming. Prior to a vehicle road test, ensure all faults are cleared.
LABEL INSTRUCTIONS
This Service Action has been assigned code number
423. After the vehicle has been checked, and corrected
if necessary, obtain a label (SD 92-267) and:
a. emboss your BMW dealer warranty number in
the middle of the label (1);
b. punch out code number 423 printed on the label
and,
c. affix the label to the B pillar as shown.
If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying
label could appear in the punched-out hole of the new label.

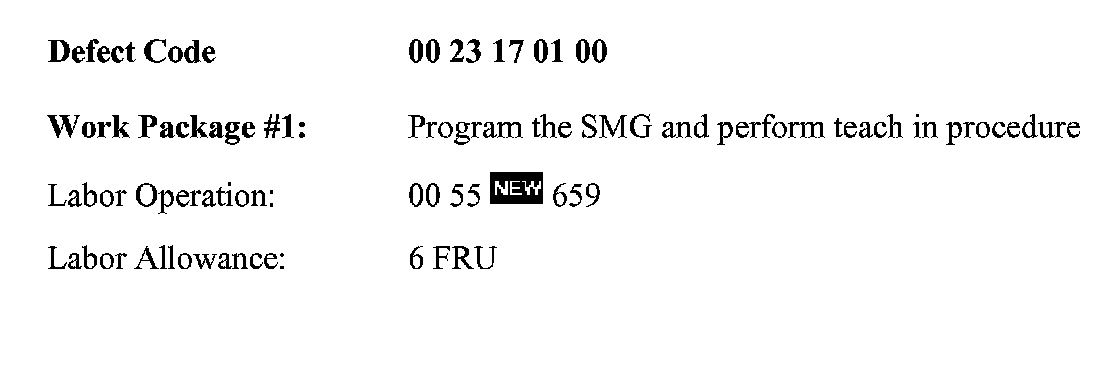

WARRANTY INFORMATION
Reimbursement for this Service action will be via Campaign Entry
