Washer Fluid Level Switch: Service and Repair

Replacing Level Switch For Windshield Washer System (M3)


NOTE:
Drain fluid tank for windshield washer system
Remove cover on right.

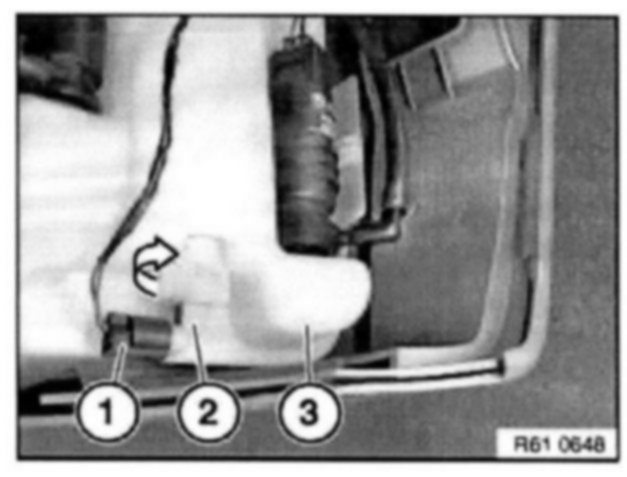

Disconnect plug connection (1).
Turn level switch for windshield washer system (2) in direction of arrow and remove towards bottom from water reservoir for windshield washer system (3).

Installation Note: Fill fluid tank for windshield washer system.
