Power Window Switch: Service and Repair

Replacing Rocker Switch For Side-Window Operation

Version with SMG transmission only:
Remove trim for storage tray.

All:

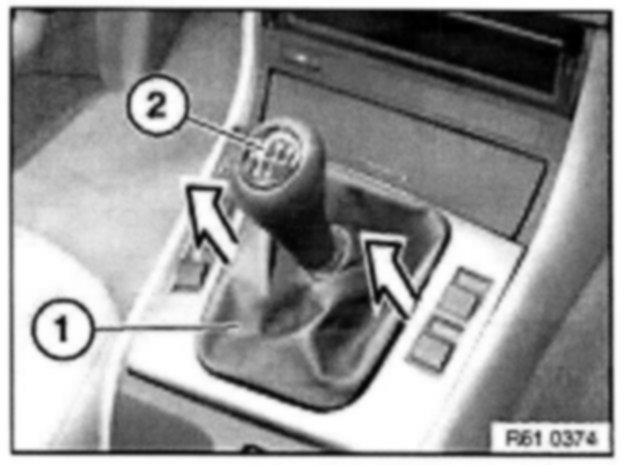

Unclip gaiter (1) sideways and force upwards over shift knob (2).

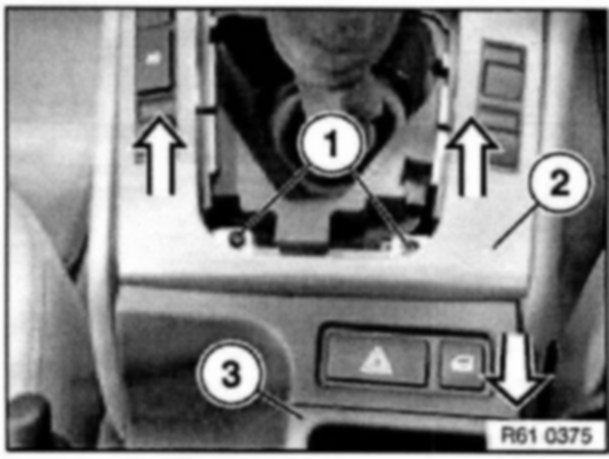

Loosen screws (1).
Raise base of storage tray (2).

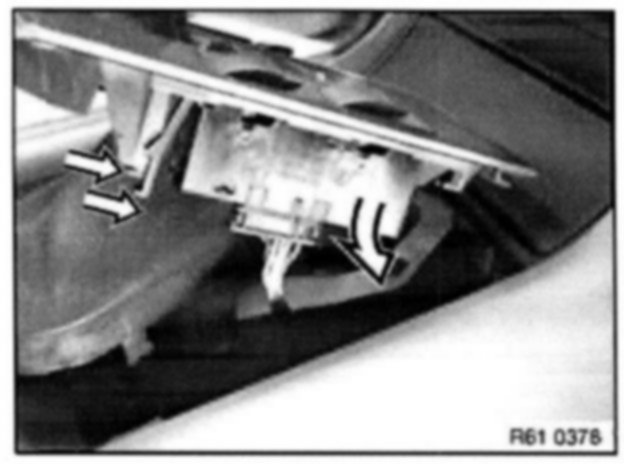

Unlock retaining clips and unclip rocker switch for window operation.

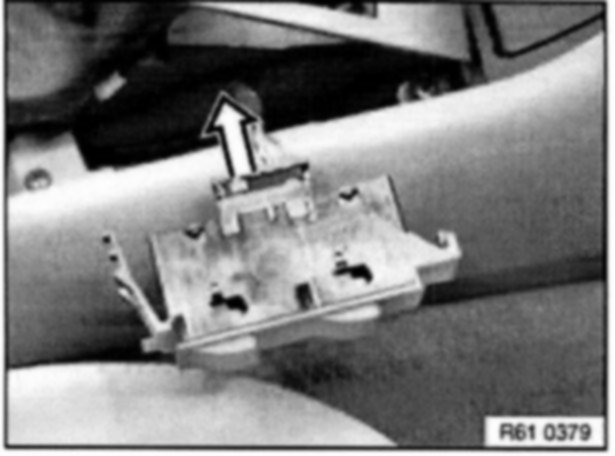

Disconnect plug.
