Turn Signal Switch: Service and Repair
Replacing Turn Indicator/Headlight Dipping Stalk
Remove steering wheel.
Remove fixture for steering column switch.

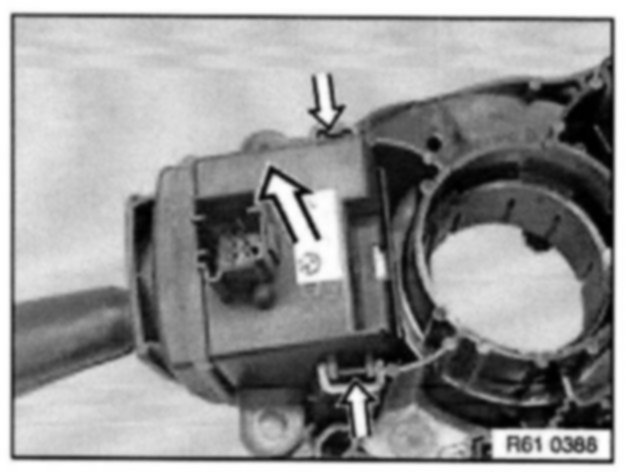

Unlock retainers on right and left and pull out switch towards top.
