Emergency/Substitute Lighting

Emergency (Fail Safe) Lighting

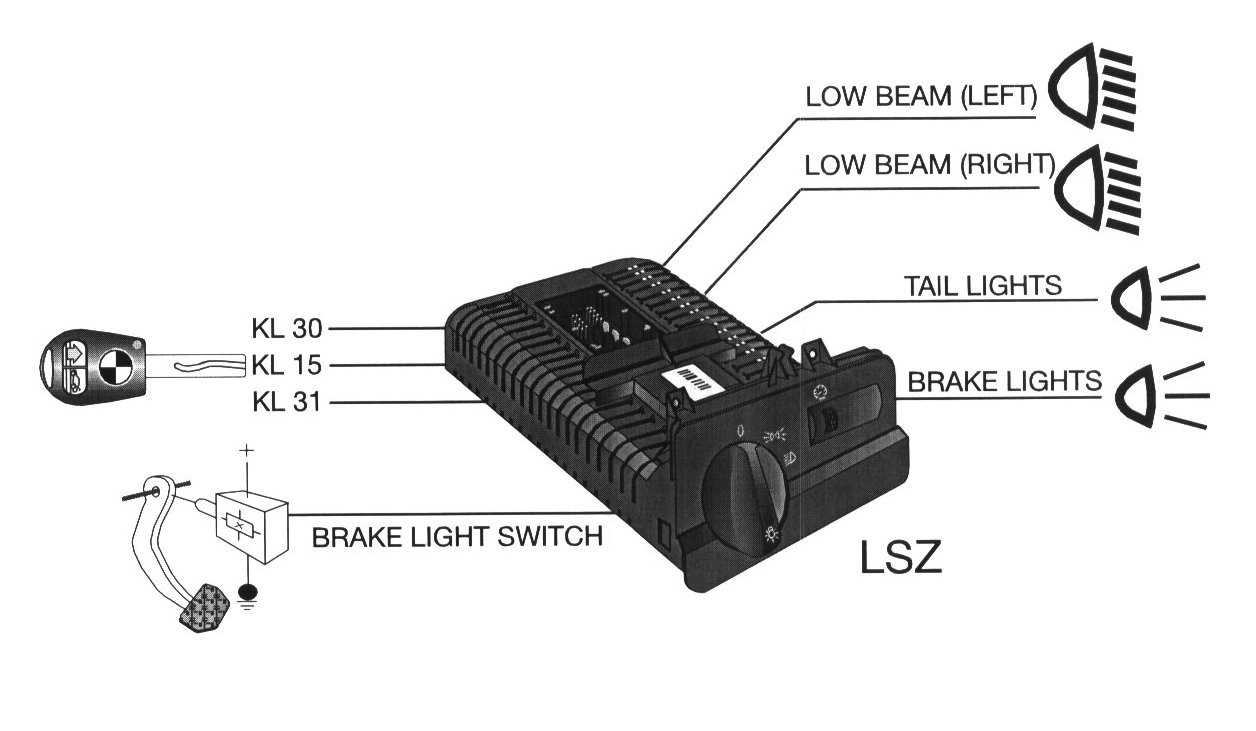

The LSZ provides emergency lighting in the event of a control module failure. If the processor of the LSZ control module fails, back up hardware will allow the following lighting circuits to function:
- Low Beam headlights
- Tail lights
- Brake lights

The headlights and tail lights will come on as soon as KL 15 is switched on, the brake will operate when the brake pedal is pressed.
