Combination Switch: Service and Repair

Removing And Installing/Replacing Fixture For Steering Column Switch

Remove steering wheel.
Remove upper and lower sections of steering column trim.







Disconnect plug from ring antenna.







Disconnect plug from wiper switch.







Disconnect plug from turn-indicator lever.

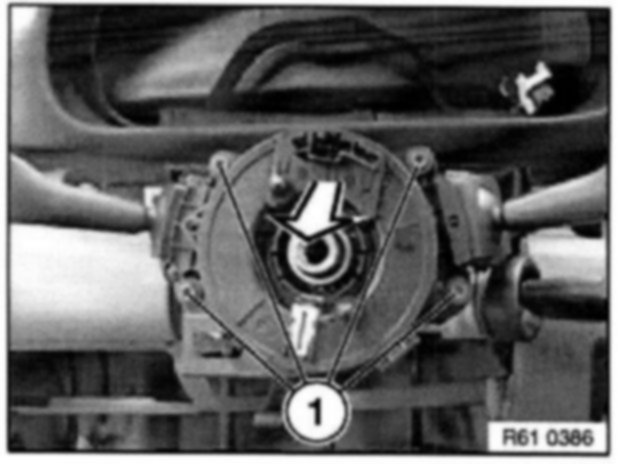

Unfasten screws (1) and remove fixture.
