Replacing Bulb For Auxiliary Turn Indicator Light

Replacing Bulb For Auxiliary Turn Indicator Light, Front Left Or Right


WARNING: Follow instructions for handling light bulbs (exterior lights).


Remove additional front turn signal lamp.

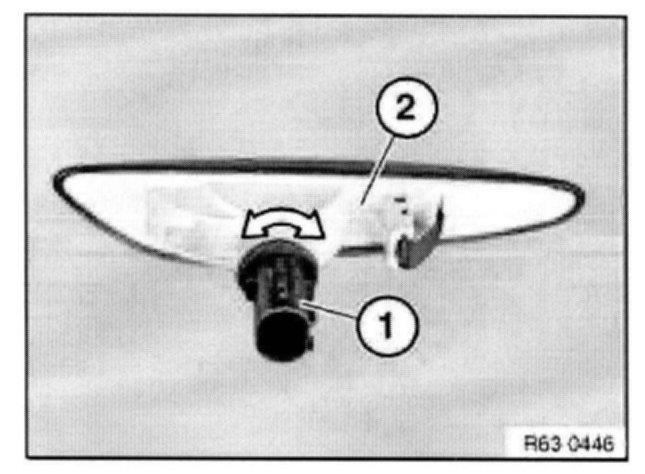

Turn bulb holder (1) and remove from additional front turn signal lamp (2)


NOTE:
Additional turn signal lamp front left:
To open, turn bulb holder (1) counterclockwise.
Additional turn signal lamp. front right:
Saloon/sedan, touring from 09/2001: To open, turn bulb holder (1) clockwise.
All others: To open, turn bulb holder (1) counterclockwise.


Pull bulb out of holder (1).

Installation Note: Note type of bulb.
