Marker Lamp Bulb: Service and Repair

Replacing Bulb For Side Marker Lamp, Front Left


WARNING: Follow instructions for handling light bulbs (exterior lights).


US only:
Replace bulb for front turn-signal lamp.

All models except US:
M54 only:
Release intake filter housing and place to one side.

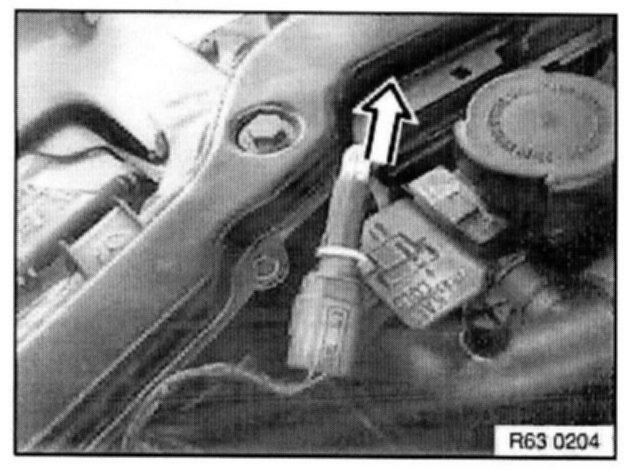

Turn bulb holder for side marker lamp in direction of arrow and pull out towards rear.







Withdraw bulb from bulb holder for side marker lamp.

Installation Note: Note type of bulb.
