License Plate Bulb: Service and Repair




Replacing Bulb For Left Or Right License-plate Light

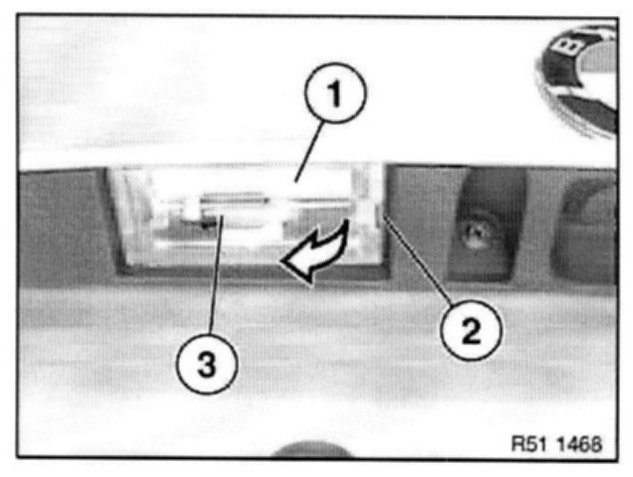

Lever out lens (1) on left or right from opening (2) and remove.
Lever out bulb (3).

Installation Note: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.


NOTE: Note type of bulb.
