Headlamp Lens: Service and Repair

Removing And Installing/Replacing Lens Cover For Headlight (Halogen Headlight)

Remove turn signal lamp.
Remove trim from headlight housing.

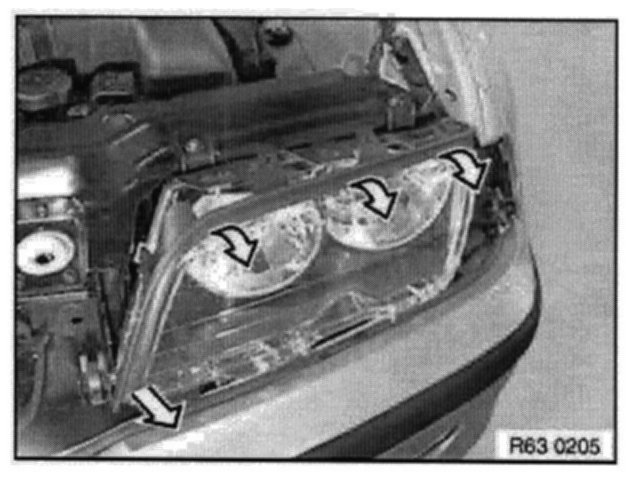

Unclip cover strip from outside to inside

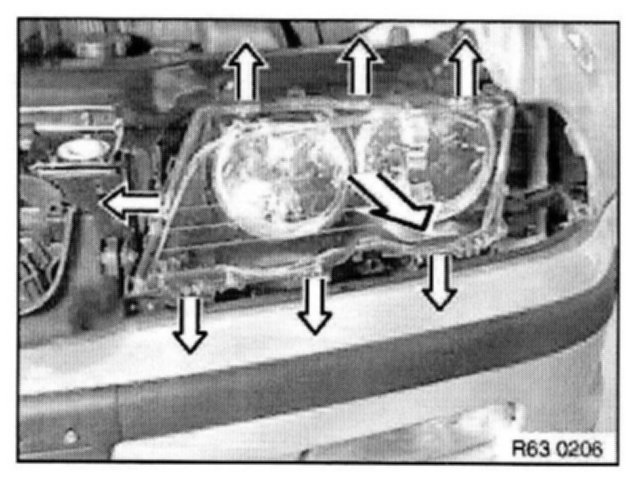

Unclip all retainers.
Remove lens cover.

Installation Note:
If necessary, replace headlight seal.
Contact point of headlight seal is situated on radiator side (high beam headlight) in area of clip.
