Replacing Lamp For Left Xenon Light

Replacing Lamp For Left Xenon Light (Coupe, Convertible)


WARNING: Follow instructions for handling light bulbs (exterior lights).


S54 only:
Remove cover for control unit on left.

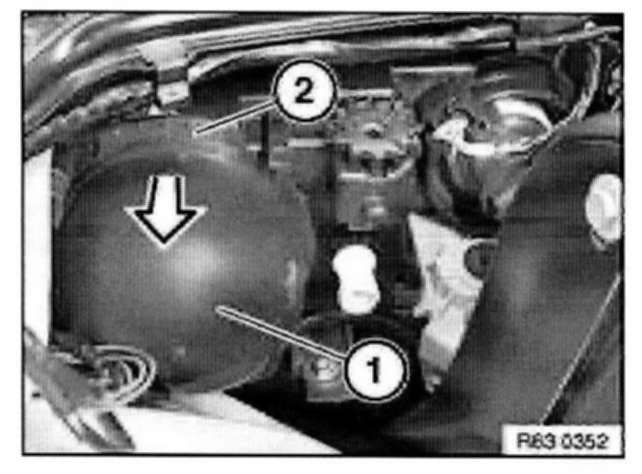

Detach cover for low beam (1) in direction of arrow.

Installation Note: Ensure cover for low beam (1) and lug (2) are correctly seated.

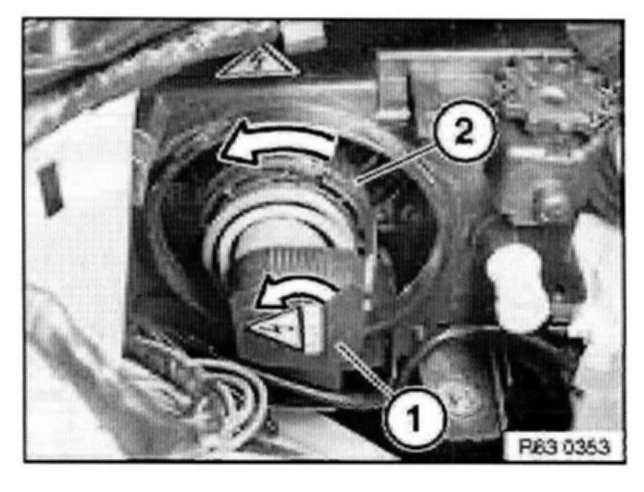

Turn ignition unit for xenon light (1) in direction of arrow and remove.
Turn retaining ring (2) in direction of arrow and remove.
Remove xenon lamp.

Installation Note: Note type of bulb.
