Replacing Halogen-Light Bulb For Left or Right Headlight

Replacing Halogen-Light Bulb For Left Or Right Headlight


WARNING: Follow instructions for handling light bulbs (exterior lights)







Disconnect plug.

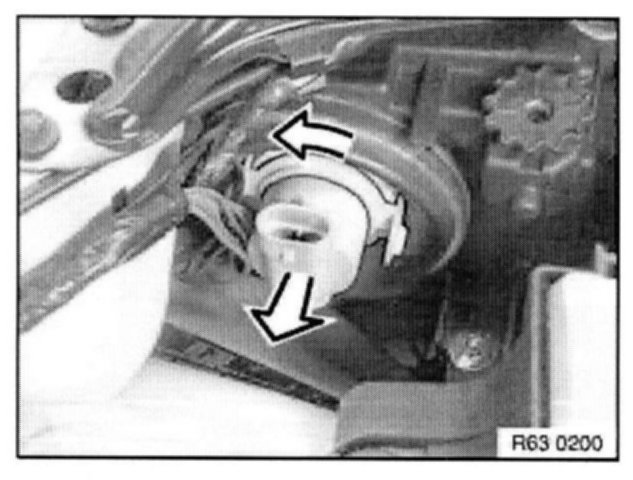

Turn retaining ring in direction of arrow and remove bulb holder towards rear.


NOTE: If retaining ring is firmly seated, press bulb holder forwards.


Remove bulb from bulb holder.

Installation Note: Note type of bulb.
