Removing And Installing/Replacing Left Headlight

Removing And Installing/Replacing Left Headlight

Remove turn signal lamp.
Remove trim from headlight housing.







NOTE: For purposes of clarity, illustration does not show air cleaner cover.

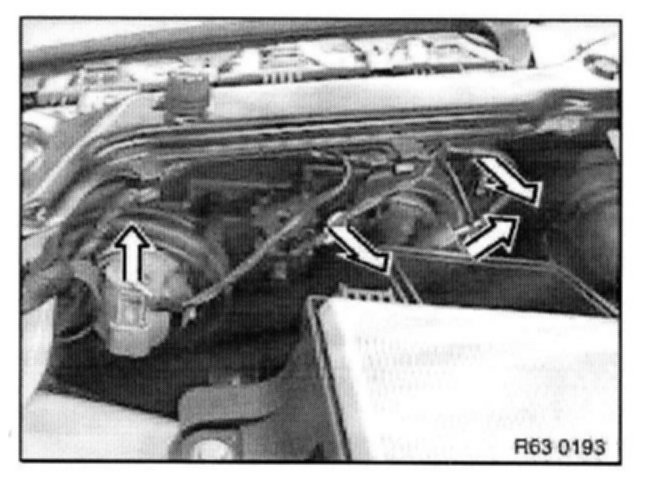

Disconnect all plug connections from headlight.

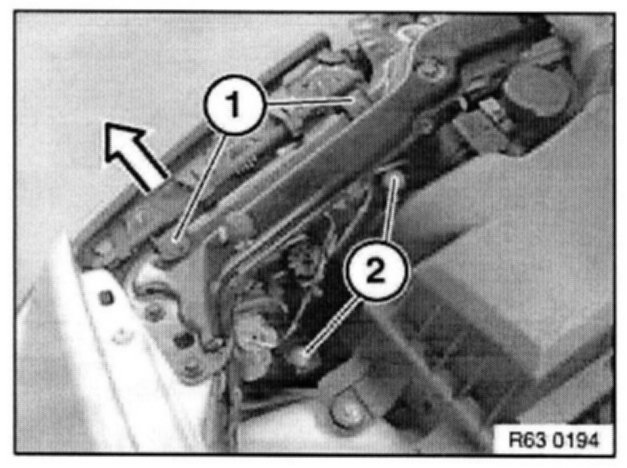

Release screws (1) and (2) and lever out headlight towards front.

Installation Note:
Tighten screws (1) hand-tight only.
Pull headlight fully towards front.
Close hood and adjust headlight to fit.
Open hood and tighten down screws (1).
Insert screws (2) and tighten down.

Installation Note: Adjust headlights.
