Dome Lamp Bulb: Service and Repair

Replacing Light Bulb(s) For Ceiling Light


CAUTION: Follow instructions for handling light bulbs (interior lights).


Version with inside reading lamps:
Remove complete ceiling light (with inside reading lamps).







Turn socket housing for bulb counterclockwise and remove. Remove bulb.

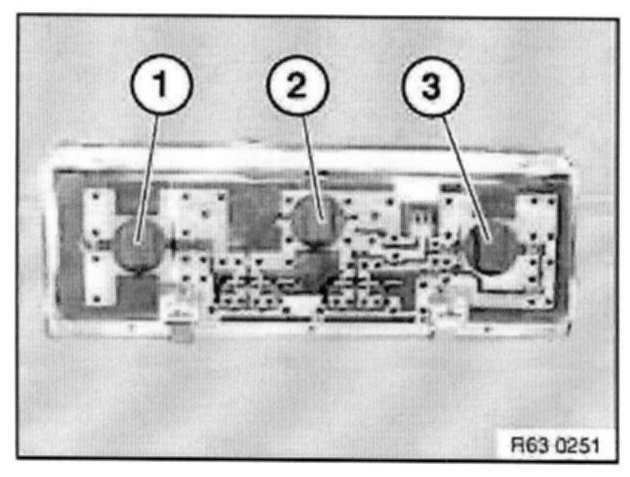

NOTE:
1. Socket housing for left inside reading lamp
2. Socket housing for ceiling light
3. Socket housing for right inside reading lamp

Version without inside reading lamps:
Remove complete ceiling light (without inside reading lamps).

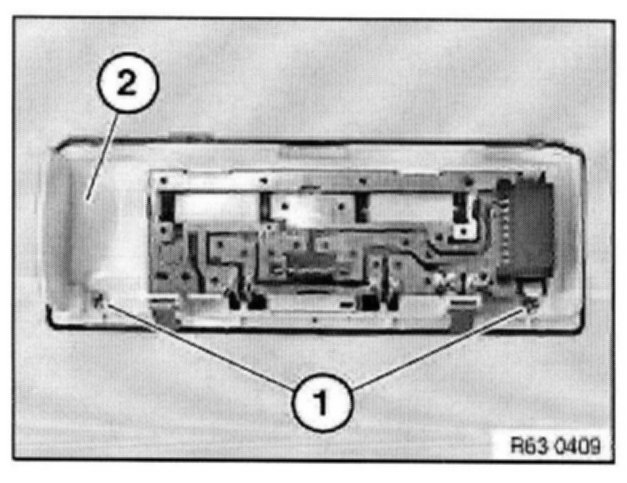

Loosen screws (1).
Remove ceiling light (2) from lens underneath.
Remove bulb(s).

Installation Note: Note type of bulb.
