Cornering Lamp: Service and Repair

Removing And Installing/Replacing Front Left Or Right Additional Turn Signal Lamp (Coupe, Convertible, Compact)

Special tools required:
- 64 1 020







M3 only:

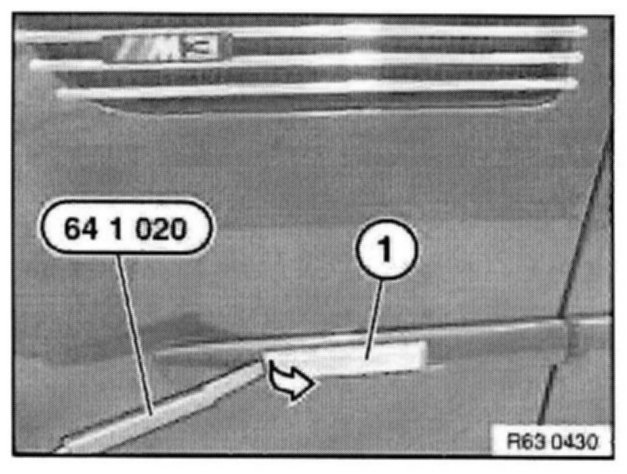

Lever out additional front turn signal lamp (1) with special tool 64 1 020 in direction of arrow.
Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.







All others:
Lever out additional front turn signal lamp (1) with special tool 64 1 020 in direction of arrow.
Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.







All:

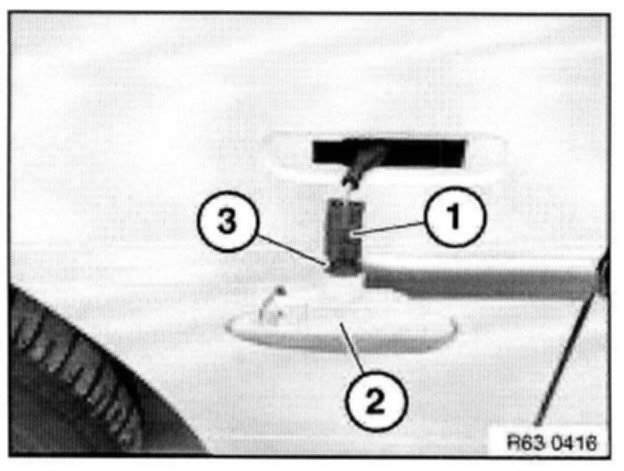

Disconnect plug connection (1) and remove additional front turn signal lamp (2).
