62 21 001 Replacing Instrument Carrier




Replacing Instrument Carrier

Remove complete instrument carrier. Removing and Installing Complete Instrument Carrier

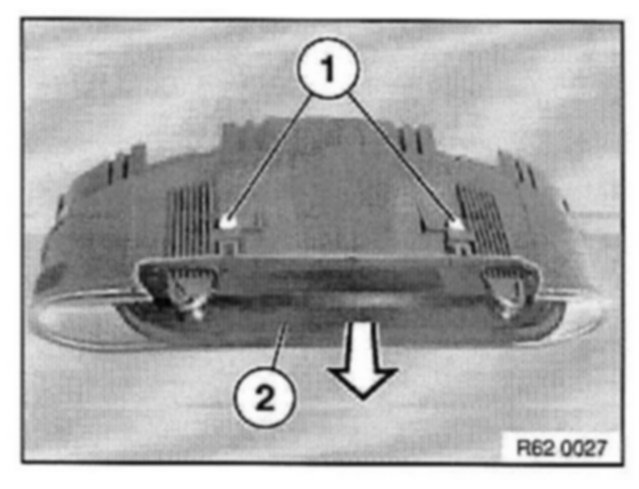

Unlock clips (1) and detach trim (2).

Installation Code instrument carrier, refer to DIS.
