E46 Bus Systems

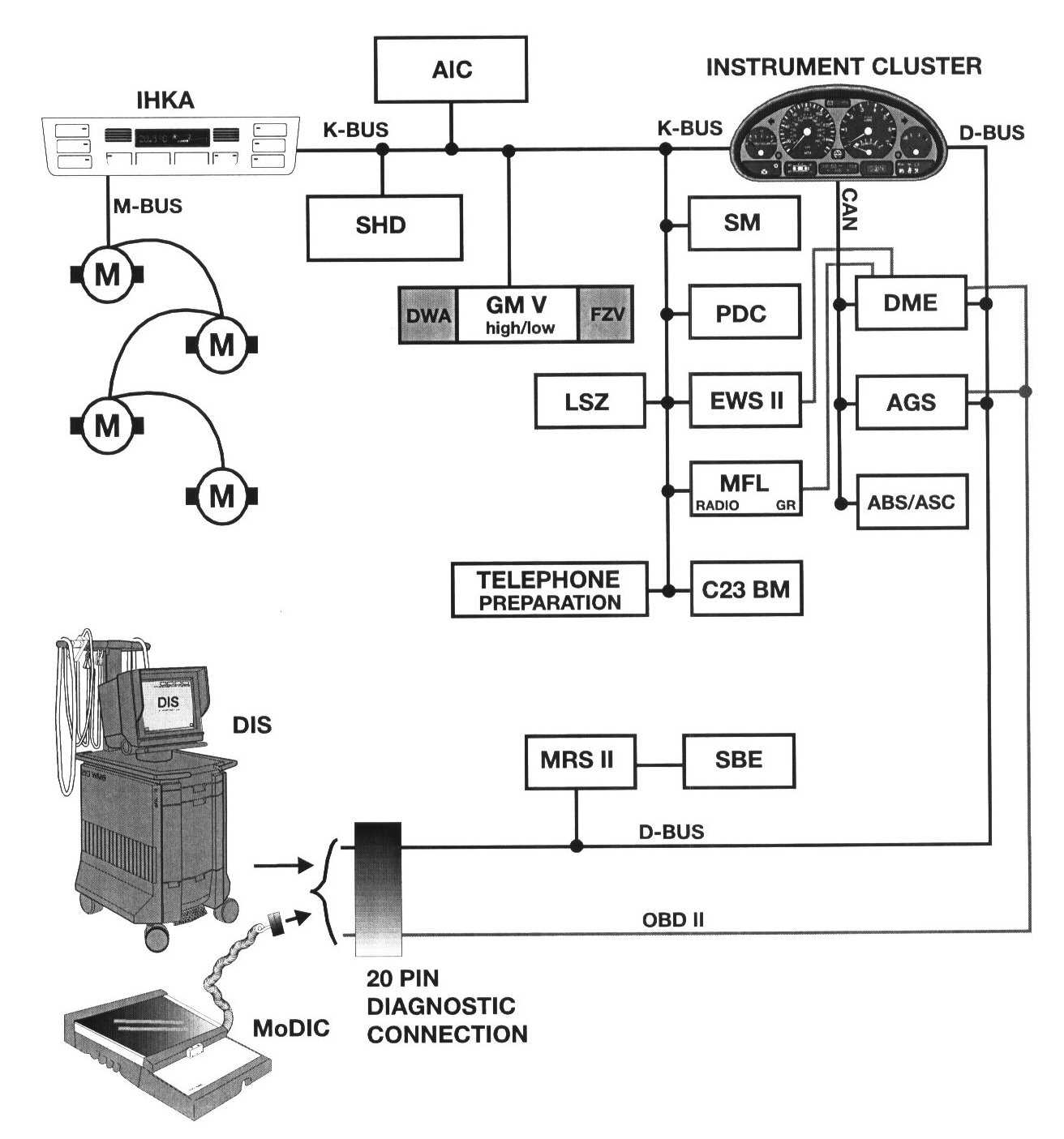

E46 Bus Systems Bus Schematic

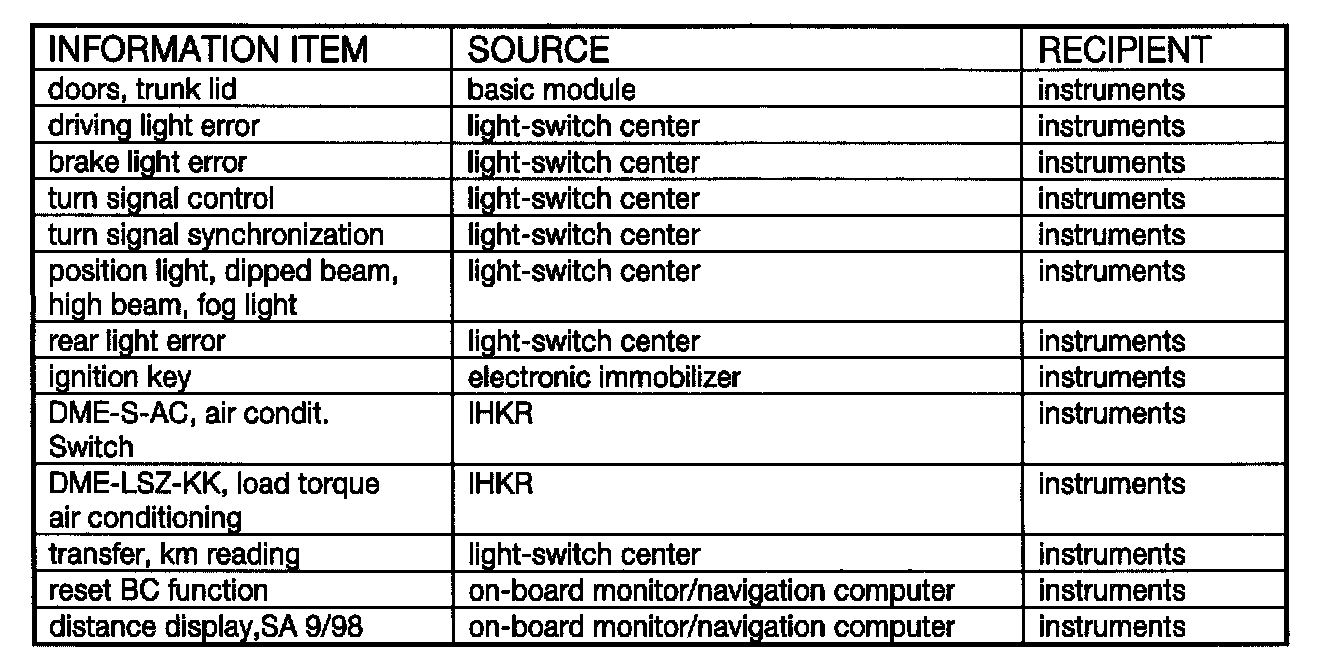

Signals Which Arrive At The Instrument Cluster Via The K-Bus

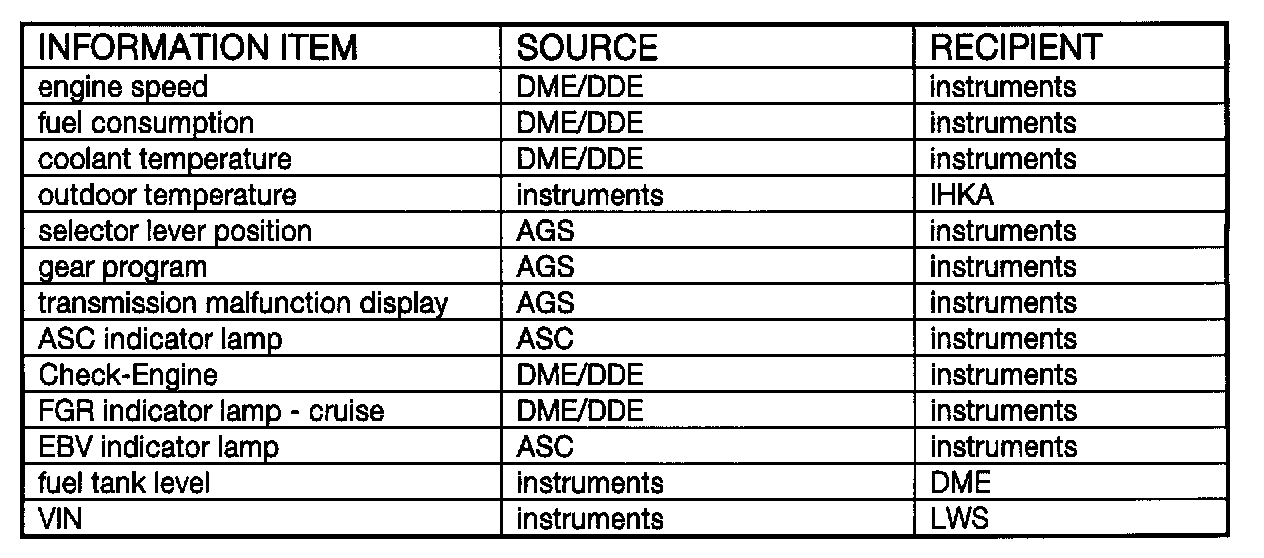

Signals Which Arrive At The Instrument Cluster Through The Can-Bus
