Check Control Display Block

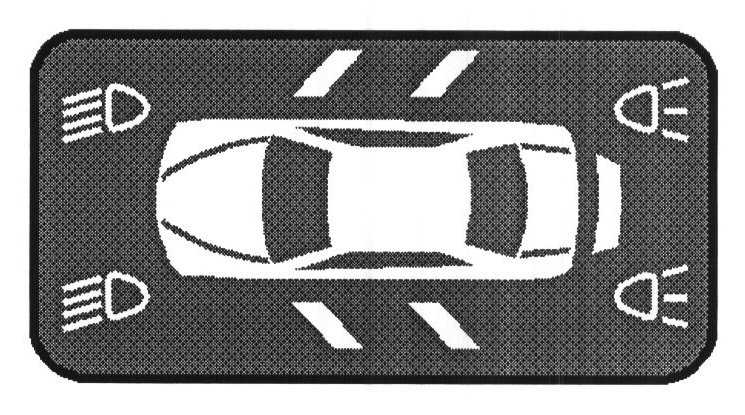

Check Control LCD Matrix Display







The pictogram check control display carries over from the E39 for failure display warnings of various lights, doors/trunk open and low fluid indications. Inputs for warning lamp indication are processed by the cluster electronics and the appropriate LED is illuminated.
