Air Duct: Service and Repair

Removing And Installing/Replacing Air Duct In Footwell On Right

Remove and install housing for glovebox and cover on equipment carrier at bottom.

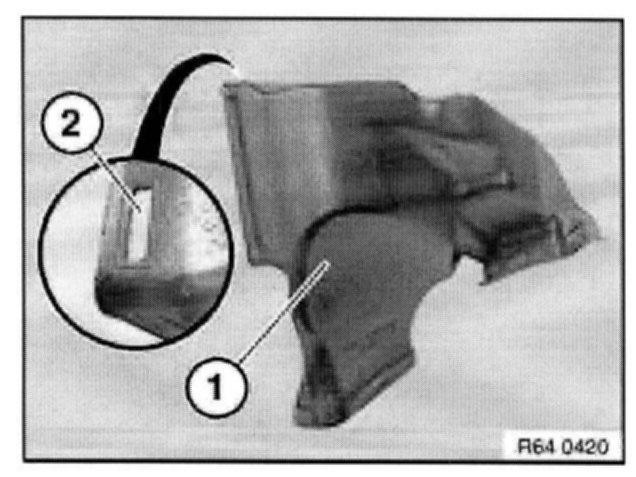

NOTE: Air duct (1) for right footwell is clipped on heater/A/C housing.

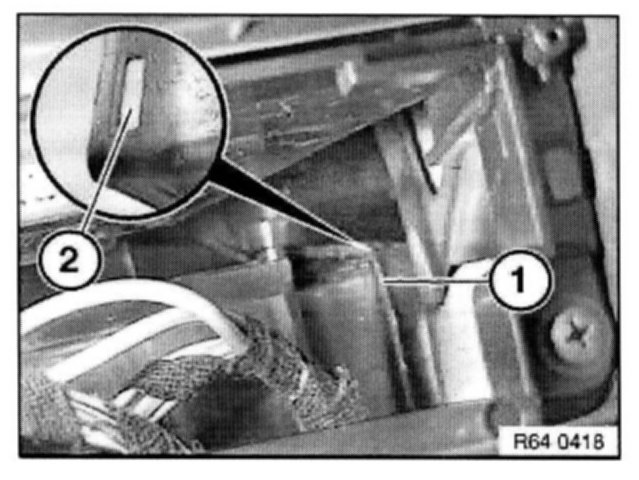

Unlock air duct (1) through opening in heater/A/C controls or on-board monitor.

Installation Note: Opening (2) for lock must not be damaged.

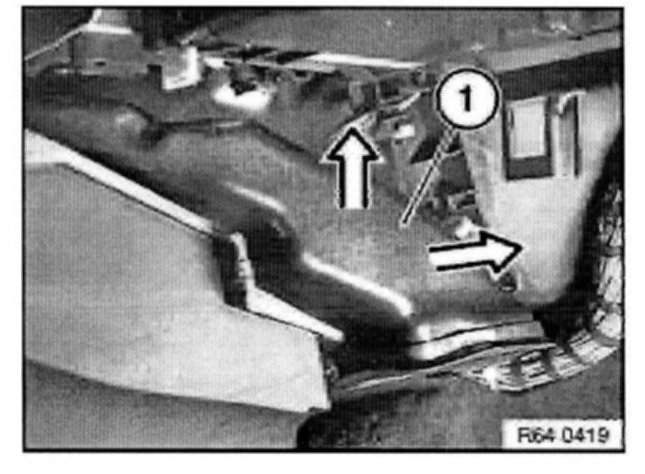

Lift unlocked air duct (1) towards top out of rear compartment air duct and feed out towards front right.
