Engine Mount: Service and Repair
Important before you start read Service and Repair
Replacing Right Engine Mount (N62)
Secure engine in installation position
Release both engine mounts from above.
Remove front splash guard.
Remove both front wheels.
Remove reinforcement plate.
Lower front axle support.

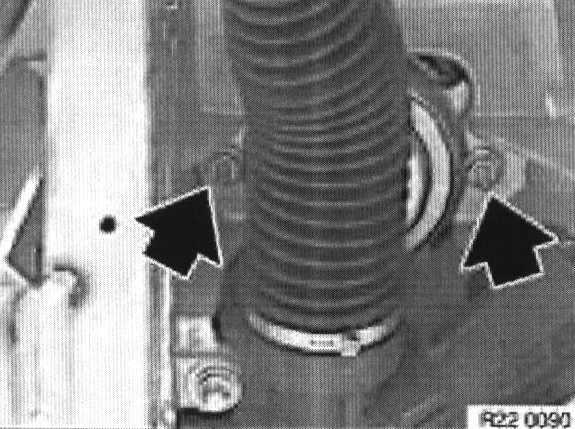

Release screw connection for engine mount at bottom right.
Remove engine mount towards front.
Installation:

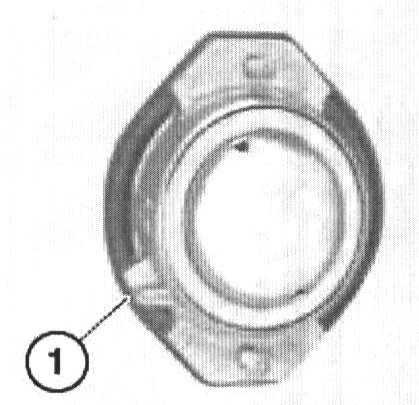

Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount:
Even component number
Left engine mount:
Odd component number
22 11 110 Replacing left engine support arm (N62)
Necessary preliminary tasks:
^ Remove exhaust system.
^ Remove front axle differential.
^ Remove and install left exhaust manifold.

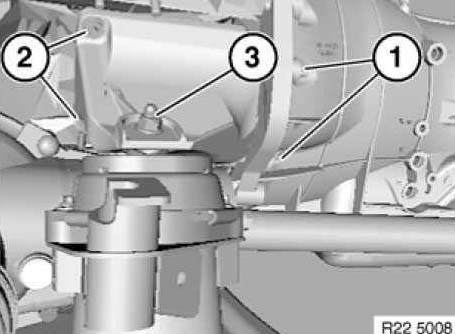

Release screws (1).
Release screws (2) and nuts (3).
Remove engine bracket.
Engine mount to engine support arm E60
/E61/E63/E64/E65/E66/E67/E53/E83/E87 M10 / 10.9 56 Nm
E65 / E66 / E67 M 12 10.9 100 Nm
E85 / E52 42 Nm
Replacing right engine mount (M54)
Necessary preliminary tasks:
- Secure engine in installation position.
- Release engine mounts on left and right from above.
- Remove reinforcement plate.
- Remove underbody protection.\
- Unfasten nut.
Tightening torque
(E85) 42 Nm.
(E60 / E65 / E66 / E67) M8-8 19 Nm
(E53) M8 10.9 30 Nm
(E83) M8 21 Nm
- Remove right engine support arm from engine block.
- Remove engine mount.
Installation:
- Fit heat shield for engine mount.
- Lug (1) of heat shield must rest in corresponding bore (2) of engine mount.
- Installation position of engine mount predetermined by locating pin (3). Pin (3) is in direction of travel at front.
Replacing right engine support arm (M54)
Necessary preliminary tasks:
- Remove right engine mount.
- Release grounding strap (1) from engine support arm.
- Remove right engine support arm from engine block.
Tightening torque support arm.
(E65 E66 E67) M10 8.8 38 Nm
(E65 E66 E67) M8 8.8 19 Nm
(E85 E83) M8 8.8 21 Nm
(E53 with N62 or M54) 38 Nm
Replacing left engine mount (M54)
Necessary preliminary tasks:
- Secure engine in installation position.
- Release engine mounts on left and right from above.
Tightening torque mount to front axle
(E85) 42 Nm.
(E60 / E65 / E66 / E67) M8-8 19 Nm
(E53) M8 10.9 30 Nm
(E83) M8 21 Nm
- Remove reinforcement plate.
- Remove underbody protection.
- Unfasten nut.
- Partially release screws from engine support arm to engine block until engine support arm can be tilted upwards.
Tightening torque support arm.
(E65 E66 E67) M10 8.8 38 Nm
(E65 E66 E67) M8 8.8 19 Nm
(E85 E83) M8 8.8 21 Nm
(E53 with N62 or M54) 38 Nm
- Remove engine mount.
Installation:
- Installation position of engine mount predetermined by locating pin (3). Pin (3) is in direction of travel at front.
- Heat shield is only present on right engine mount!
Replacing left engine support arm (M54).
- Necessary preliminary tasks: Remove left engine mount.
- Release screw (1).(Tightening torque, 11 43 1AZ).
- Remove left engine support arm from engine block.
Tightening torque support arm.
(E65 E66 E67) M10 8.8 38 Nm
(E65 E66 E67) M8 8.8 19 Nm
(E85 E83) M8 8.8 21 Nm
(E53 with N62 or M54) 38 Nm
- Guide tube for oil dipstick (1AZ M8 22 Nm).
Torque Specifications: Seals and Loose Body Parts
1AZ Front spoiler to bumper.
E36 / M3 3 Nm
2AZ Rear spoiler
E34 / Touring M6 5 Nm
E36 / M3 M6 7 Nm
E36 / Z3 Coup�, M Coupe M6 6 Nm
E53 3 Nm
E83 M6 10 Nm
E61 8 Nm
3AZ Reinforcement plate to front axle support/engine
E46 without AWD / E85 Replace screws Release screw (4).
- Release screws (1) and nut (3) and remove tension strut (2).
Installation:
- Replace screws (1) and nut (3).
- Insert screws (1).
- Tighten down screws (1) to torque and then to angle of rotation, carrier Jointing Torque 59 Nm Torque angle 90°
4AZ Tension strut in engine compartment
E85 Jointing torque 30 Nm Torque angle 90°
E60 / E61 / E63 / E64 M8 Screw connection again 20 Nm
New component / initial screw connection 24 Nm
E83 M8 19 Nm
E90 M10 Jointing torque 56 Nm Torque angle 90°
E90 M12x1.5 Jointing torque 100 Nm Torque angle 90 °
5AZ Reinforcing plate/ tension strut to rear axle.
E85 / E46 / Convertible M10 Replace screws Jointing torque 59 Nm Torque angle 90°
Reinforcing plate to rear axle.
E85 M8 21 Nm
7AZ Tension strut to rear axle E46 / Convertible M8 24 Nm
E61 / E64 M12 Replace screws Jointing torque 100 Nm Torque angle 90°
E85 Replace nut 24 Nm.
8AZ Crossmember, Apillar, to mounting
E52 M8 18.5 Nm
9AZ Crossmember, Apillar, middle
E52 M8 10 Nm
10AZ Strut to cardan tunnel
E52 M8 18.5 Nm
11AZ Crossmember, Apillar, bottom,to mounting
E52 M6 11.2 Nm
12AZ Support tube to support, steering column upper section
E65 / E66 / E67 M8 21 Nm
E87 / E90 M8 19 Nm
13AZ Support tube to body
E85 M8 19.5 Nm
14AZ Heater to support tube
E85 / E87 / E90 4 Nm
15AZ Support tube to body
E60 / E61 /E63 / E64 / E87 / E90 M8 21 Nm
16AZ Take-up, cover, sill to body
E83 M8 5 Nm
17AZ Structural tension strut, front
E61 / E64 M12 Replace screws Jointing torque 100 Nm Torque angle 90°
E61 / E64 M6 Replace screws Jointing torque 8 Nm.
18AZ Cross strut/rear
E61 / E64 M10 Nuts 41 Nm
Screws 59 Nm
19AZ Bracket, handle, to body
E87 3.5 Nm
20AZ Multifunction pan to body
E87 / E90 M6 8 Nm.
