Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Vehicle Speed Control (GR Cruise control) >> Operation >> Transmission Interface (Automatic Transmission) >> Kick-Down Switch, Cruise Control (Tempomat) Interface (EGS Transmission Control 8.34)

Kick-Down Switch, Cruise Control (Tempomat) Interface (EGS Transmission Control 8.34)

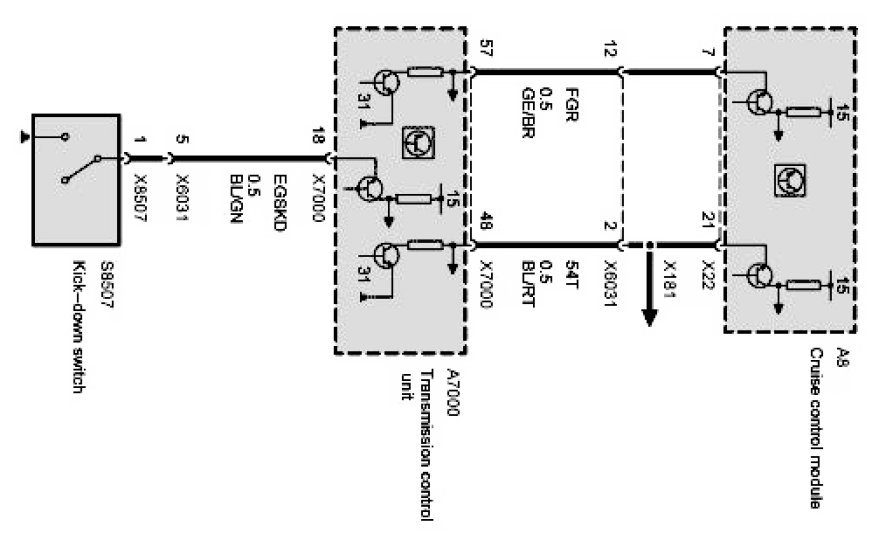

Kick-down Switch, Cruise Control (Tempomat) Interface:
