M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Drive
>>
Vehicle Speed Control (GR Cruise control)
>>
Operation
>>
Brake Light Switch
>>
Brake Light Switch (W/O DME Motor Electronics BMS46 W/O SMG Sequential Manual Transmission W/O N46 Engine As of 03/01)
Brake Light Switch (W/O DME Motor Electronics BMS46 W/O SMG Sequential Manual Transmission W/O N46 Engine As of 03/01)

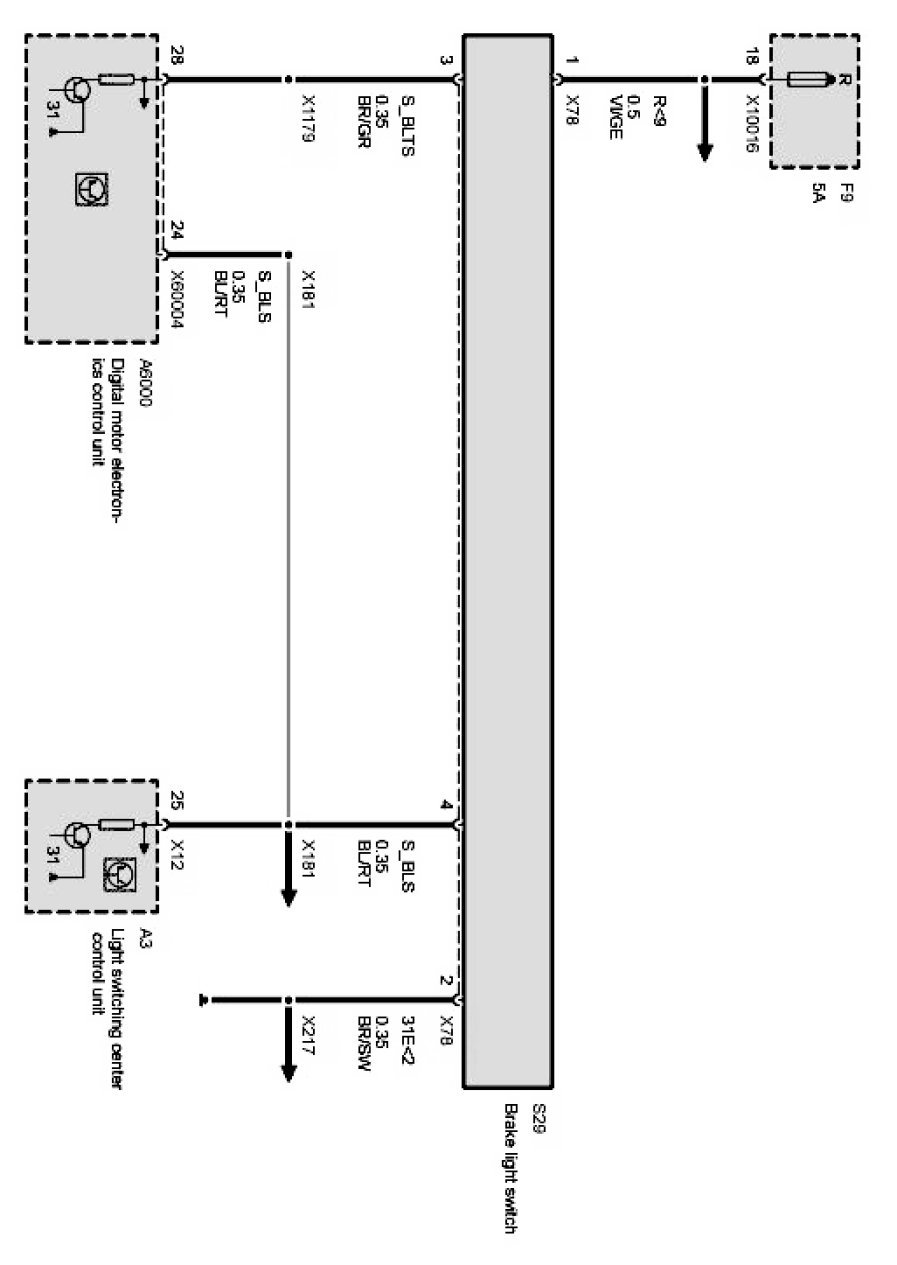

Brake-light Switch:
