Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Management SMG (SMG Sequential Manual Transmission) >> Transmission Control (As of 03/03)

Transmission Control (As of 03/03)

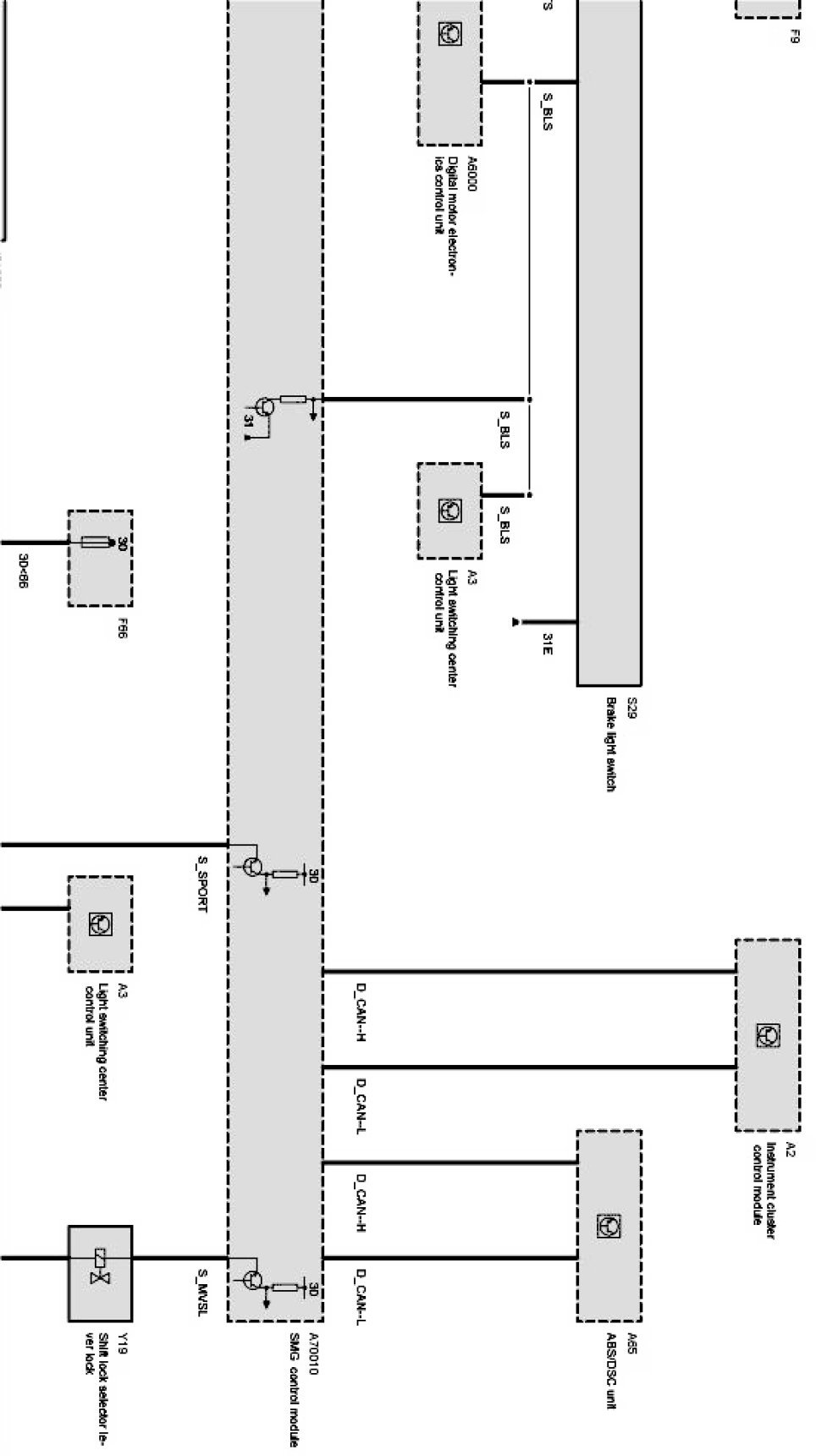

Transmission Control Part 1:

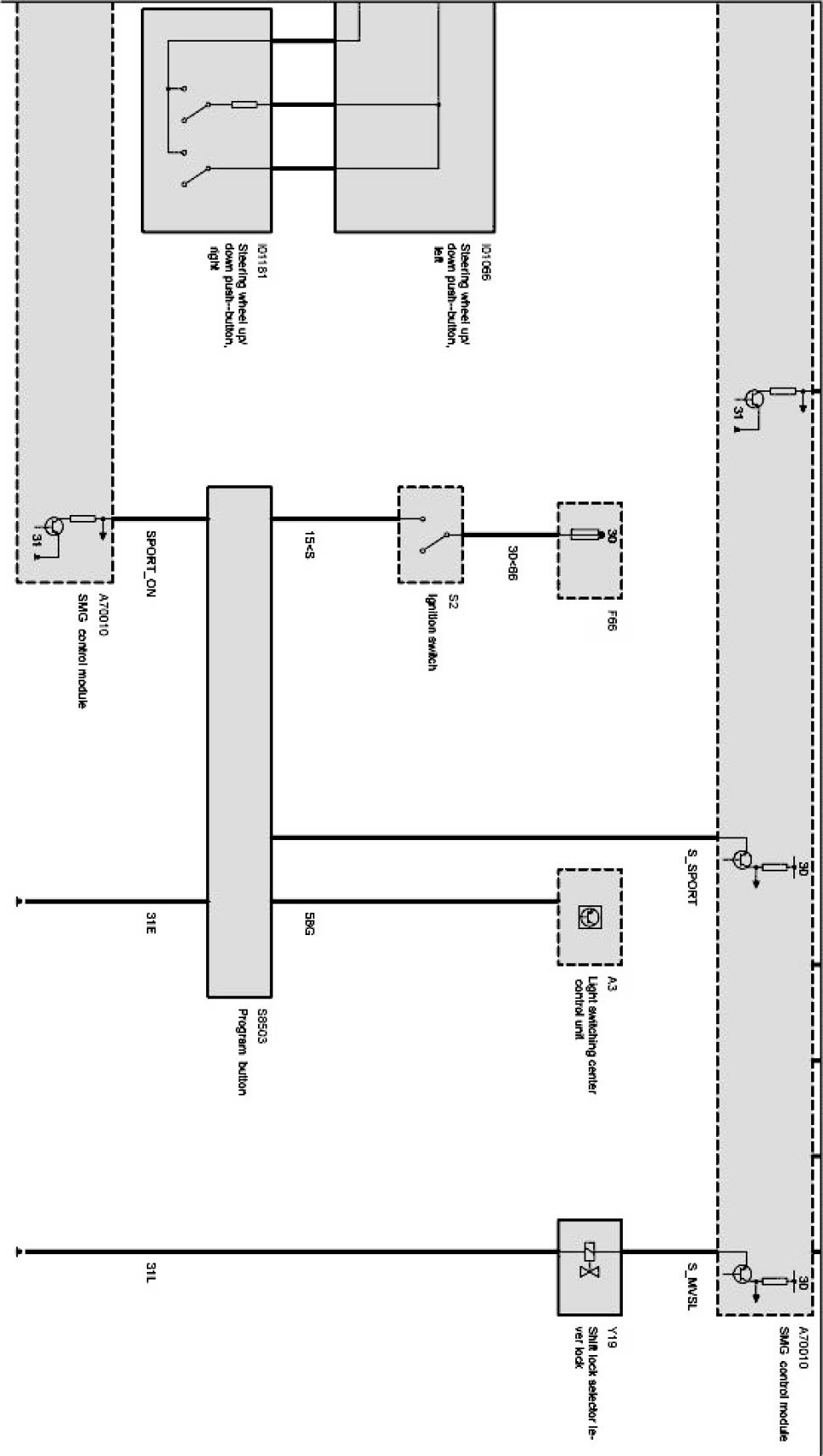

Transmission Control Part 2:

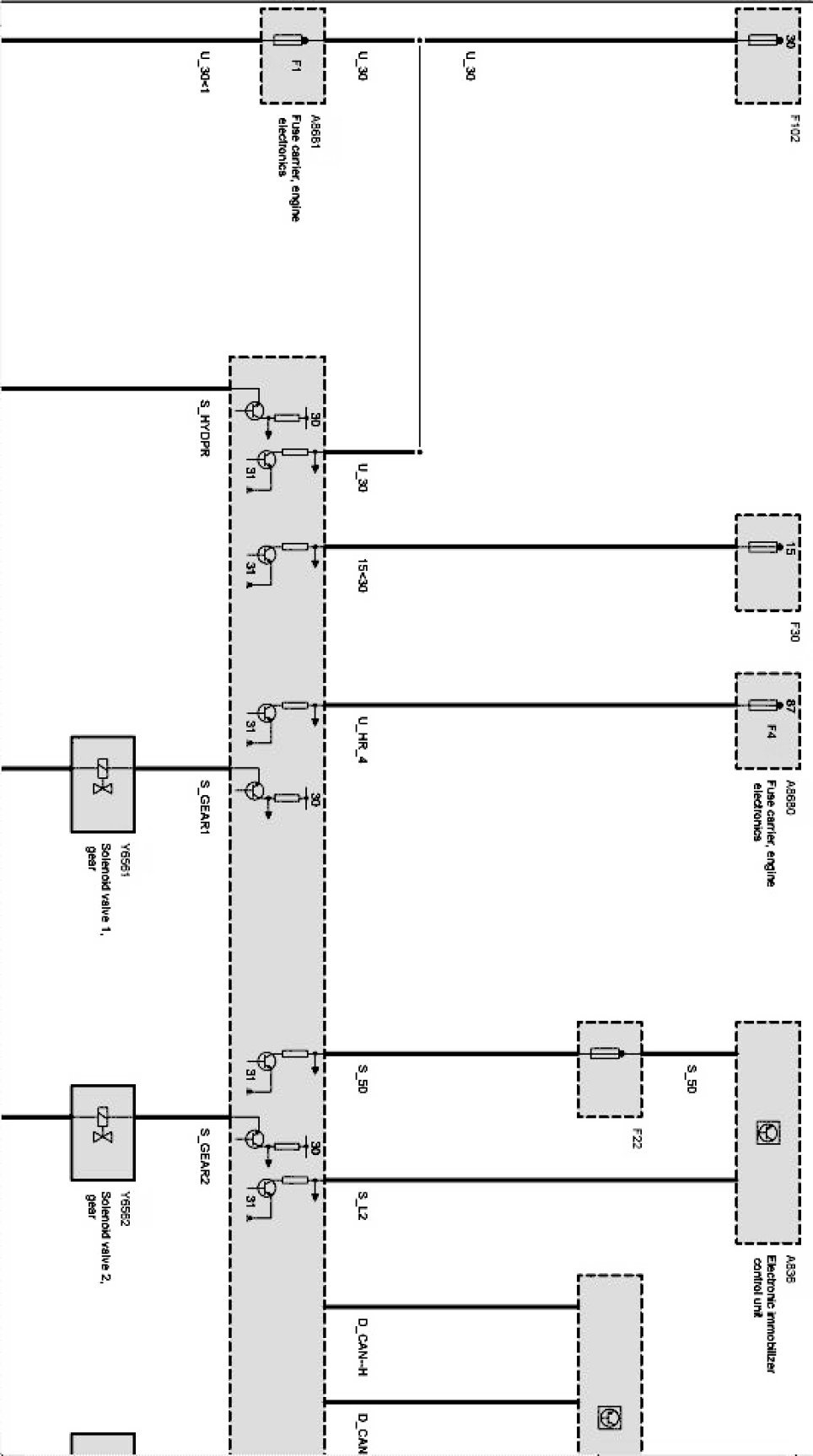

Transmission Control Part 3:

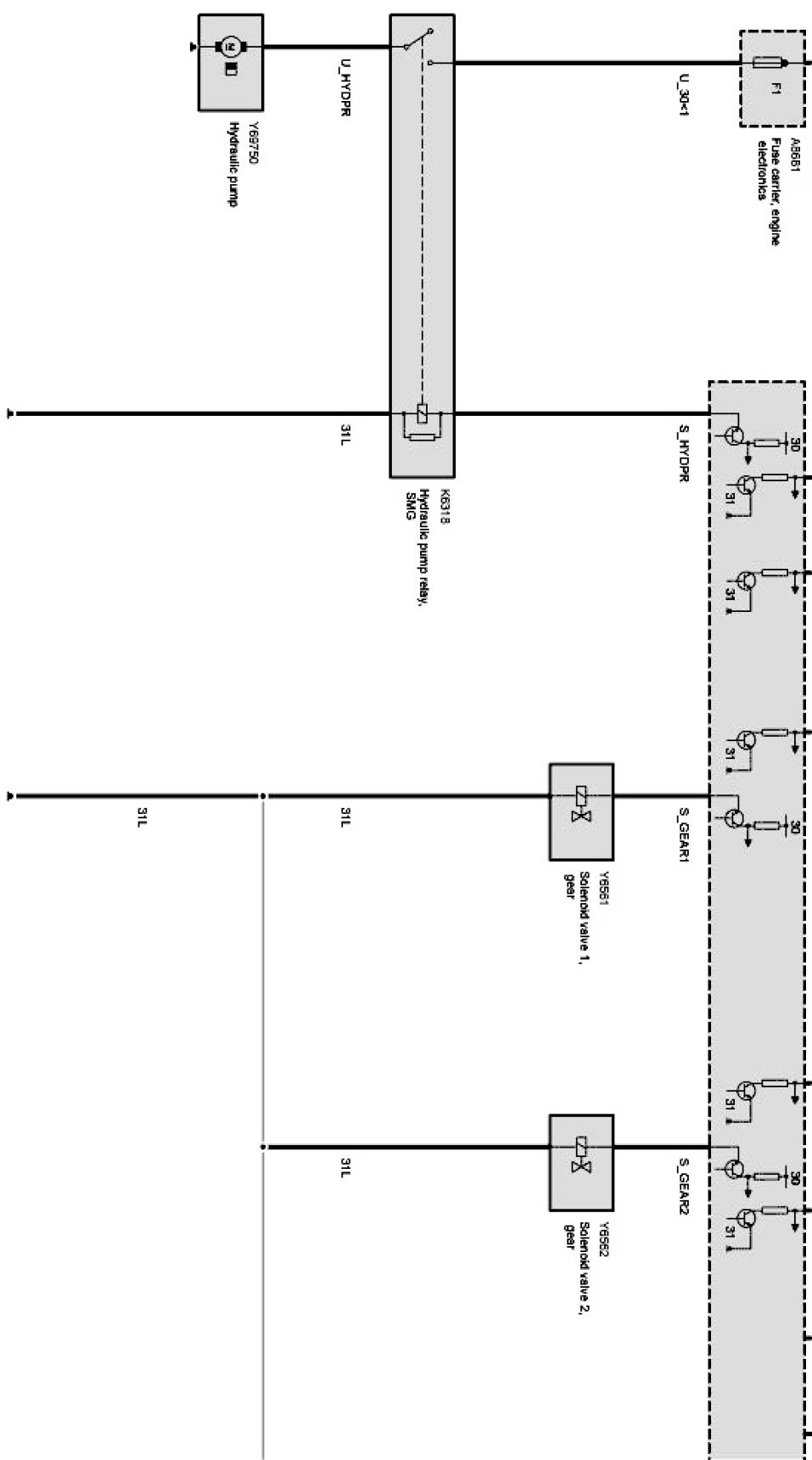

Transmission Control Part 4:

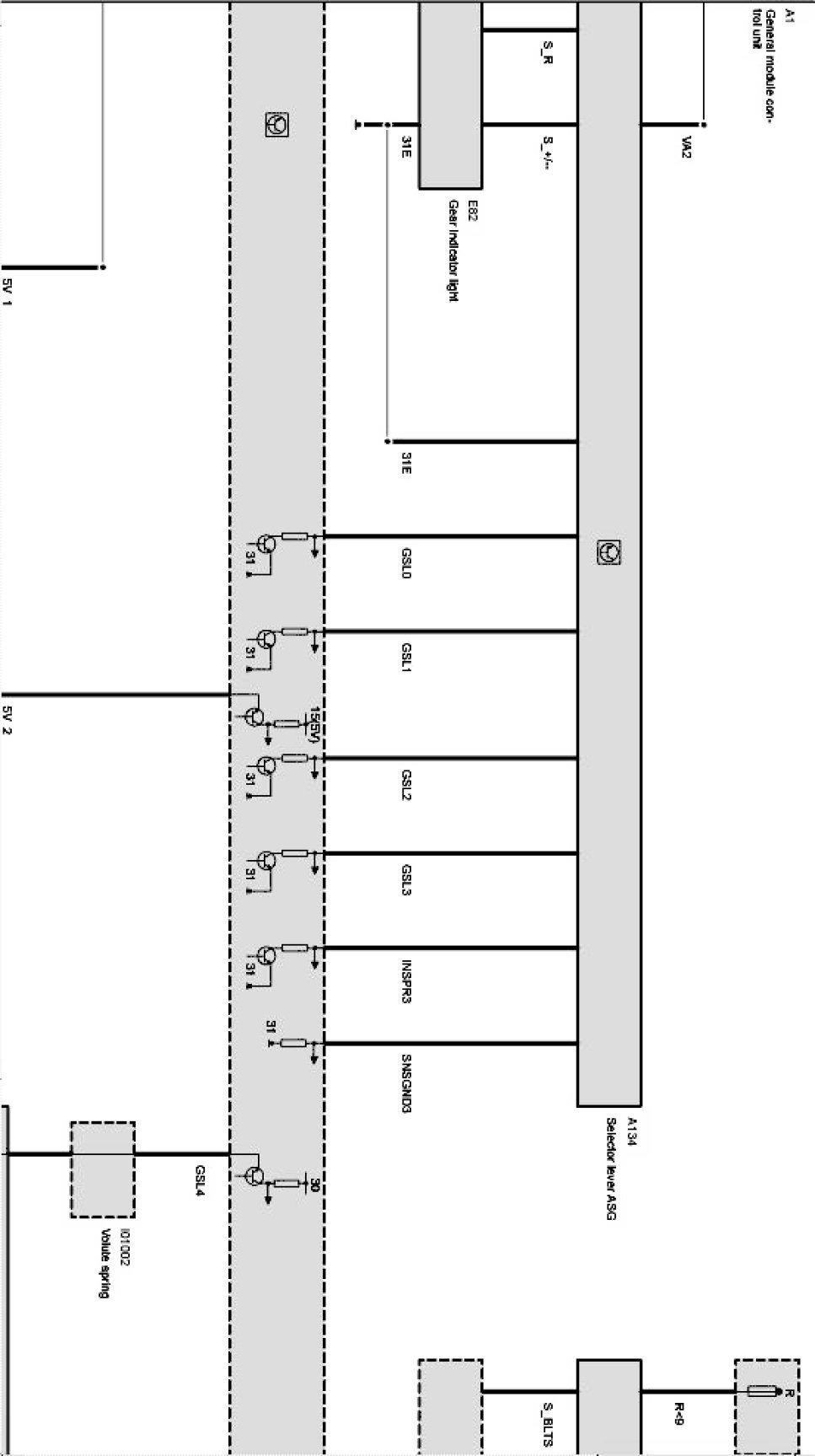

Transmission Control Part 5:

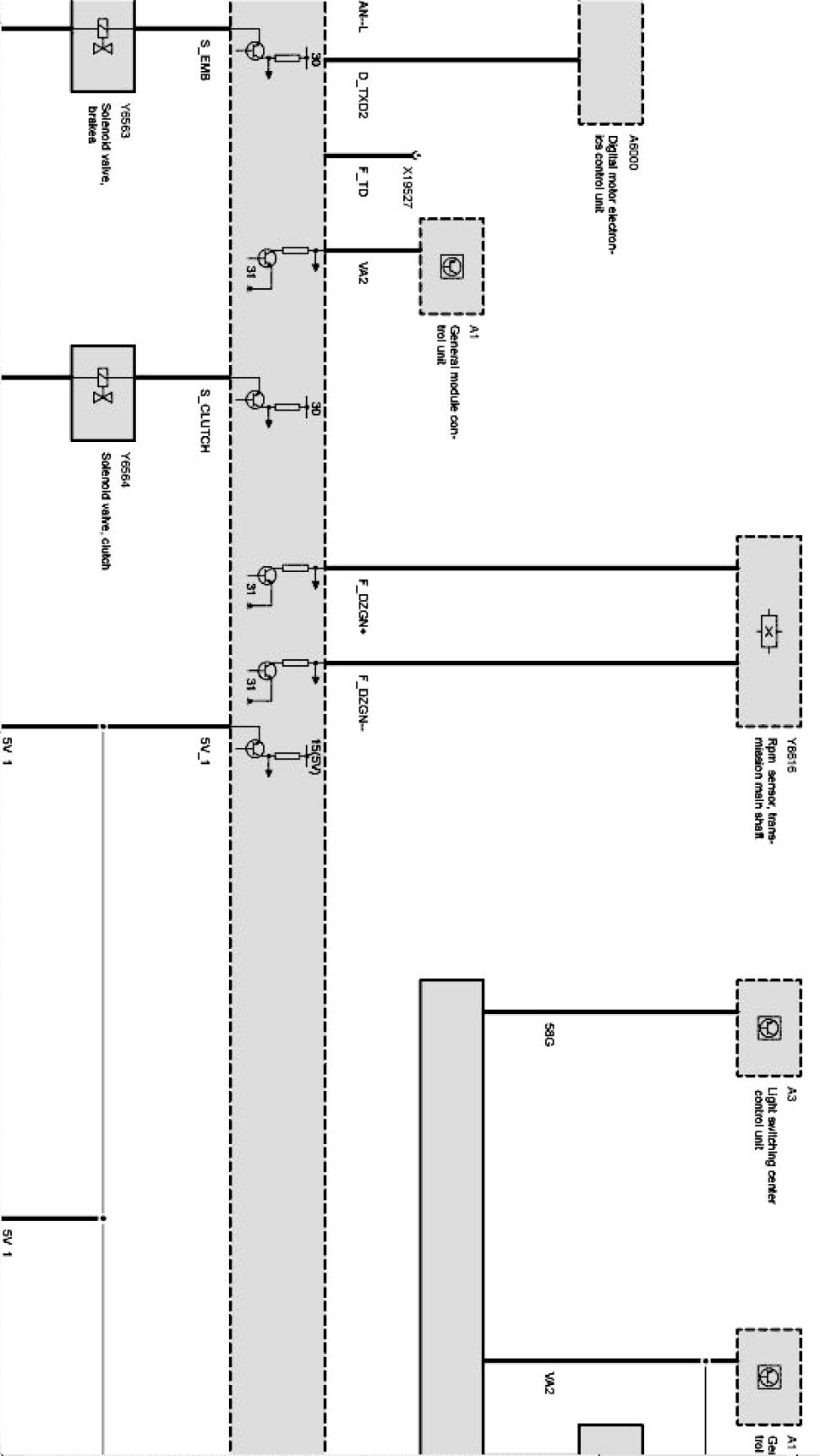

Transmission Control Part 6:

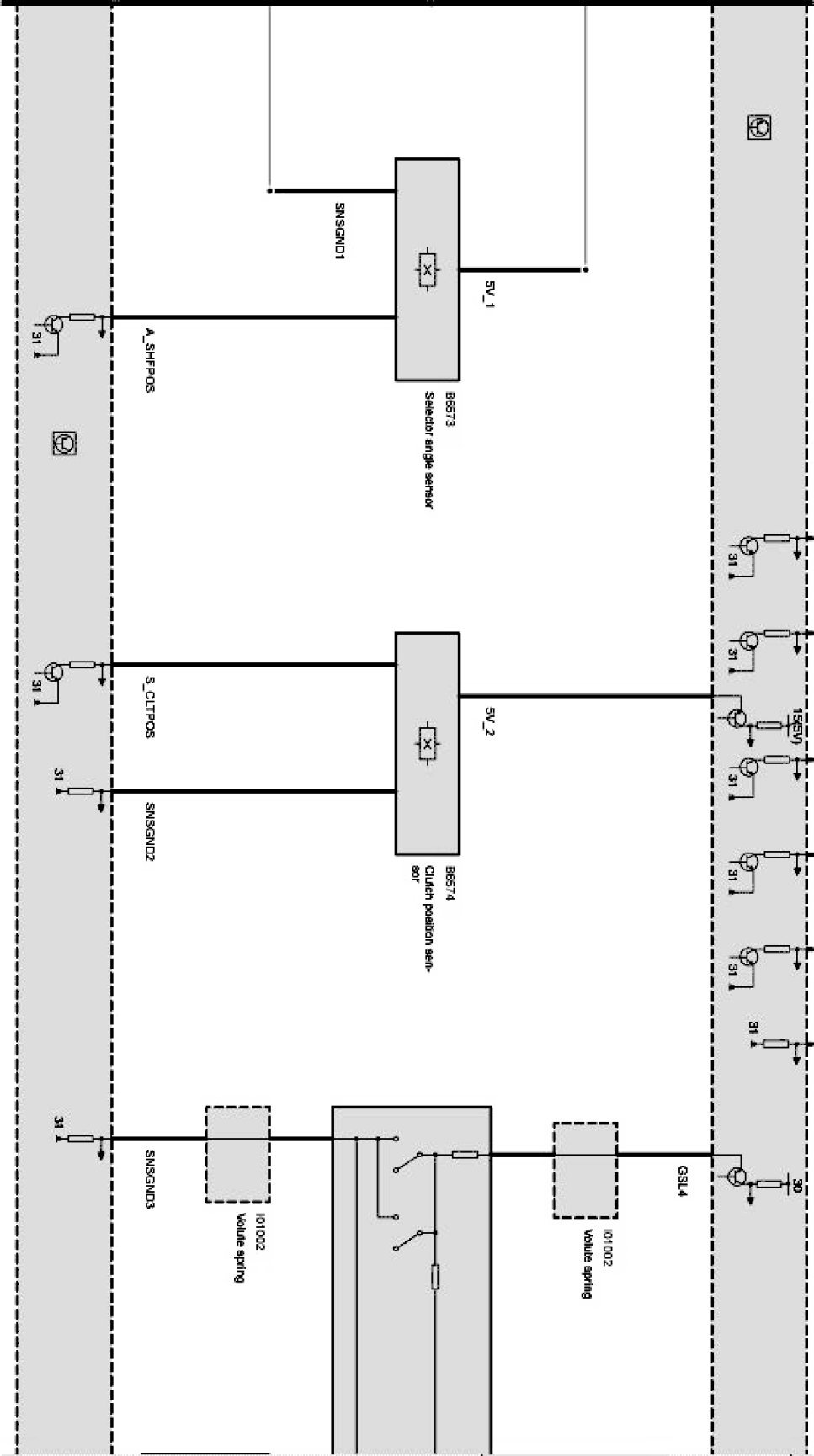

Transmission Control Part 7:



Transmission Control Part 8:
