Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Management SMG (SMG Sequential Manual Transmission) >> Selector Lever >> Selector Lever (As of 03/03)

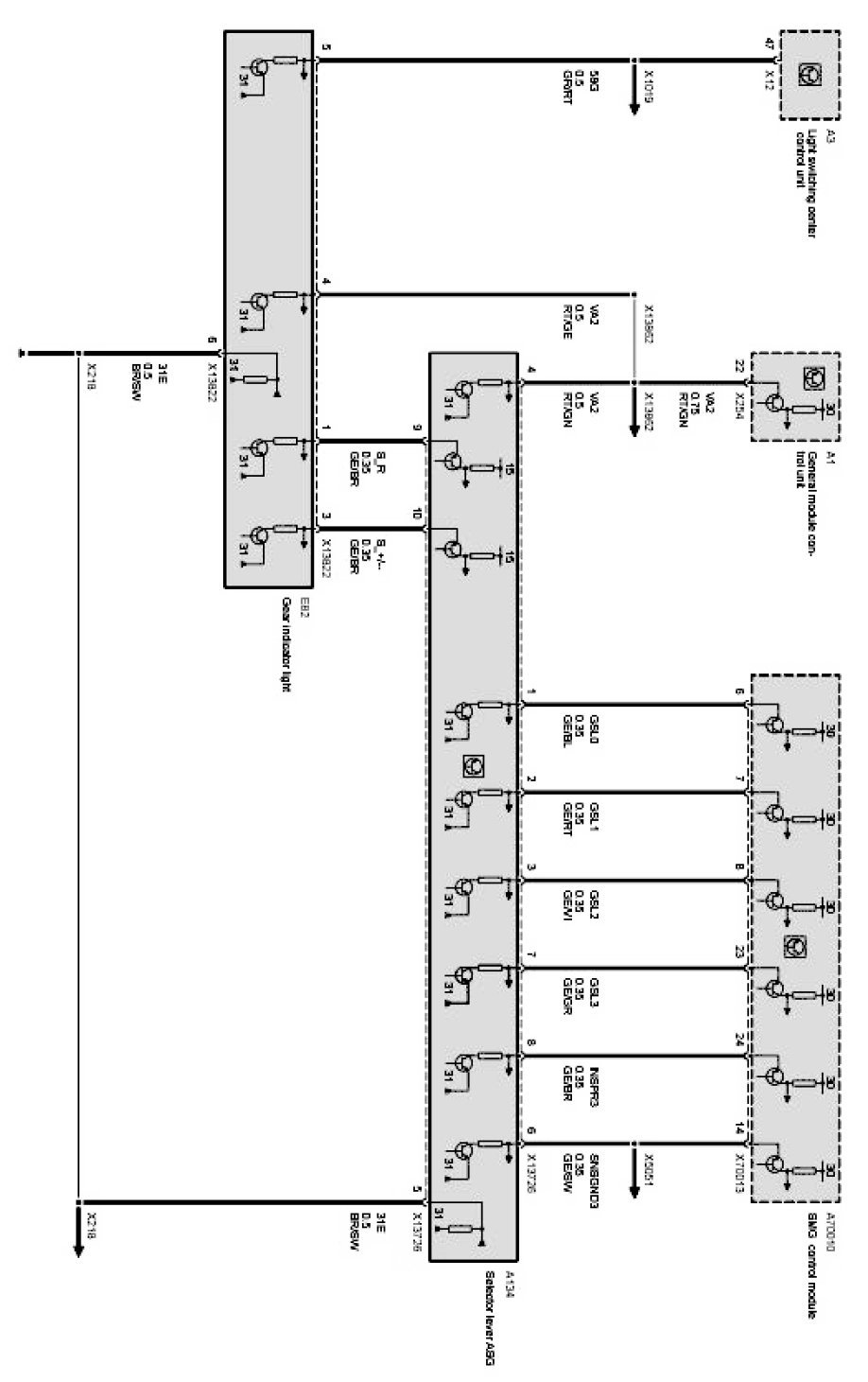

Selector Lever (As of 03/03)

Selector Lever:
