Proportional Control Valve, Gear Selection EV2

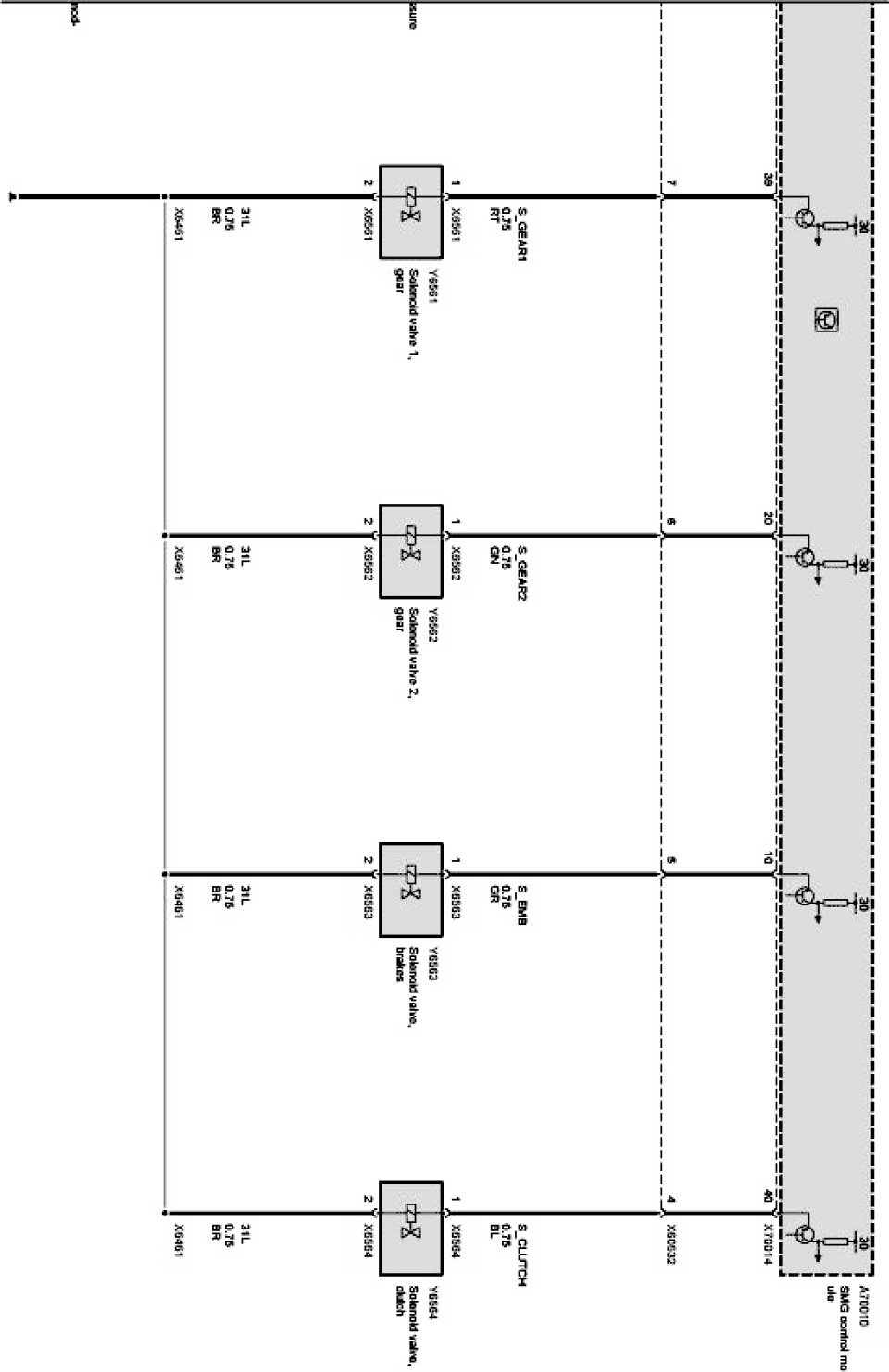

Hydraulic System SMG Part 1:



Hydraulic System SMG Part 2:
