Home >> BMW >> 2006 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Control GS8.60.0 (EGS Transmission Control 8.60.0 or EGS Transmission Control 5HP) >> Transmission Control (As of 09/99 Without DME Digital Motor Electronics MS43)

Transmission Control (As of 09/99 Without DME Digital Motor Electronics MS43)

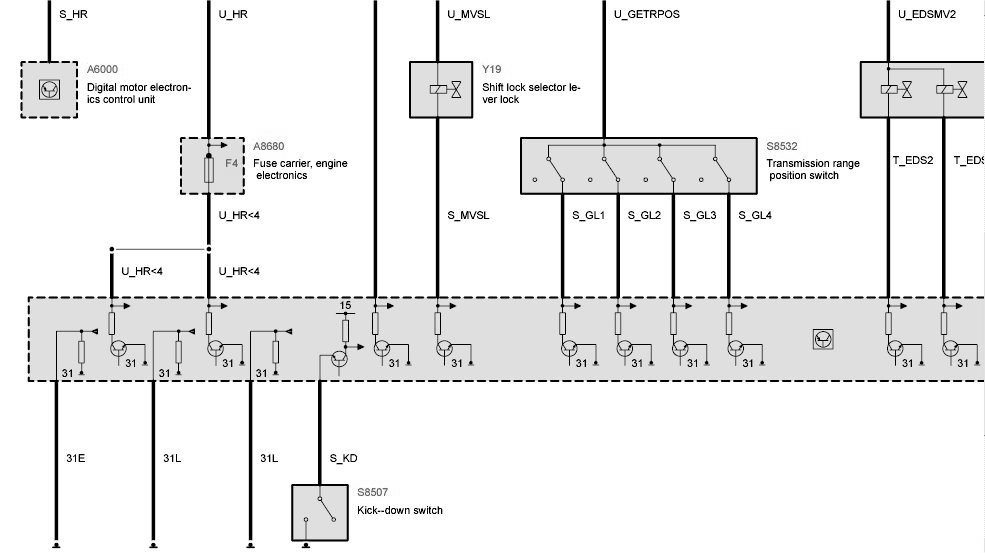

Transmission Control Part 1:

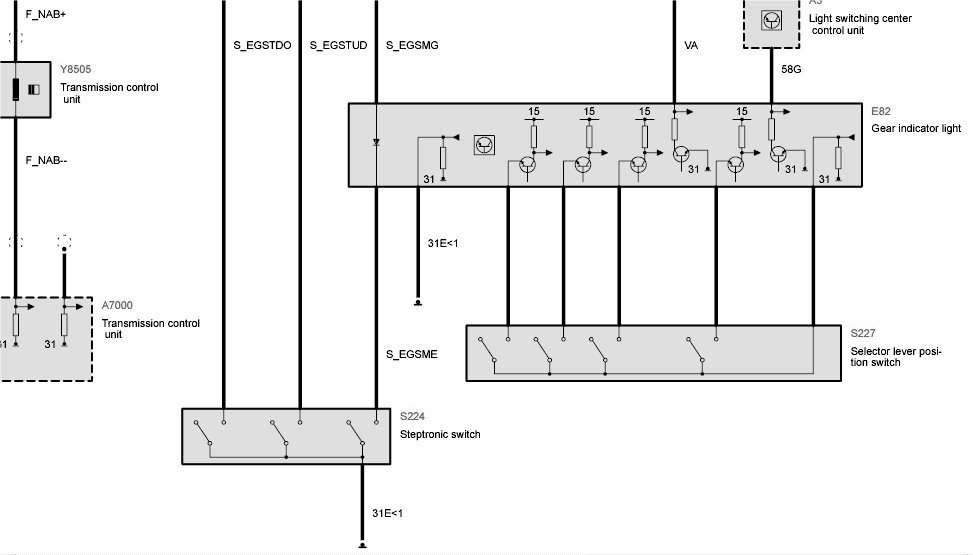

Transmission Control Part 2:

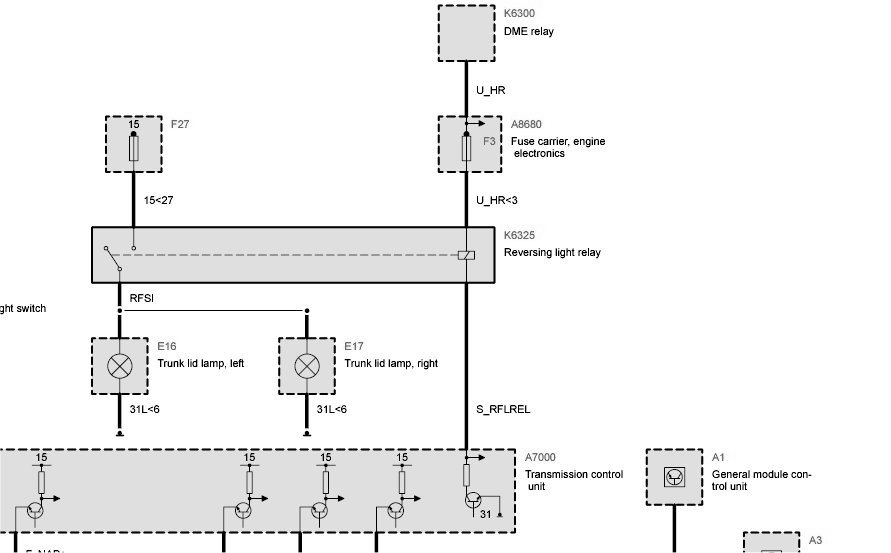

Transmission Control Part 3:

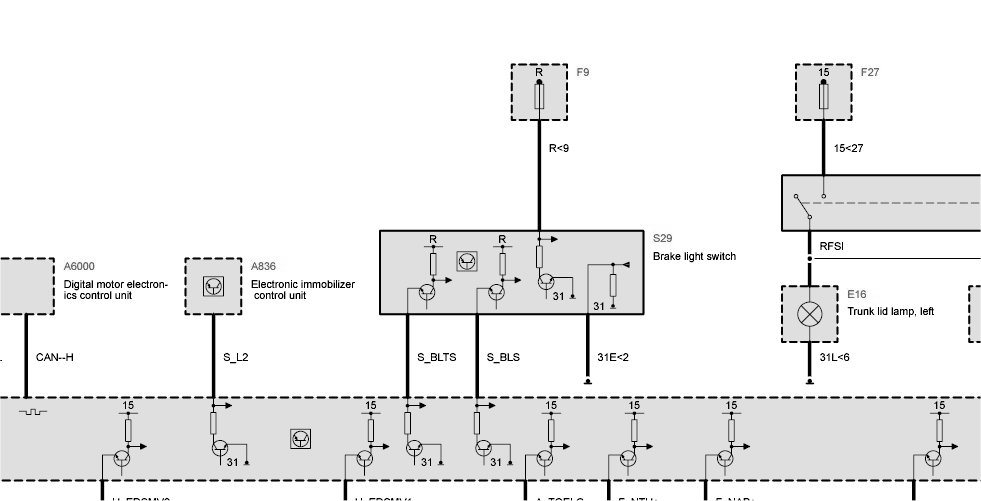

Transmission Control Part 4:

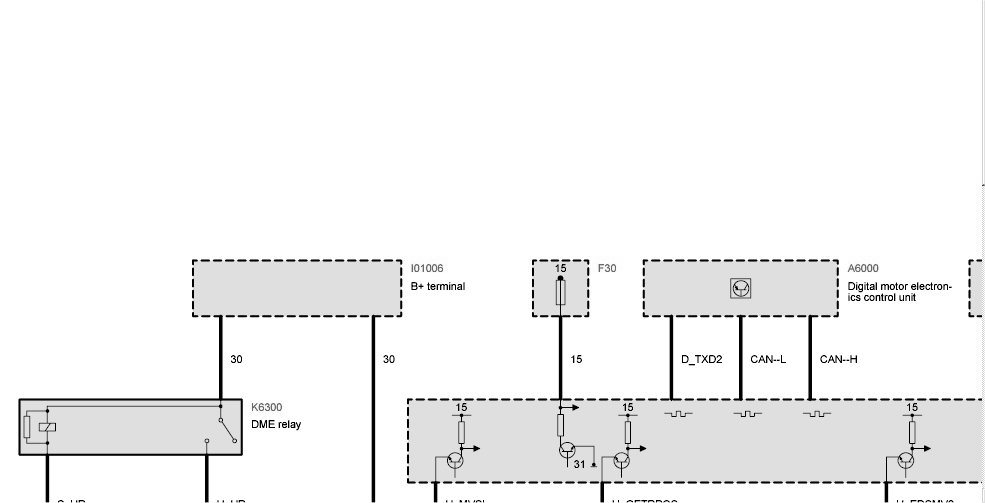

Transmission Control Part 5:



Transmission Control Part 6:
