Exhaust Emission Control / Monitoring

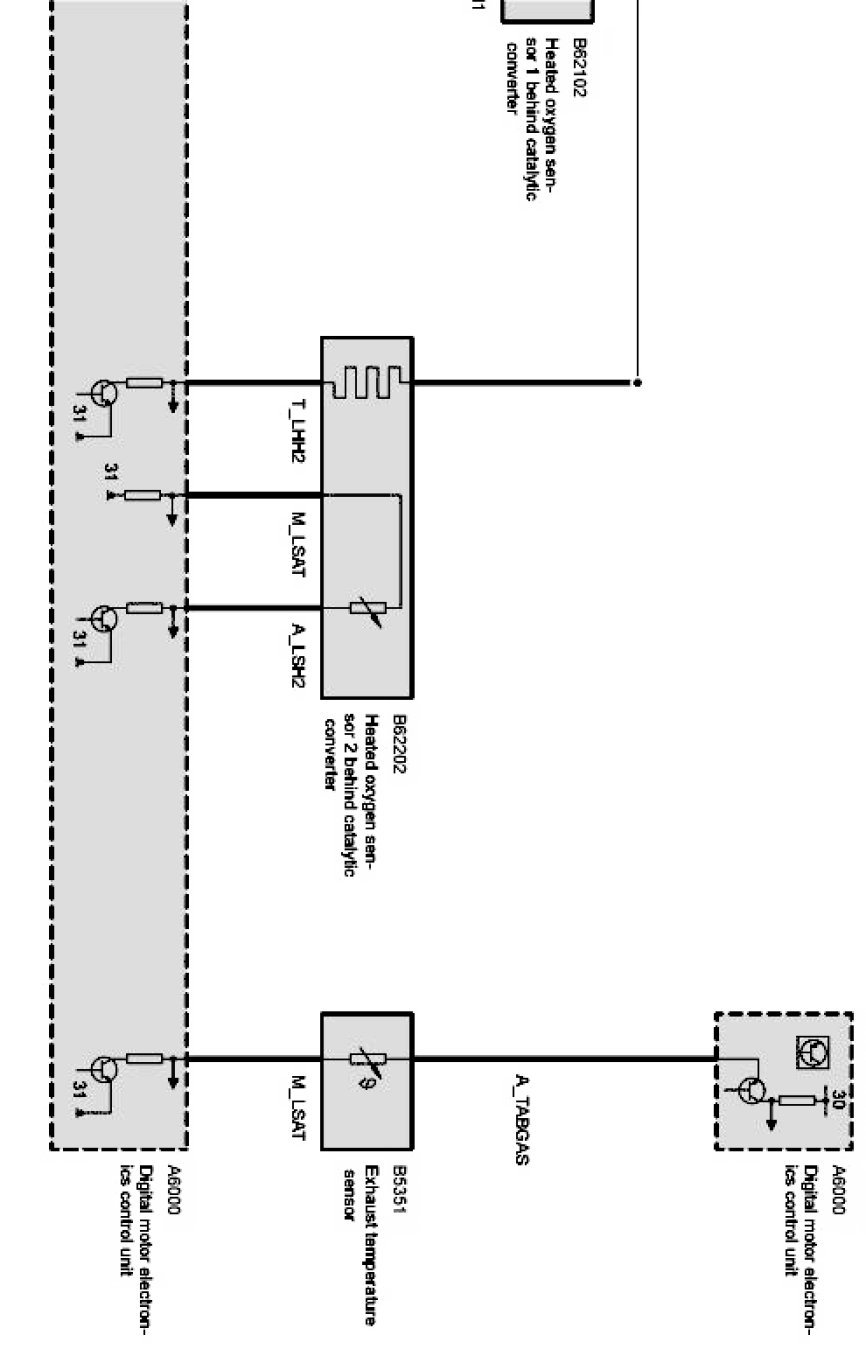

Exhaust Emission Control/monitoring Part 1:

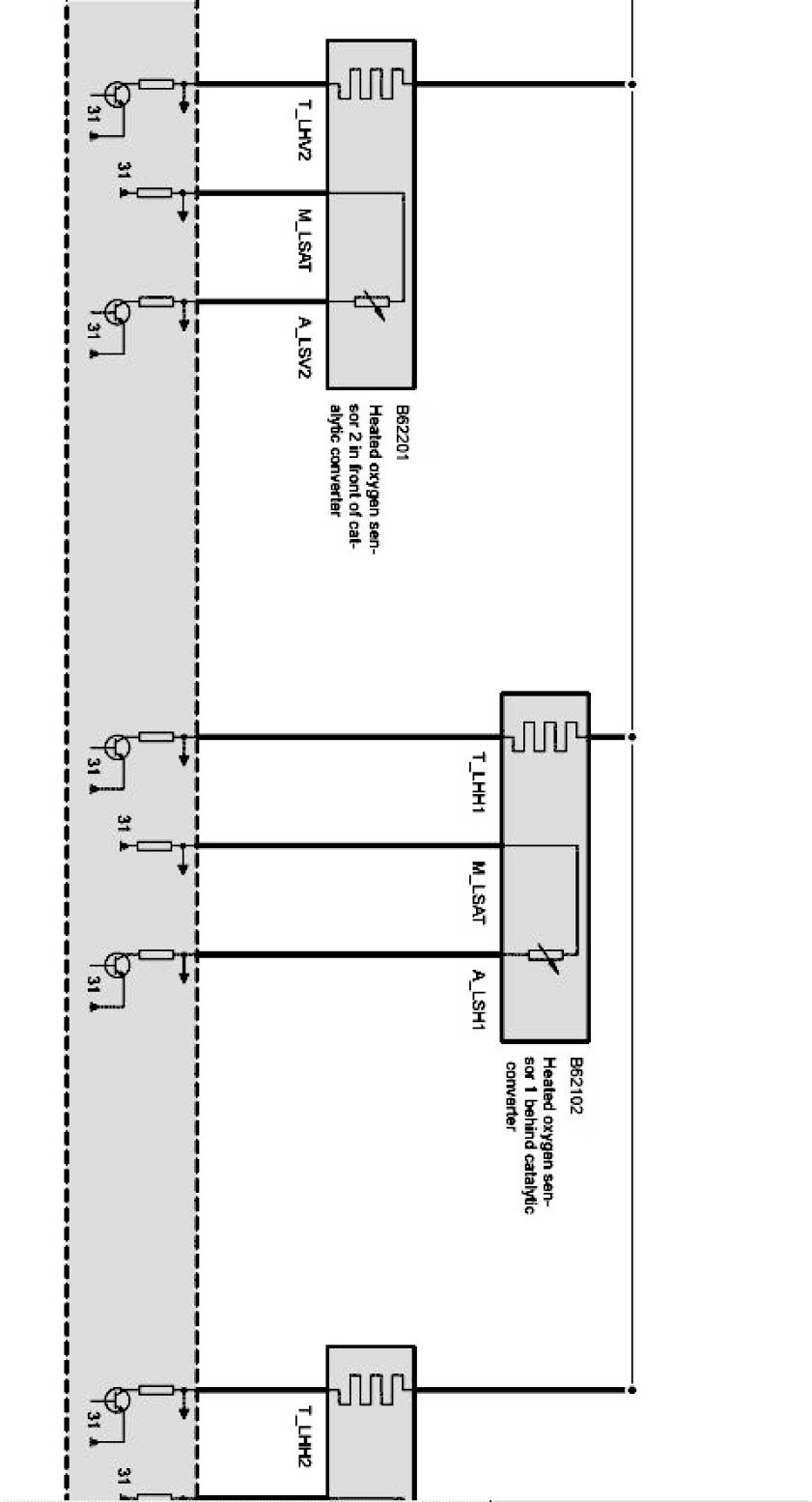

Exhaust Emission Control/monitoring Part 2:

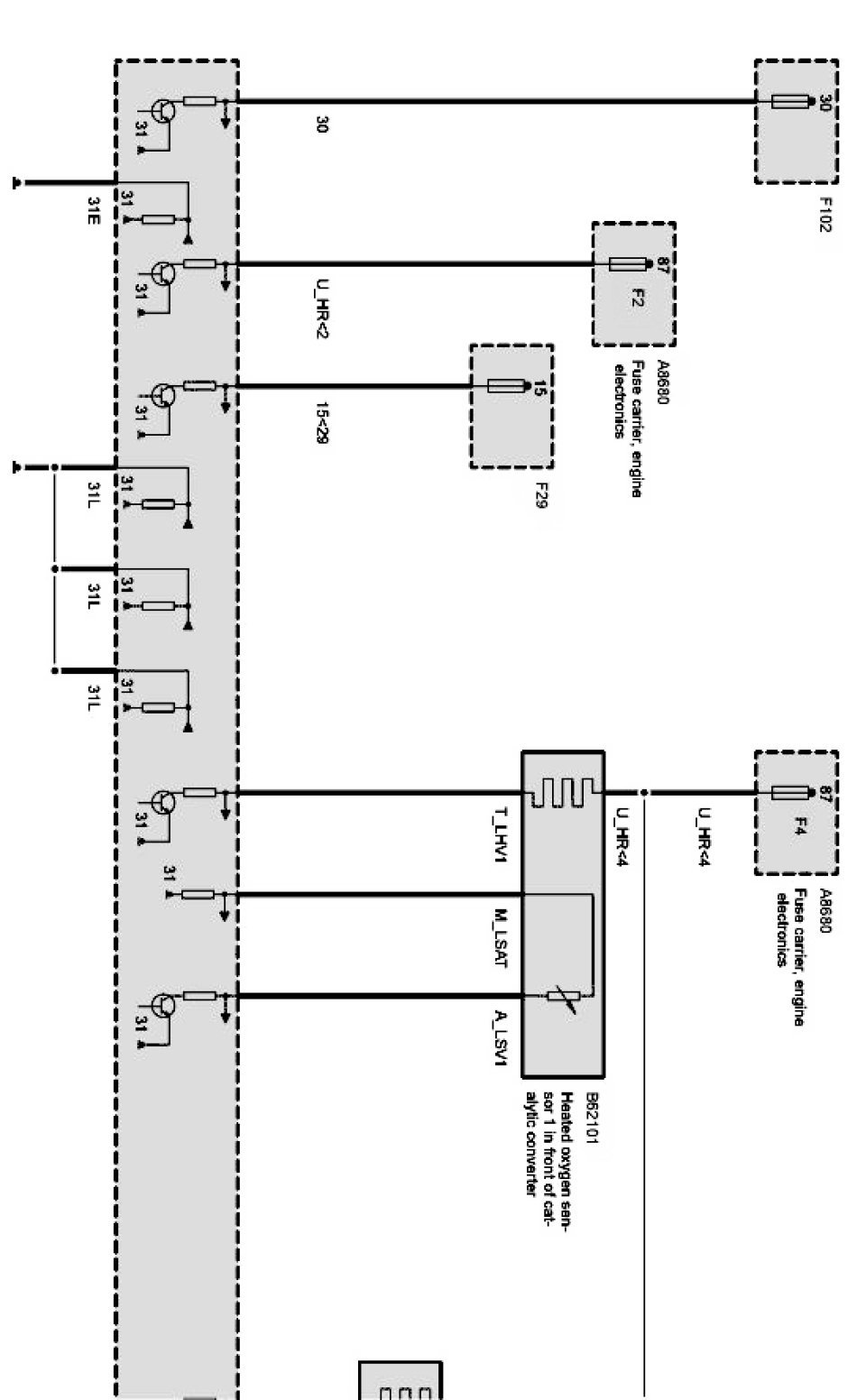

Exhaust Emission Control/monitoring Part 3:
