Engine Management, Signals / Auxiliary Signals

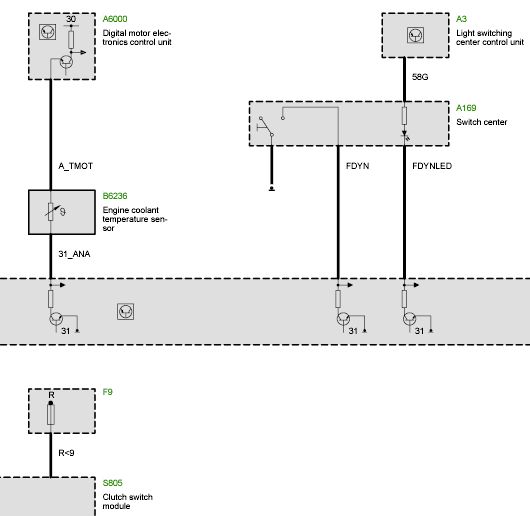

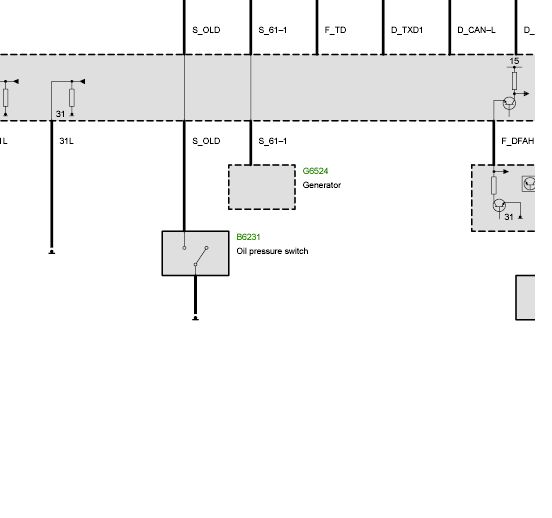

Engine management, signals/auxiliary signals Part 1:

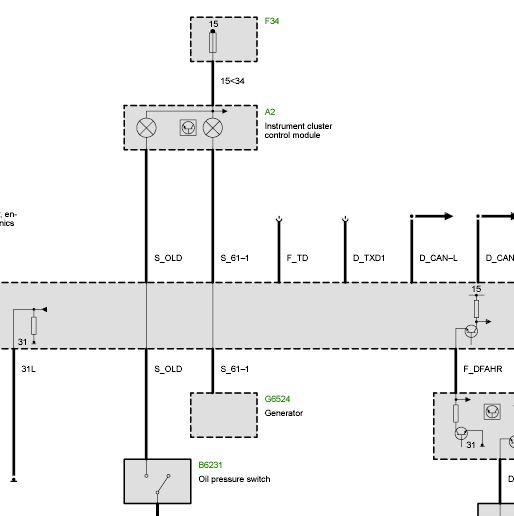

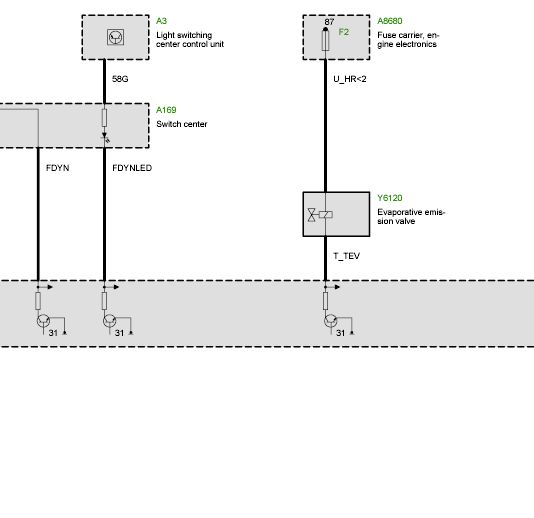

Engine management, signals/auxiliary signals Part 2:

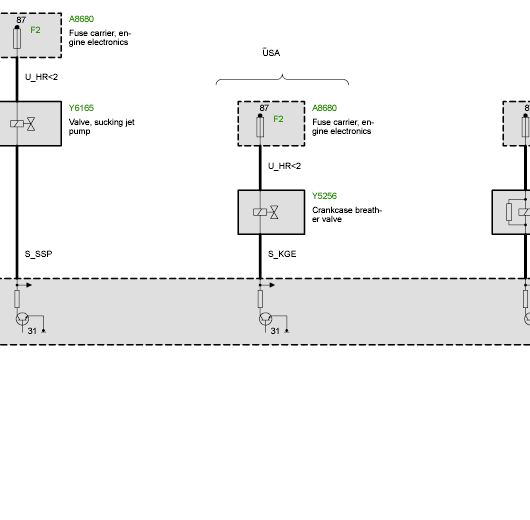

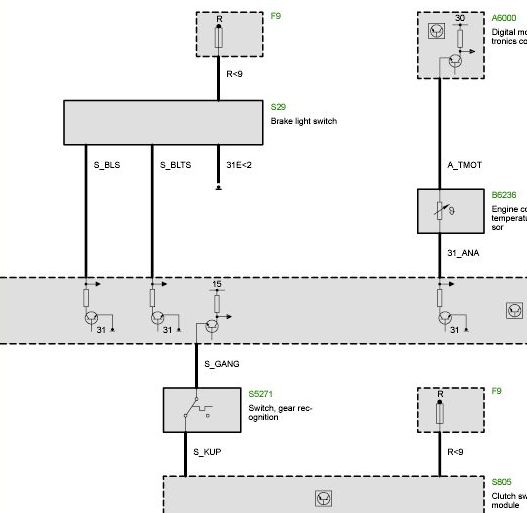

Engine management, signals/auxiliary signals Part 3:

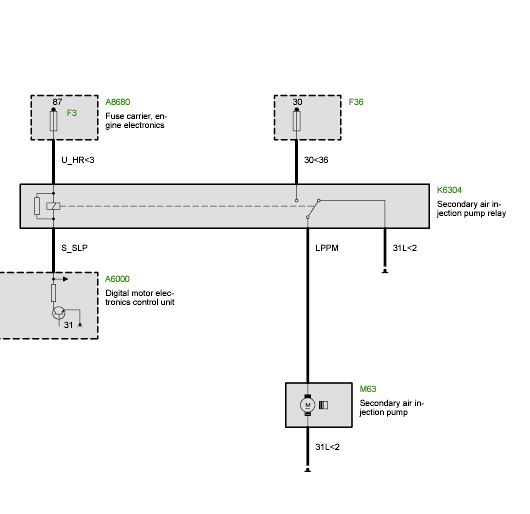

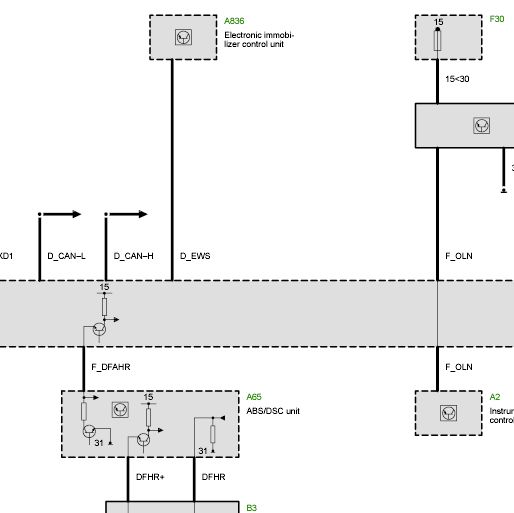

Engine management, signals/auxiliary signals Part 4:

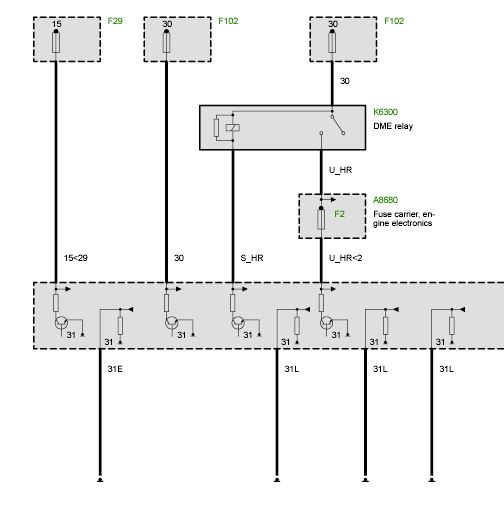

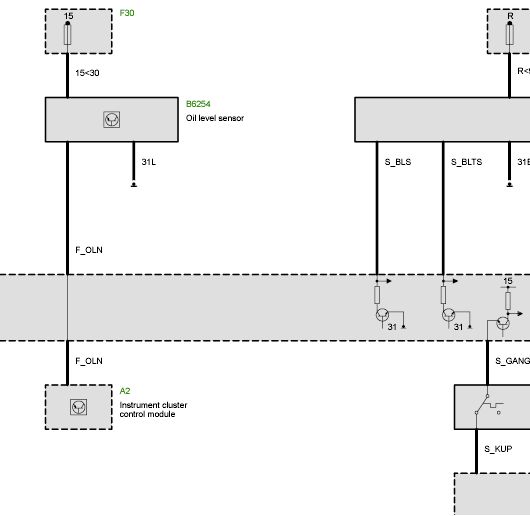

Engine management, signals/auxiliary signals Part 5:

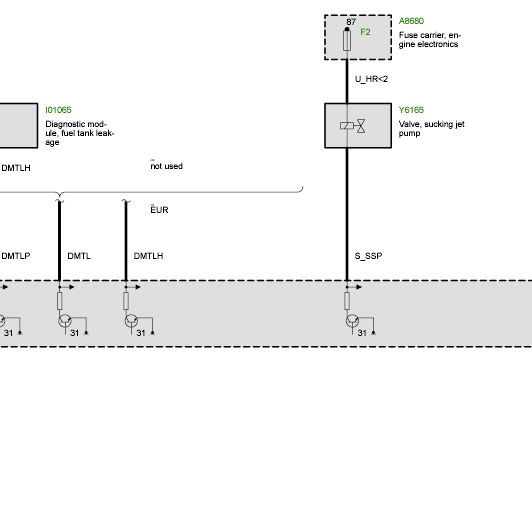

Engine management, signals/auxiliary signals Part 6:

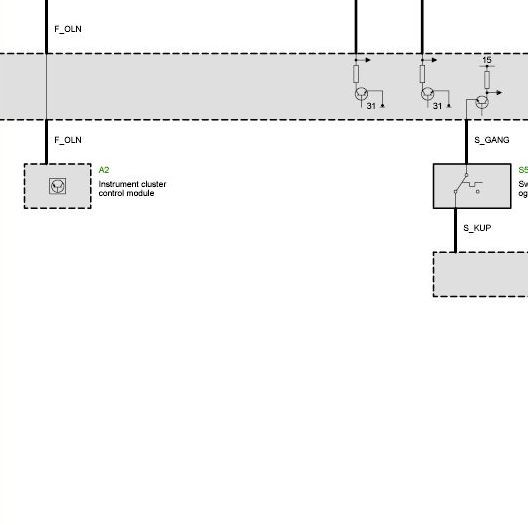

Engine management, signals/auxiliary signals Part 7:

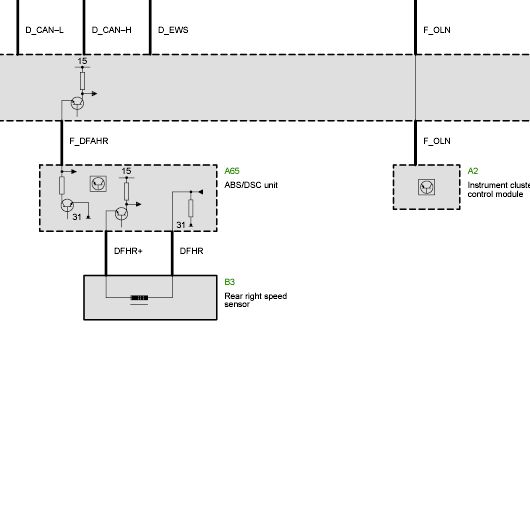

Engine management, signals/auxiliary signals Part 8:

Engine management, signals/auxiliary signals Part 9:

Engine management, signals/auxiliary signals Part 10:

Engine management, signals/auxiliary signals Part 11:

Engine management, signals/auxiliary signals Part 12:

Engine management, signals/auxiliary signals Part 13:

Engine management, signals/auxiliary signals Part 14:
